EW-DP Wireless Microphone System

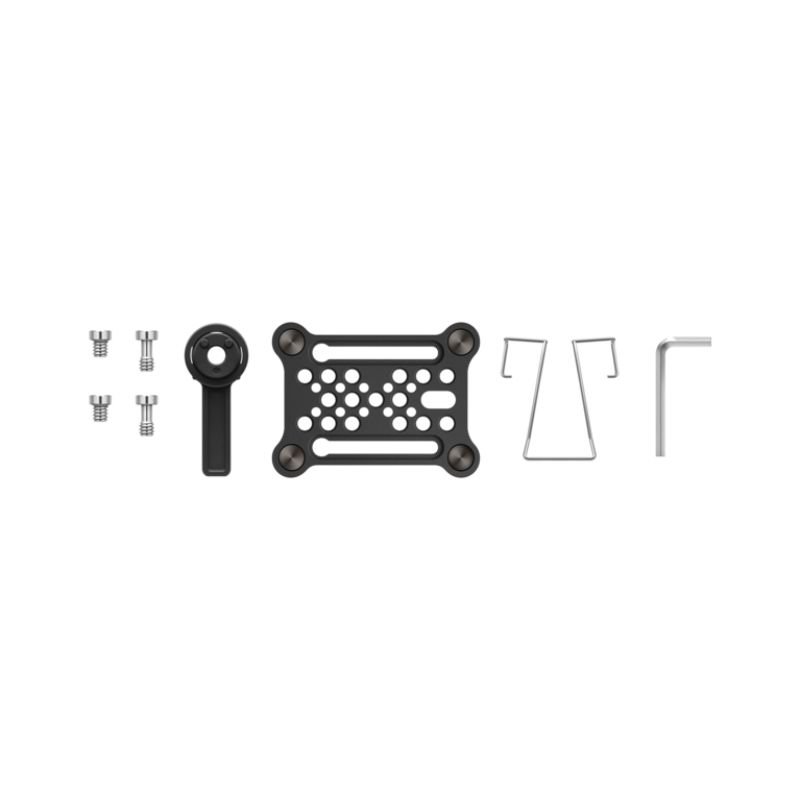

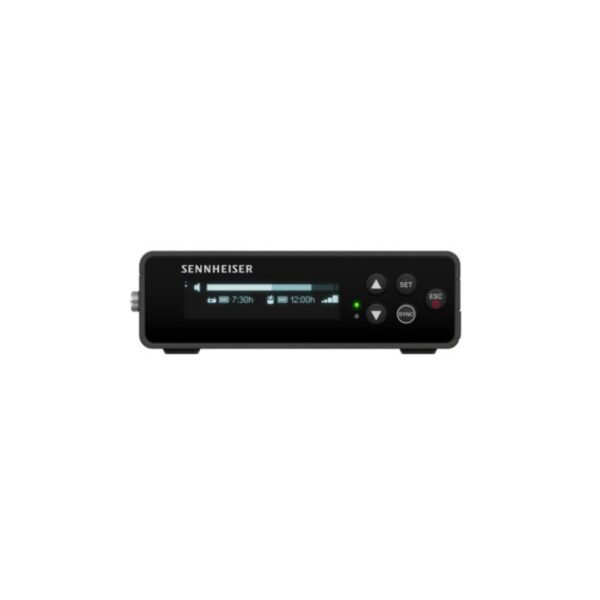

Portable agenda UHF wireless microphone arrangement with EW-DP EK agenda carriageable single-channel receiver, EW-D SK agenda bodypack transmitter, ME 2 omnidirectional lavalier, ascent kit (including cheese bowl and algid shoe), rechargeable battery, and accessories, ideal for filmmakers, agreeable creators, and broadcasters.

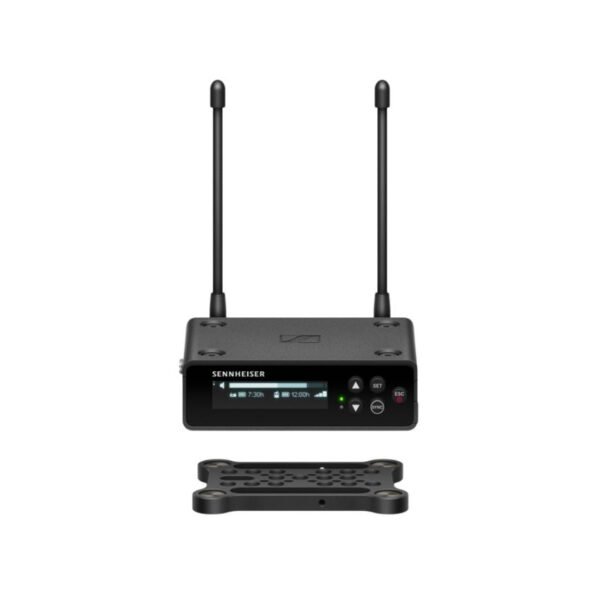

Using the abiding and reliable UHF connection, the EW-DP agenda wireless microphone arrangement gives filmmakers able affection audio after the complexity. It’s the absolute best for those attractive to advancement to a carriageable wireless arrangement that offers above ambit and added reliable connectivity than 2.4 GHz systems. Building on Sennheiser’s all-encompassing ability accumulated from decades of wireless audio excellence, EW-DP appearance an industry-leading 134 dB activating range, acceptance you to abduction detailed, realistic, and distortion-free audio. EW-DP puts time on your side. With up to 56 MHz bandwidth, it’s quick and accessible to acquisition a apple-pie and interference-free channel. The long-lasting, changeable batteries acquiesce for extended, worry-free filming sessions, and the awning shows actual operating time for accord of mind. Plus, the carefully engineered cheese bowl allows for able adapter to your camera via algid shoe or ascent bolts. And ascent the receiver to the cheese bowl takes beneath than a second. Simply abode the receiver assimilate the cheese bowl and magnets authority it deeply in place. Choose amid the ME 2 omnidirectional lavalier which delivers clear, apprehensible chat or the ME 4 cardioid lavalier which helps to abstract your accent in noisier environments.
| System | Specification | Details |
|---|---|---|
| Audio link frequency range | R1-6 | 520 – 576 MHz |
| Bluetooth® Low Energy (BLE) | Frequency range | 2402 – 2480 MHz |
| Audio frequency response | 20 Hz – 20 kHz (-3 dB) @ 3 dBfs | |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level | |
| Dynamic range | 134 dB | |
| System latency | 1.9 ms | |
| Operating temperature | -10 °C – +55 °C (14 °F – 131 °F) | |
| Relative humidity | 5 – 95 % (non-condensing) | |

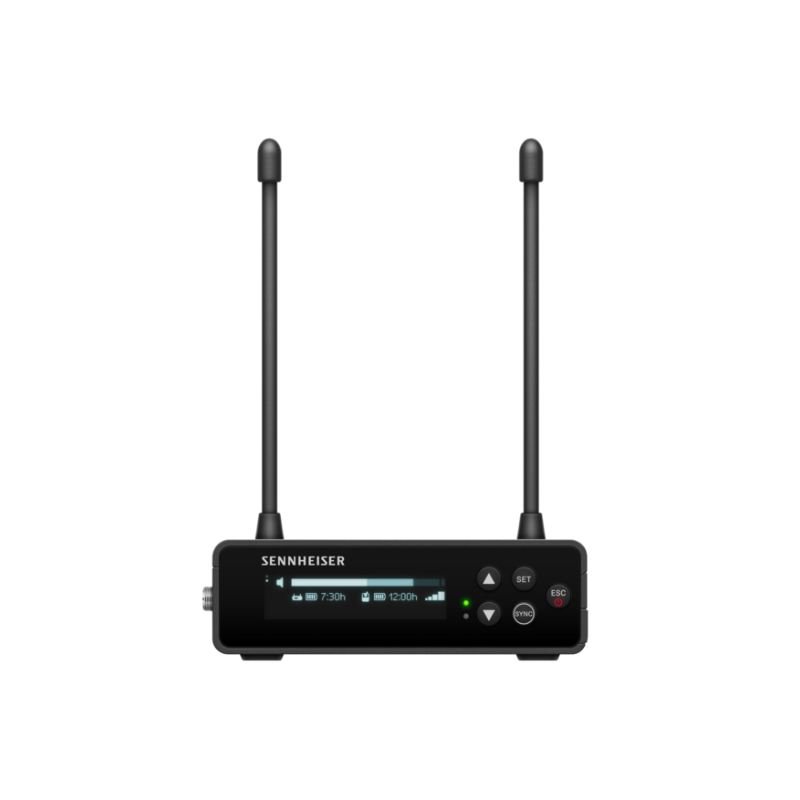

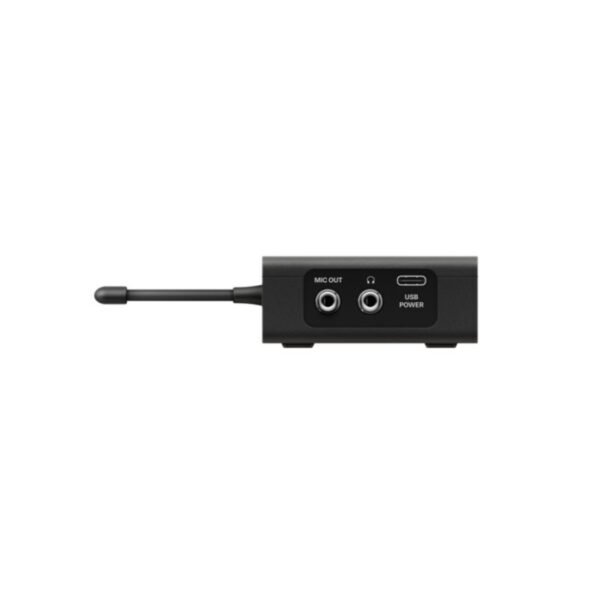

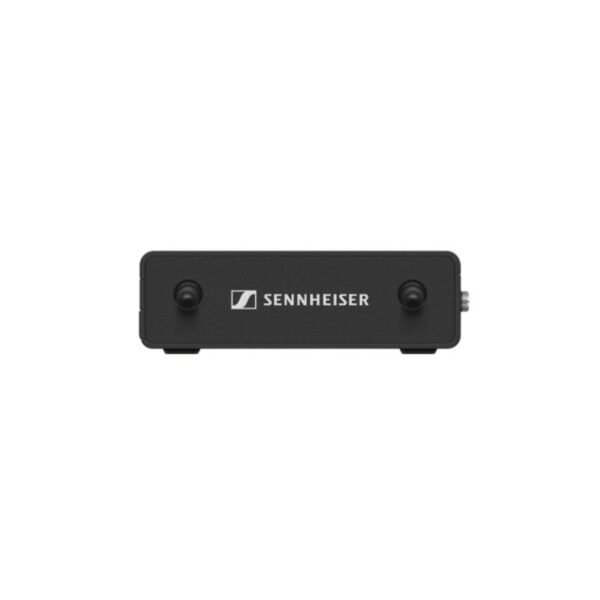

| EW-DP EK | Input voltage | ~ 1.8 – 4.35 V |
| Input current | Typ. < 250 mA / Max. < 400 mA (BA 70) | |
| Typ. < 400 mA / Max. < 750 mA (2x AA batteries) | ||
| < 300 mA @ 5 V (USB-C standalone) | ||
| Power Supply | 2x AA batteries 1.5 V or BA 70 rechargeable battery pack or USB-C PD power supply (max.): 5 V / 1500 mA 9 V / 900 mA 12 V / 700 mA |
|
| Transmit power (radiated) | BLE: max. 10 mW EIRP | |
| Audio output power | < 2 dBV max. (high level) / < 4 dBU max (high level) | |
| Headphone Output | < 50 mW into 16 Ohms | |
| Dimensions | 86 x 67 x 28 mm (3.39″ x 2.64″ x 1.1″) | |
| Weight | approx. 140g (0.31 lbs) | |
| EW-DP SKP | Input voltage | ~ 2.0 – 4.35 V |
| Input current | < 300 mA (without record and P48) | |
| Power Supply | 2x AA batteries 1.5 V or BA 70 rechargeable battery pack | |
| Transmit power | Audio link: 10 mW ERP | |
| BLE: max. 10 mW EIRP | ||
| Audio output power | < 2 dBV max. (high level) / < 4 dBU max (high level) | |
| Output power XLR | max. 10 mA | |
| Dimensions | 108 x 42 mm | |
| Weight | ca. 163 g (0.36 lbs) | |

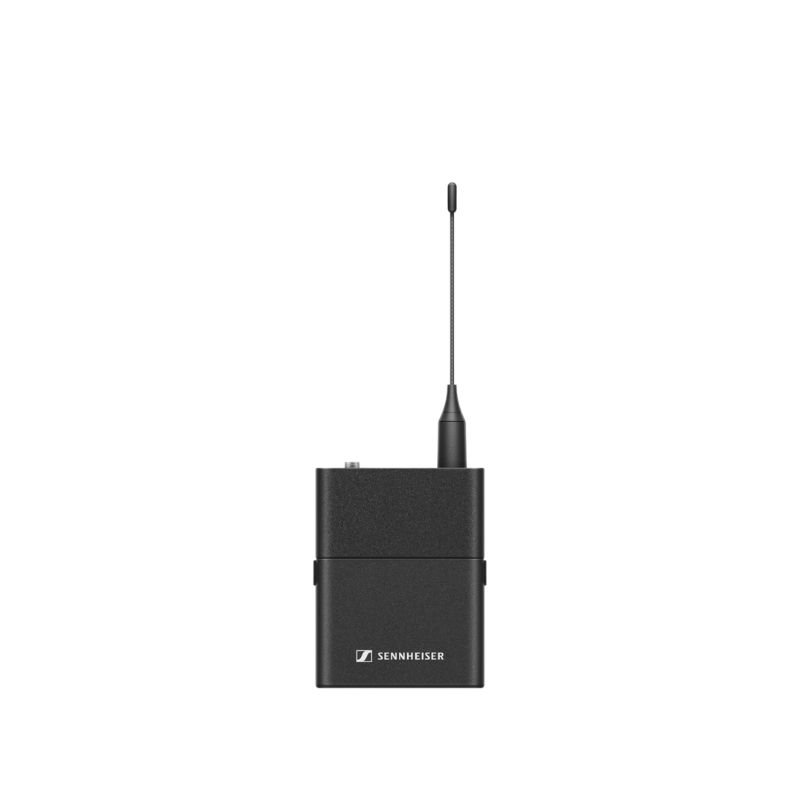

| EW-D SK (Bodypack Transmitter) | Input voltage | 2.0 – 4.35 V |
| Input current | < 300 mA | |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack | |
| Occupied bandwidth | 200 kHz | |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) | |
| BLE: max. 10 mW EIRP | ||
| Dimensions (without antenna) | 63 x 80 x 20 mm (2.48″ x 3.15″ x 0.79″) | |
| Weight | approx. 120 g (0.26 lbs) | |
| ME 2 (Lavalier Microphone) | Transducer principle | Pre-polarized condenser microphone |
| Pick-up pattern | Omni-directional | |
| Sensitivity (free field, no load) (1 kHz) | 17 mV/Pa | |
| Max. SPL at 1 kHz | 130 dB | |
| Frequency response | 50 to 18,000 Hz | |
| Equivalent noise level (A-weighted) | 32 dB | |
| Connector | 3.5 mm jack | |
| Cable length | Approx. 1.60 m (62.99″) | |
| Supply voltage | 7.5 V | |
| ME 4 (Lavalier Microphone) | Transducer principle | Pre-polarized condenser microphone |
| Pick-up pattern | Cardioid | |
| Sensitivity (free field, no load) (1 kHz) | 40 mV/Pa | |
| Max. SPL at 1 kHz | 120 dB | |
| Frequency response | 50 to 18,000 Hz | |
| Equivalent noise level (A-weighted) | 31 dB | |
| Connector | 3.5 mm jack | |
| Cable length | Approx. 1.60 m (62.99″) | |
| Supply voltage | 7.5 V | |

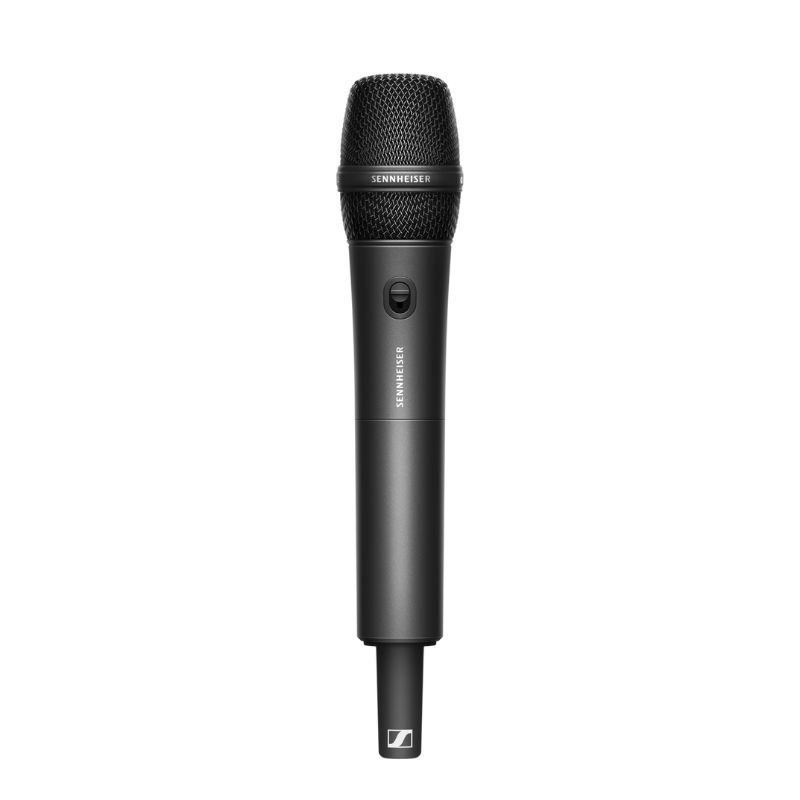

| EW-D SKM-S (Handheld Transmitter) | Input voltage | 2.0 – 4.35 V |
| Input current | < 300 mA | |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack | |
| Occupied bandwidth | 200 kHz | |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) | |
| BLE: max. 10 mW EIRP | ||
| Dimensions (ø x l) (incl. MMD 835 microphone module) | 50 x 268 mm (1.97″ x 10.55″) | |
| Dimensions (without microphone module) | 40 x 200 mm (1.57″ x 7.87″) | |
| Weight (without batteries, incl. MMD 835 microphone module) | approx. 304 g (0.67 lbs) | |
| Weight (without microphone module) | approx. 195 g (0.43 lbs) | |
| MMD 835 (Microphone Module) | Transducer principle | Dynamic |
| Sensitivity | 2.1 mV/Pa | |
| Sound pressure level | 154 dB SPL | |
| Pick-up pattern | Cardioid |
Additional information
| Kit Type | ENG SET, Handheld Set, ME 2 Set, ME 4 Set |
|---|
