Sony Uwp-d21
Sony Uwp-d21 Microphone
Sony Uwp-d21 Wireless Microphone
Sony Uwp-d21 Bodypack Wireless Microphone
Sony Uwp-d21 Bodypack Wireless Microphone Package
SONY UWP-D21
SONY UWP-D21 microphone
SONY UWP-D21 Wireless Microphone
SONY UWP-D21 Bodypack Wireless Microphone
SONY UWP-D21 Bodypack Wireless Microphone Package

SONY UWP-D21 Bodypack Wireless Microphone Package

0 out of 5
( There are no reviews yet. )

2.199,00 AED ex. VAT
2.308,95 AED inc. VAT

  • Bodypack wireless microphone package with UTX-B40 transmitter and URX-P40 receiver
  • Includes ECM-V1BMP omni-directional lavalier microphone and accessories
  • Sony digital audio processing with true double tuner diversity
  • NFC SYNC enables quick and secure channel setting
  • Compact, lightweight design for ENG, EFP, documentaries, weddings, and remote production
SKU: UWP-D21 Categories: , , Tag: Brand: Sony
International Orders: Shipping cost depends on your country and order weight. Please contact us to complete your order.

This Product For Pre Order Only, Delivery Time 3-4 Weeks

Related Products

Description

UWP-D21 Wireless Microphone

High-Quality Digital Audio

The UWP-D21 combines Sony digital audio processing with reliable RF transmission and true double tuner diversity reception. Its digital processing technology improves transient response performance for high-quality sound. The system suits ENG, EFP, documentaries, weddings, and remote production.

Fast Frequency Setup

NFC SYNC makes channel setup quick, easy, and secure between the transmitter and receiver. The receiver also supports IR sync capability with the UTX-B40 transmitter from URX-P03, URX-P03D, and URXS03D receivers. Channel memory helps you switch quickly between receiver frequencies when using two transmitters. The transmitter can also send its frequency to the receiver for matching multiple receivers to one transmitter.

Reliable Wireless Operation

True double tuner diversity helps maintain stable signal reception. Auto gain mode provides volume control, while the +15 dB gain volume boost mode supports off-mic audio. The system also includes a line input, variable muting, receiver output level control, headphone output for monitoring, and a monitor mode for using the receiver as an ear monitor.

Camera Integration

With the optional SMAD-P5 Multi Interface MI Shoe adapter, compatible Sony camcorders and Alpha interchangeable lens cameras can receive digital audio directly. This setup bypasses A/D and D/A conversion stages. Compatible camcorders can also display RF level, audio mute status, and transmitter low battery information in the viewfinder. The receiver can receive power from the camera, with synchronized power on/off for improved power management.

Compact Package

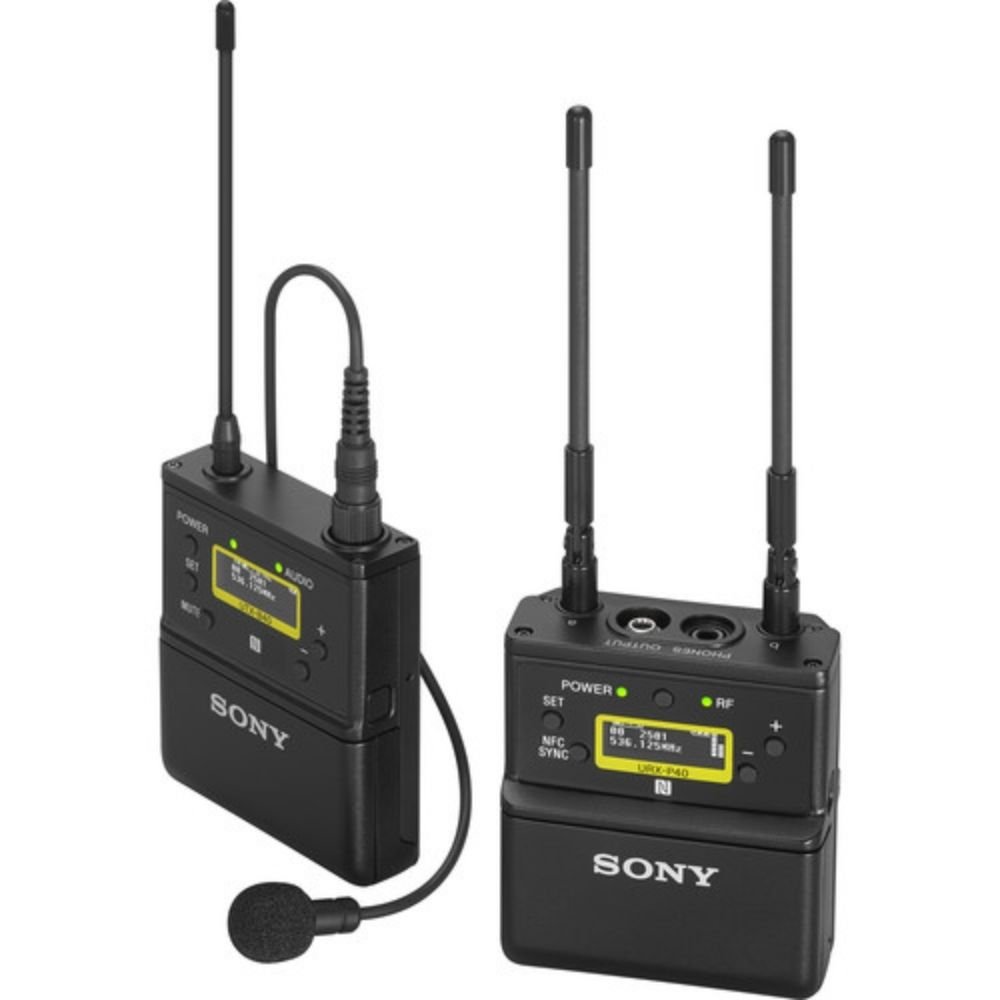

The UWP-D21 package includes the UTX-B40 body pack transmitter, URX-P40 receiver, ECM-V1BMP omni-directional lavalier microphone, and accessories. Its reduced size and weight support mobility, while the receiver’s compact design works well with small camcorders and interchangeable lens digital cameras. The receiver features a high-visibility OLED display for indoor and outdoor use and a USB connector for power supply. The system is compatible with Sony WL-800, UWP, and UWP-D series.

Key Features:

  • Sony digital audio processing
  • True double tuner diversity reception
  • NFC SYNC for quick channel setting
  • Auto gain mode volume control
  • +15 dB gain boost mode
  • Headphone output and monitor mode
  • High-visibility OLED display

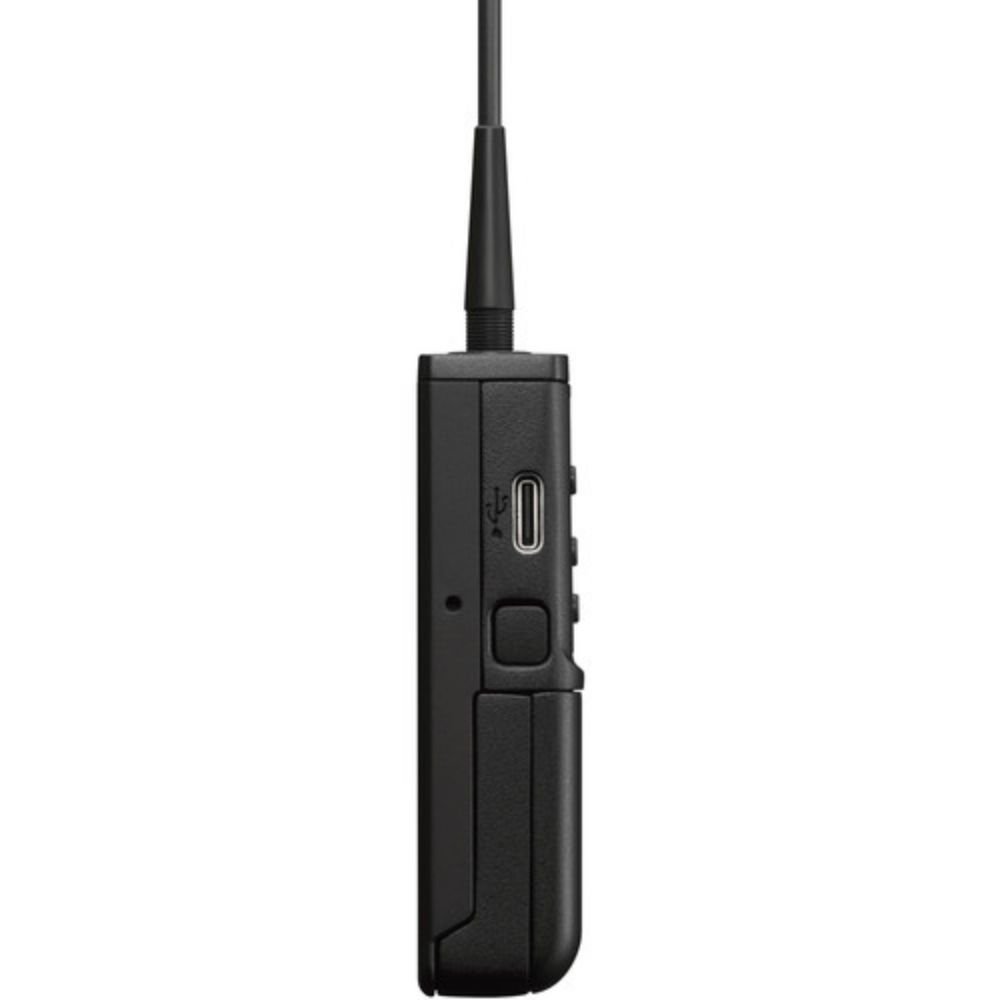

  • USB power supply connector

Technical Specifications
General & System
Oscillator Type• URX-P40 Portable Receiver: Crystal-controlled PLL synthesizer
• UTX-B40 Bodypack Transmitter: Crystal-controlled PLL synthesizer
Reception TypeTrue diversity method (URX-P40)
Antenna Type• URX-P40 Portable Receiver: 1/4 λ wavelength wire antenna (angleadjustable)
• UTX-B40 Bodypack Transmitter: 1/4 λ wave length wire antenna
Carrier Frequencies14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ : 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz
Transmitter Section (UTX-B40)
RF Output Power30 mW/5 mW selectable (UC, U, CE, LA, CN models), 10 mW/2 mW selectable (J, E, KR models)
Capsule Type & DirectivityElect retcondenser | Omni-directional
Input Connector3.5 mm diameter 3-pole locking mini jack
Reference Audio Input Level–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation), +4 dBu (LINE input)
Audio Attenuator Adjustment Range0 dB to 27 dB (3 dB steps)
Receiver Audio Output (URX-P40)
Audio Output Connector3.5 mm diameter 3-pole locking mini jack, external connection
Audio Output Level–60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level), –20 dBFS (external connection, digital output, 0 dB audio output level), –50 dBFS (external connection, analog output, 0 dB audio output level)
Analog Audio Output Adjustment Range-12dB – +12dB (3dB step)

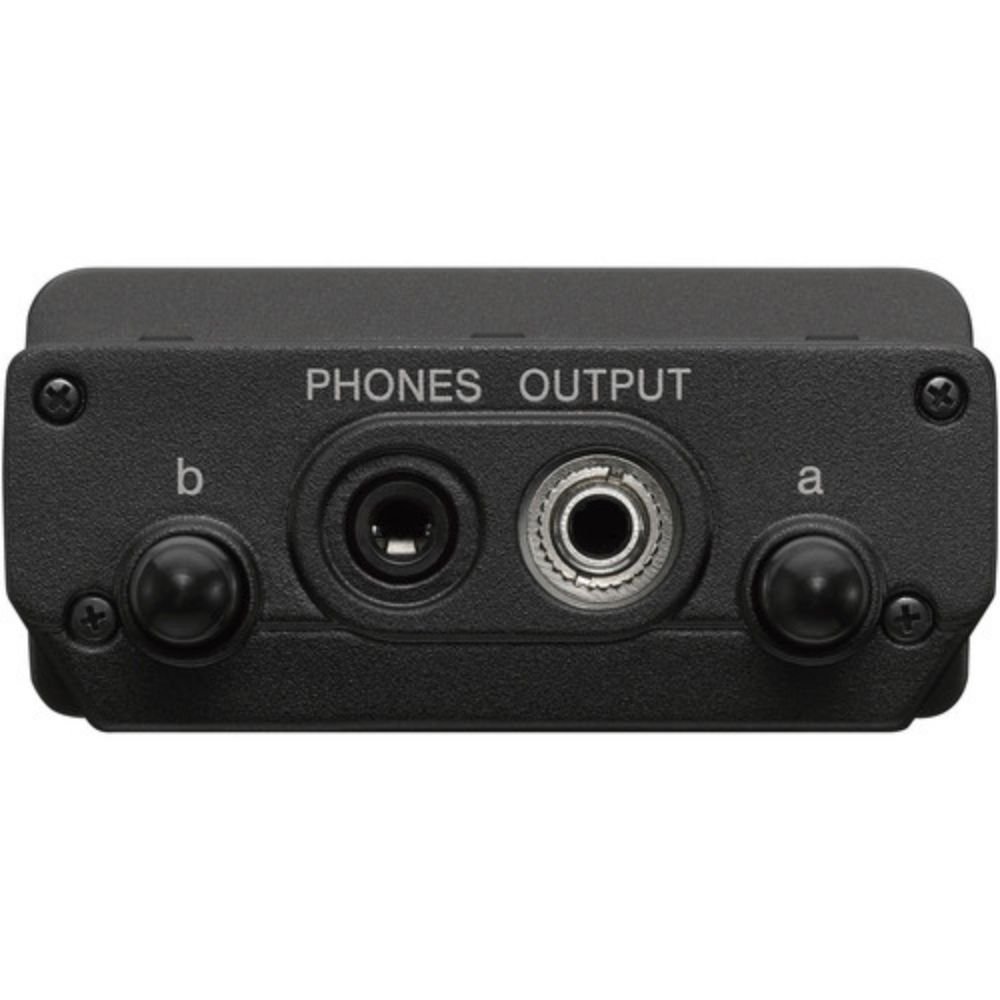

Headphone Output3.5 mm diameter mini jack | Level: Max. 10mW (16-ohm)
Performance & Audio
Frequency Response23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (typical) (J model)
Signal-to-Noise Ratio• URX-P40: 60 dB (1 kHz sine wave, 5 kHz modulation)
• UTX-B40: 60 dB (–60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)
Distortion (T.H.D)• URX-P40: 0.9% or less (1 kHz sine wave, 5 kHz modulation)
• UTX-B40: 0.9% or less (–60 dBV, 1 kHz input)
Audio Delay• URX-P40: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)
• UTX-B40: Approx. 0.35 ms
Tone Signal FrequencyIn UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz
Display & Power
DisplayOLED
Power RequirementsDC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)
Battery Life• URX-P40: Approx. six hours (measured with two LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF)
• UTX-B40: Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models), Approx. 10 hours with output power of 10 mW (J, E, KR models) (measured with two LR6/AA size alkaline batteries at 25 °C (77 °F))
Operating & Physical
Operating Temperature0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature–20 °C to +55 °C (–4 °F to +131 °F)
Dimensions (W / H / D)• URX-P40: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (excluding antenna)
• UTX-B40: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (excluding antenna)
Mass• URX-P40: Approx. 131 g (4.6 oz) (excluding batteries)
• UTX-B40: Approx. 83 g (2.9 oz) (excluding batteries)

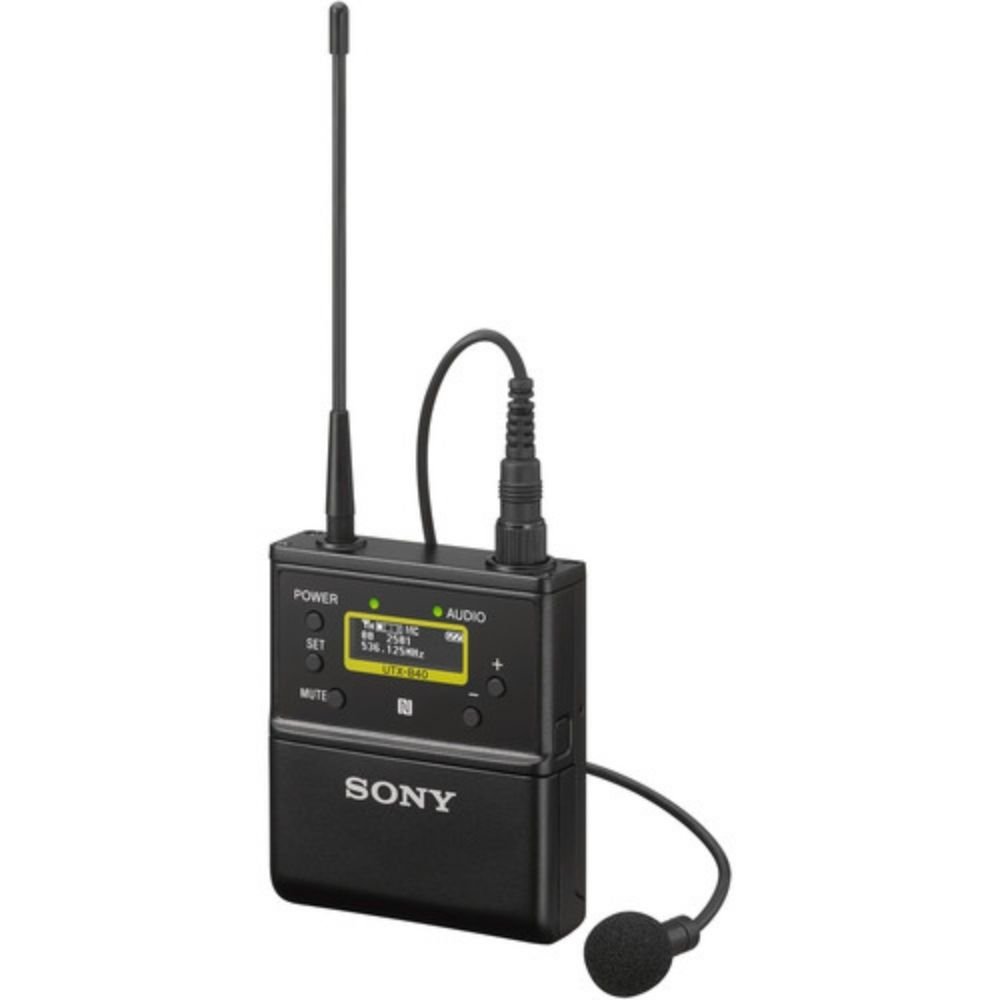

  • UTX-B40 UWP-D bodypack transmitter

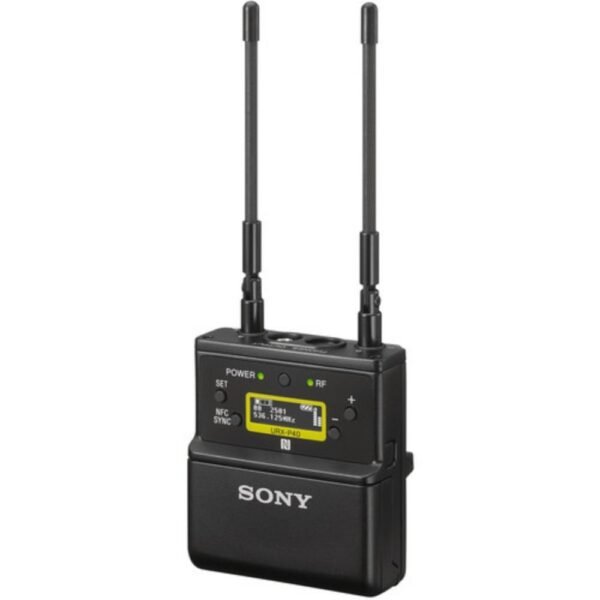

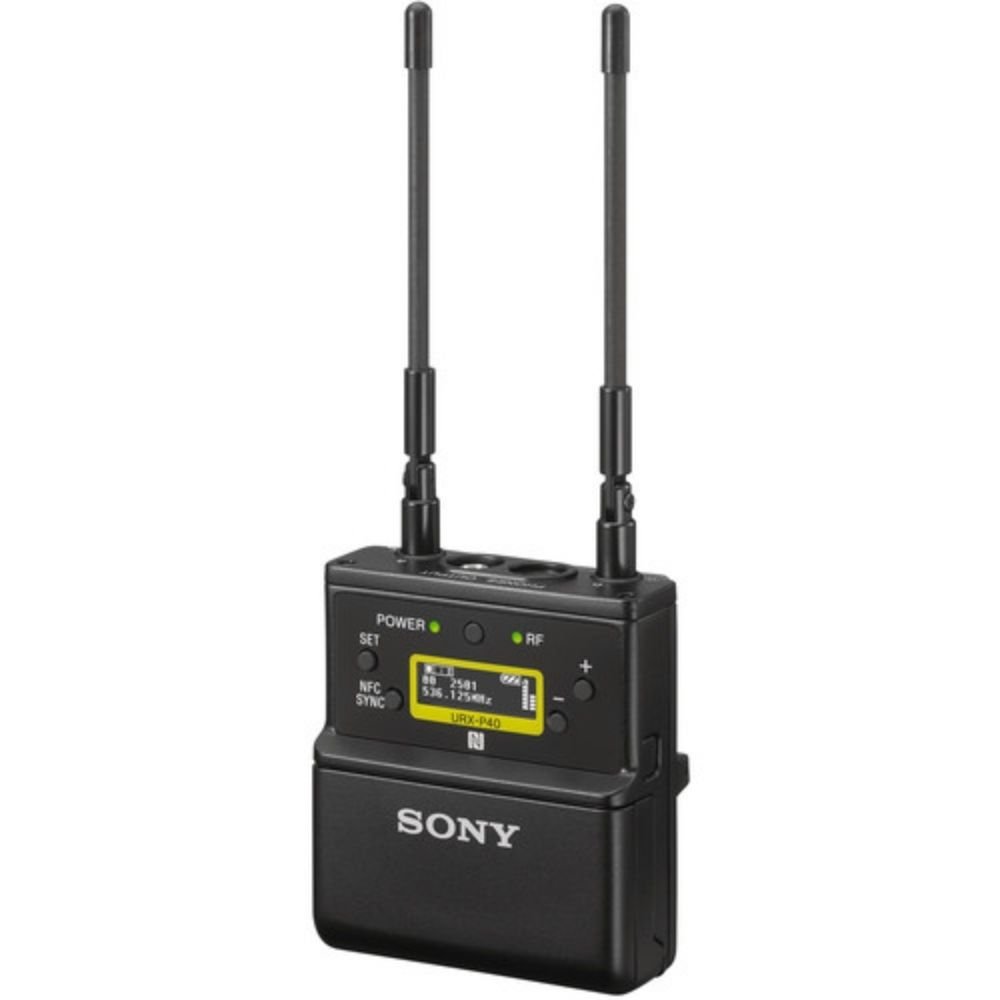

  • URX-P40 UWP-D portable receiver
  • ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
  • Windscreen
  • Mic Clip
  • 2X Belt Clip
  • SMAD-P4 shoemount adapter
  • 3.5mm to 3.5mm Output Cable
  • 3.5mm to XLR-M Output Cable
