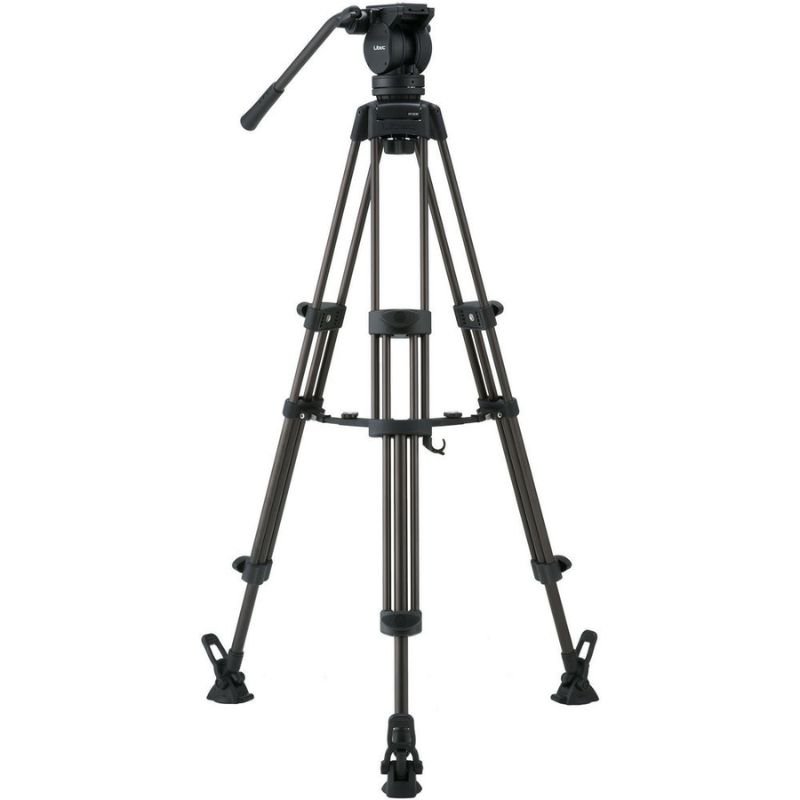

LX5R Tripod System

The LX5R delivers a 5kg / 11lb payload with strong rigidity and smooth torque performance. It uses a fixed counterbalance and fixed drag mode. The 75mm ball head base and 75mm bowl provide a secure tripod connection.

Flexible Positioning

The fluid head supports a tilt range from +90° to -80°. Its sliding camera plate offers +/-40mm / +/-1.6″ of adjustment. The plate uses a 1/4″ screw with a video pin. A bubble level helps with setup and alignment.

Ground or Mid-Level Spreader

The LX5R is available with either a ground spreader or a mid-level spreader. The 2-stage tripod adjusts from 56 to 166cm / 22 to 65.5″. It includes a carrying handle and three sets of 1/4″ and 3/8″ screw holes for tripod accessories.

Built for Wide Conditions

The system operates across a temperature range of -20°C to +60°C / -4°F to +140°F. The complete system weighs 5.6kg / 12.4lb. No spare screw is included.

Key Features

• 5kg / 11lb payload
• Fixed counterbalance and drag mode
• +90° to -80° tilt range
• 75mm ball and bowl system
• +/-40mm / +/-1.6″ sliding plate range
• 56 to 166cm / 22 to 65.5″ height range
• Available with ground or mid-level spreader
• 3 sets of 1/4″ and 3/8″ tripod accessory screw holes
