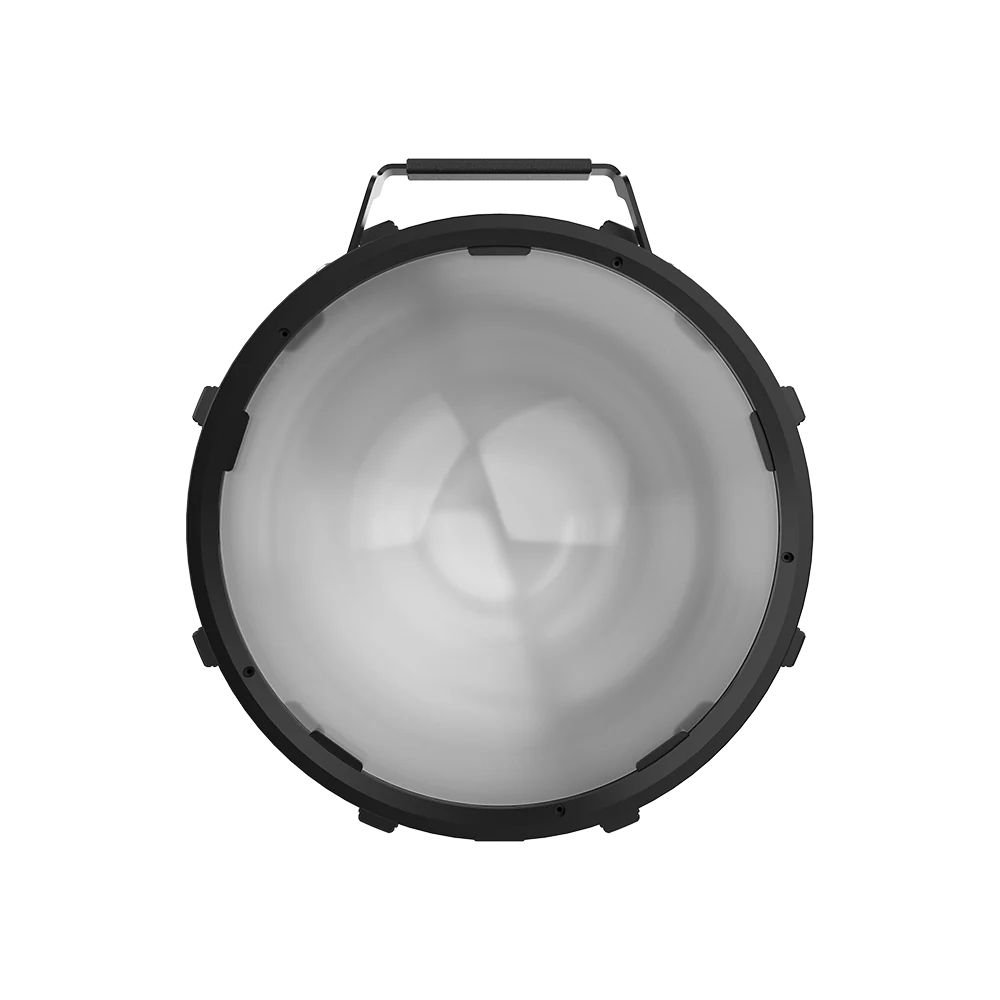

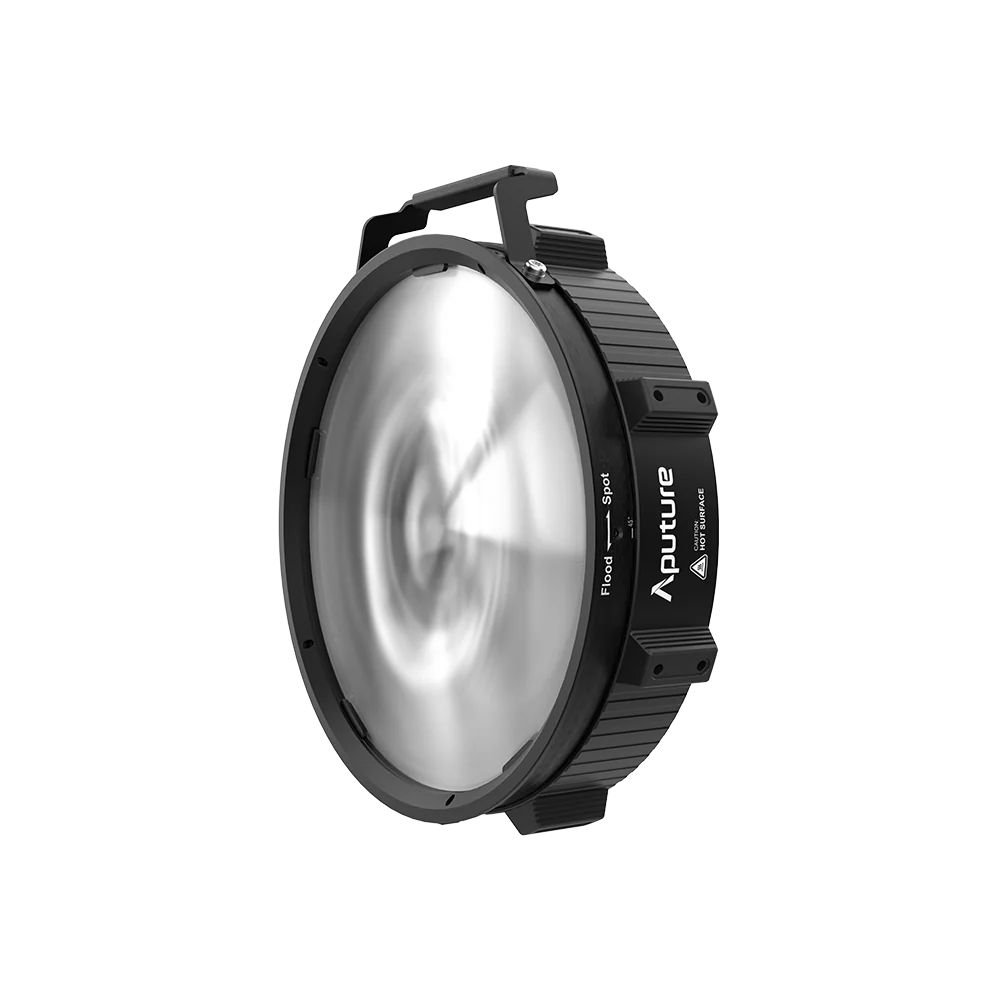

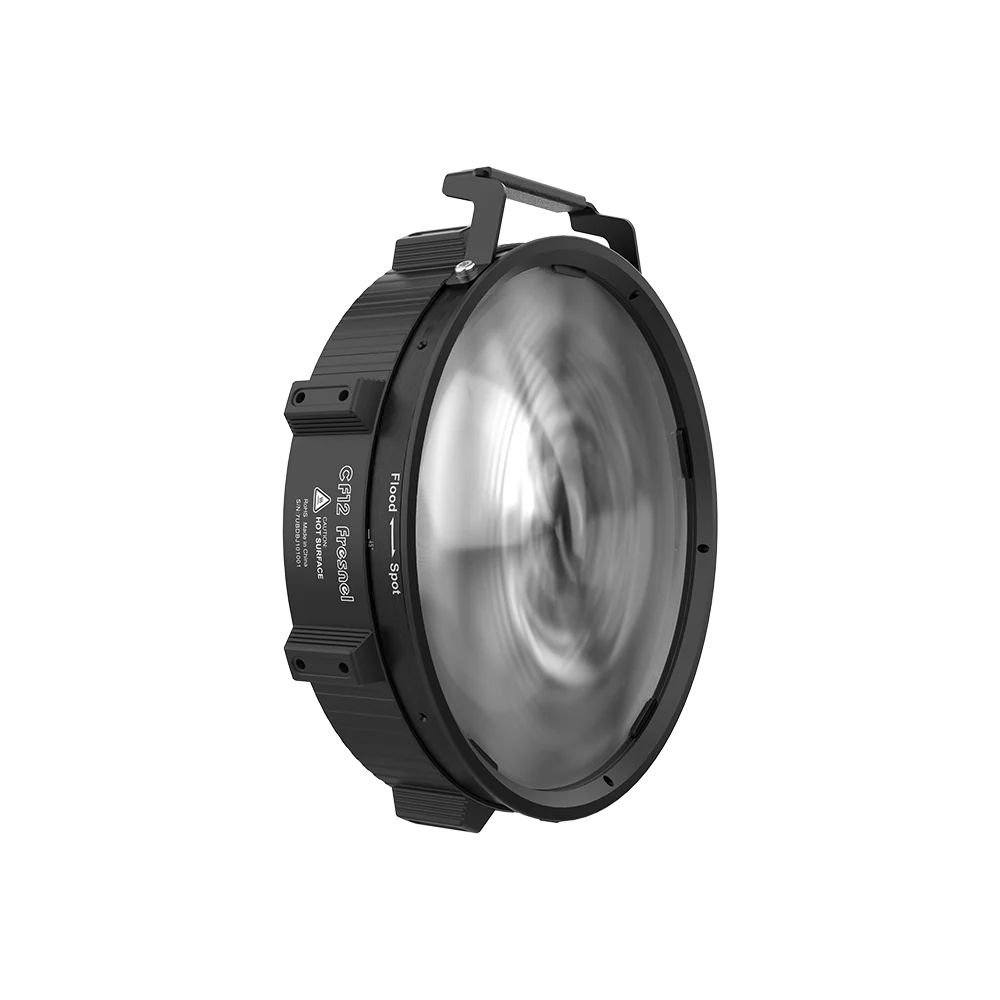

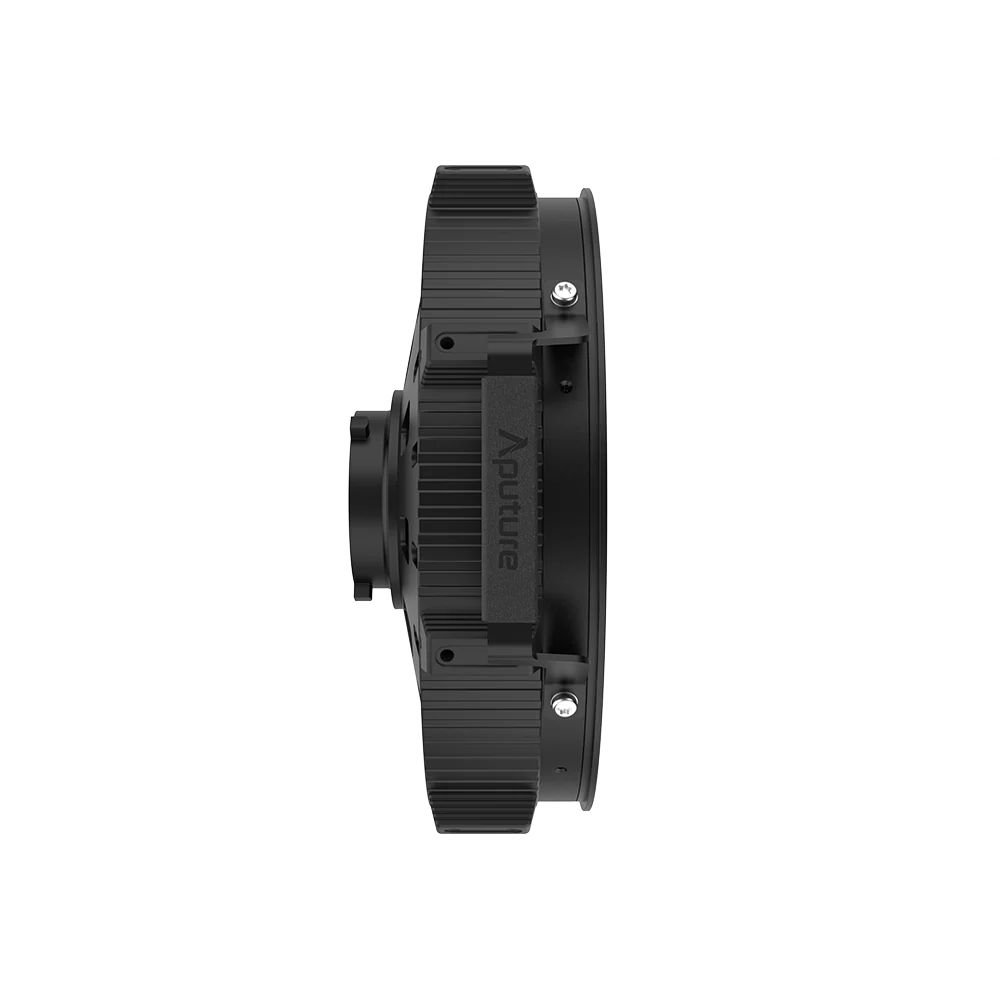

CF12 Fresnel

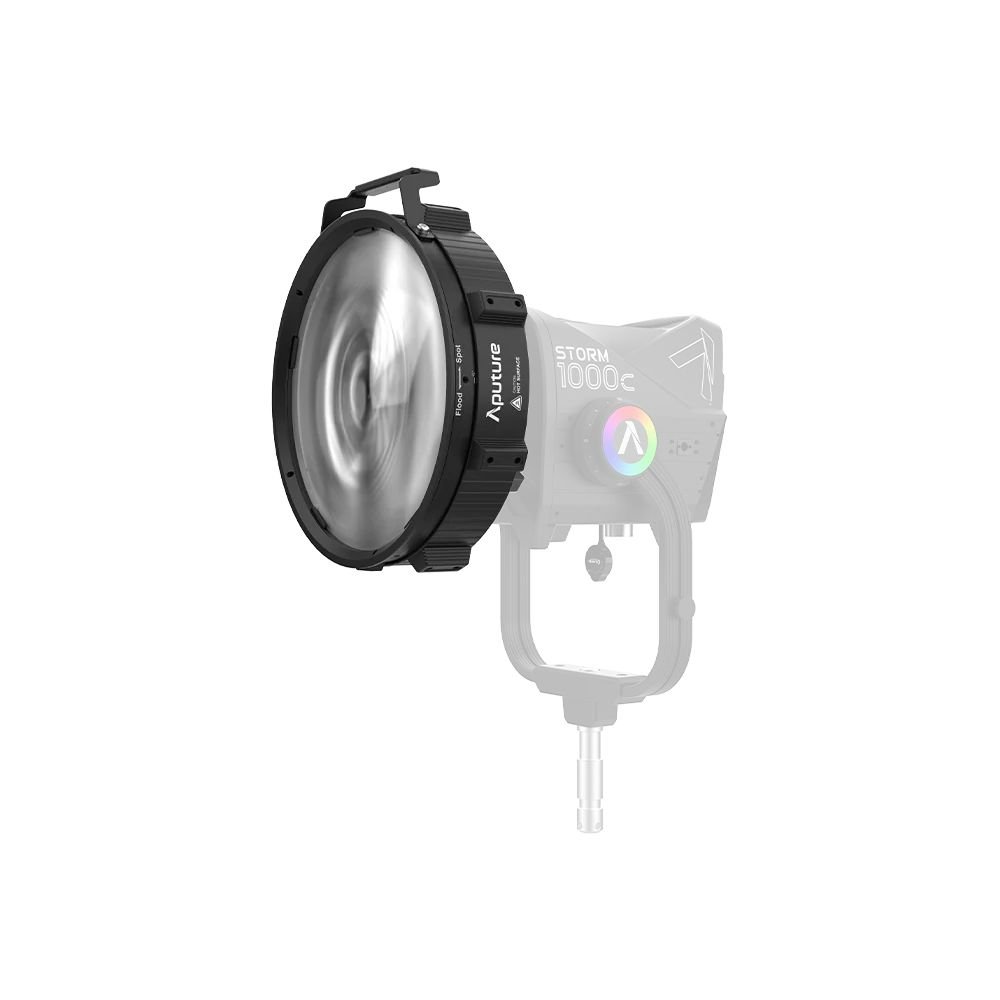

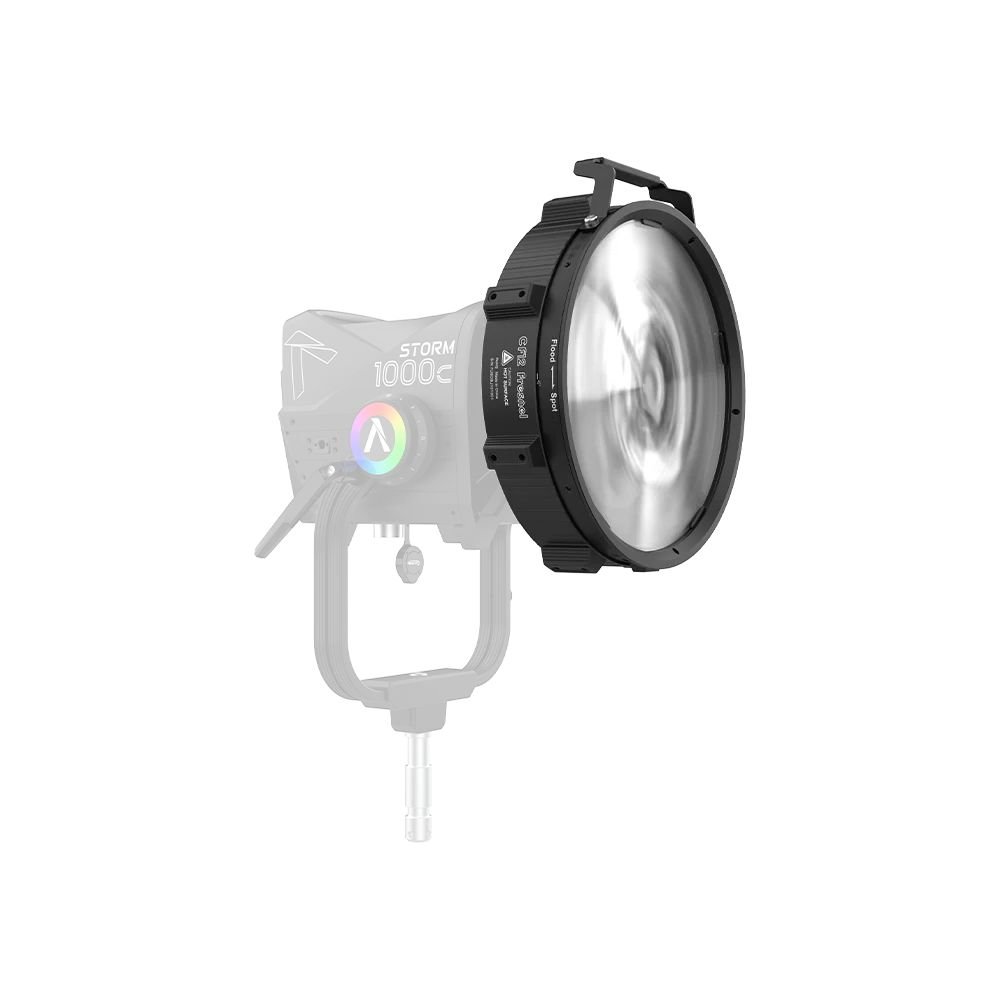

The Aputure CF12 Fresnel is a compact fresnel with a 12 inch diameter lens and Bowens Mount, optimized for use with the STORM 1000c and 1200x. The CF12 Fresnel intensifies the STORM 1000c output by up to 9 times (5600K, full intensity at 1 meter equals 58,500 lux) and the STORM 1200x output by up to 9.9 times (5600K, full intensity at 1 meter equals 84,400 lux). The optics provide an even output at all beam angles, with a smooth center-to-edge falloff.

Wide Beam Range, Compact Design

The CF12 Fresnel offers a beam range of 15° to 45° while maintaining a compact profile. It uses a dual-expanding focusing system with multiple lens elements to drastically reduce its size and weight without compromising optical performance. Its compact design is perfect for small, well-balanced setups on the STORM 1000c and STORM 1200x. The CF12 Fresnel is also compatible with the LS 1200d Pro, LS 600c Pro, and LS 600c Pro II.

Professional Light Shaping for Cinema and Stage

Whether you’re creating hard-edged spotlights or wide flood washes, the CF12 Fresnel delivers consistent, high-quality output across the entire beam range. The smooth center-to-edge falloff ensures natural light transitions, making it ideal for key lighting, fill lighting, and accent lighting in film, television, and live event production. The compact size and lightweight design make it easy to transport and rig in tight spaces.

Key Features

• 12″ diameter fresnel lens with Bowens Mount
• Beam angle range: 15° (full spot) to 45° (full flood)
• Up to 9x intensification on STORM 1000c
• Up to 9.9x intensification on STORM 1200x
• Dual-expanding focusing system with multiple lens elements
• Even output with smooth center-to-edge falloff
• Compatible with STORM 1000c, STORM 1200x, LS 1200d Pro, LS 600c Pro, LS 600c Pro II
• Compact profile for small, balanced setups
• Includes carrying case
• Weight: 4.72 kg (10.41 lbs)
