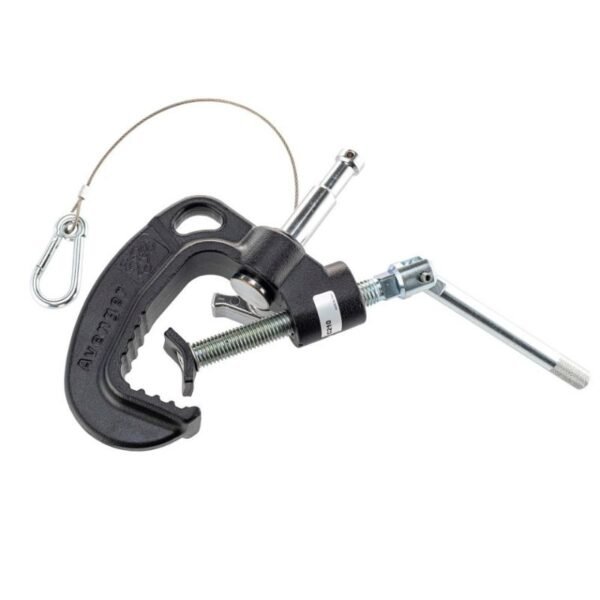

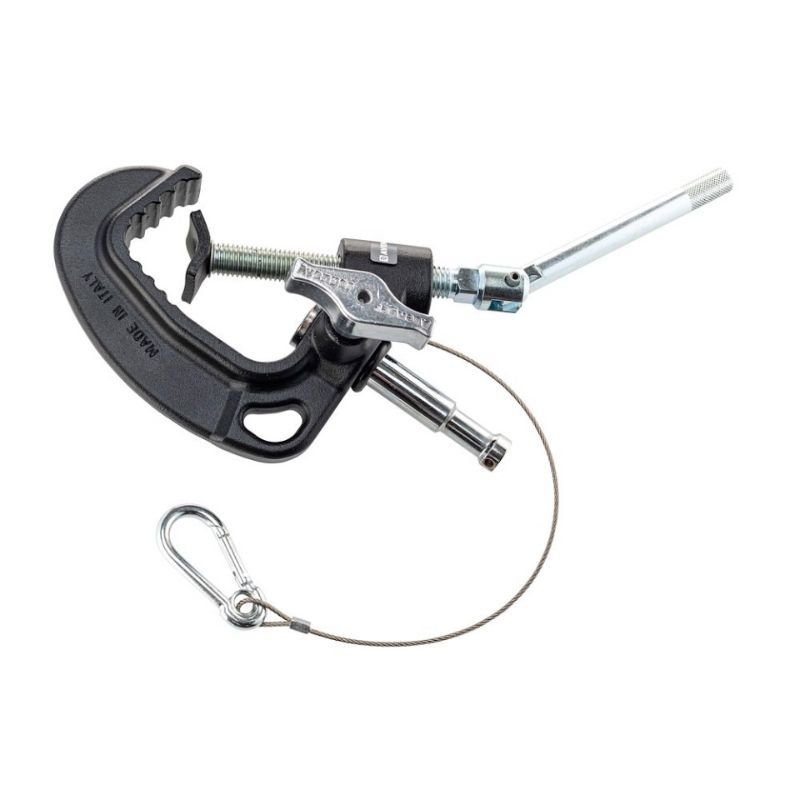

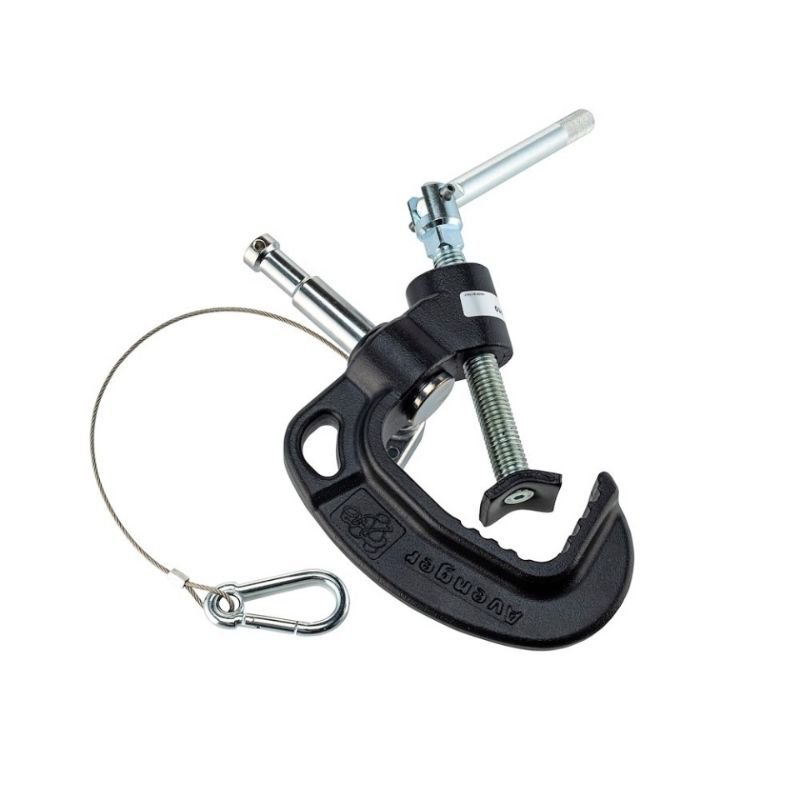

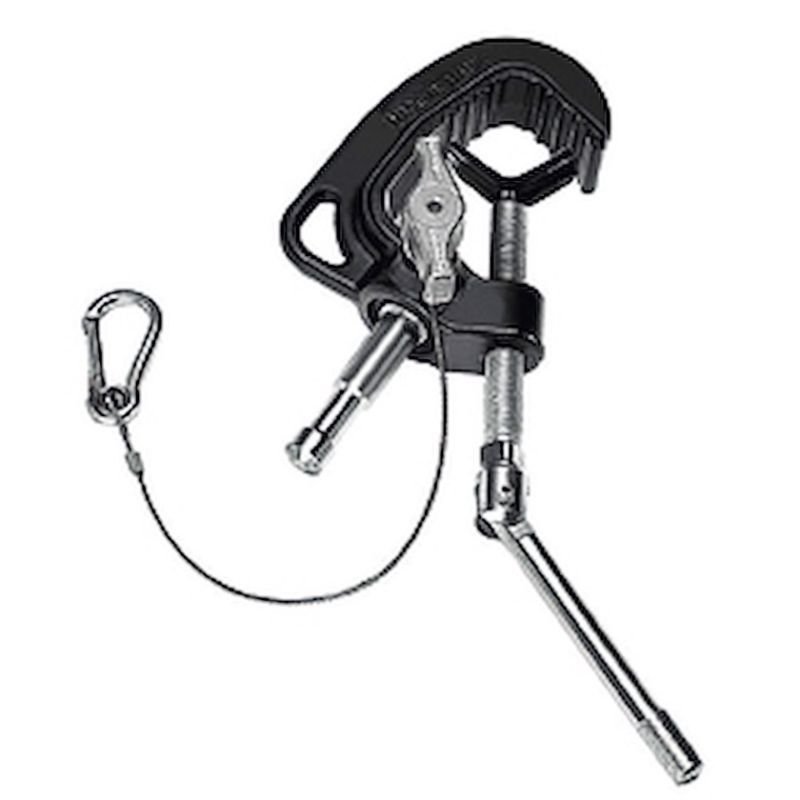

Avenger C210 Baby Pipe Clamp

The Avenger C210 Baby Pipe Clamp is a gravity-cast mounting clamp designed for securing lighting fixtures to truss systems, grids, and pipes. It supports loads up to 100kg / 220lbs and features a locking 16mm / 5/8″ pin for stable fixture mounting.

A built-in Tommy Bar locking handle allows fast installation without additional tools. The integrated T-knob locking system secures the pin while enabling accurate light positioning and aiming adjustments.

Gravity-Cast Construction

The C210 uses a gravity-cast design for dependable strength in professional lighting and rigging environments. Its construction is engineered to support heavy fixtures securely during studio, broadcast, and event production applications.

Wide Clamping Range

The clamp jaws accommodate pipe diameters from 10mm to 55mm / 0.39″ to 2.2″. This adjustable range provides compatibility with multiple rigging structures and mounting configurations.

Tool-Free Locking System

An integrated Tommy Bar locking handle eliminates the need for extra tools during mounting. The locking 16mm / 5/8″ pin includes a T-knob adjustment system for secure positioning and fixture aiming.

Integrated Safety Features

The clamp includes an attached safety cable with carabiner for additional mounting security. A dedicated slot is also provided for adding an extra safety cable when required.

Key Features

• Gravity-cast baby pipe clamp
• Maximum load capacity of 100kg / 220lbs
• 16mm / 5/8″ locking pin with T-knob adjustment
• Compatible with pipe diameters from 10mm to 55mm / 0.39″ to 2.2″
• Tommy Bar locking handle for tool-free mounting
• Includes safety cable with carabiner
• Dedicated slot for additional safety cable
• Recommended accessories: C155, FF3276, E390, C1575B, C4469
