KUPO Heavy Duty Wind Up Low Base Stand W/ Braked Caster

0 out of 5
( There are no reviews yet. )

5.339,00 AED 5.779,00 AEDPrice range: 5.339,00 AED through 5.779,00 AED ex. VAT
5.605,95 AED inc. VAT

Key Features:

  • Constructed from a combination of chrome-plated steel and stainless steel.
  • Heavy loading weight up to 80 kg (176.3 lbs) in a small 130 cm (51.2″) footprint.
  • Dual risers that extend from 140.5 cm to 270 cm.
  • 28 mm socket with 3 side holes for a wind bracing kit.

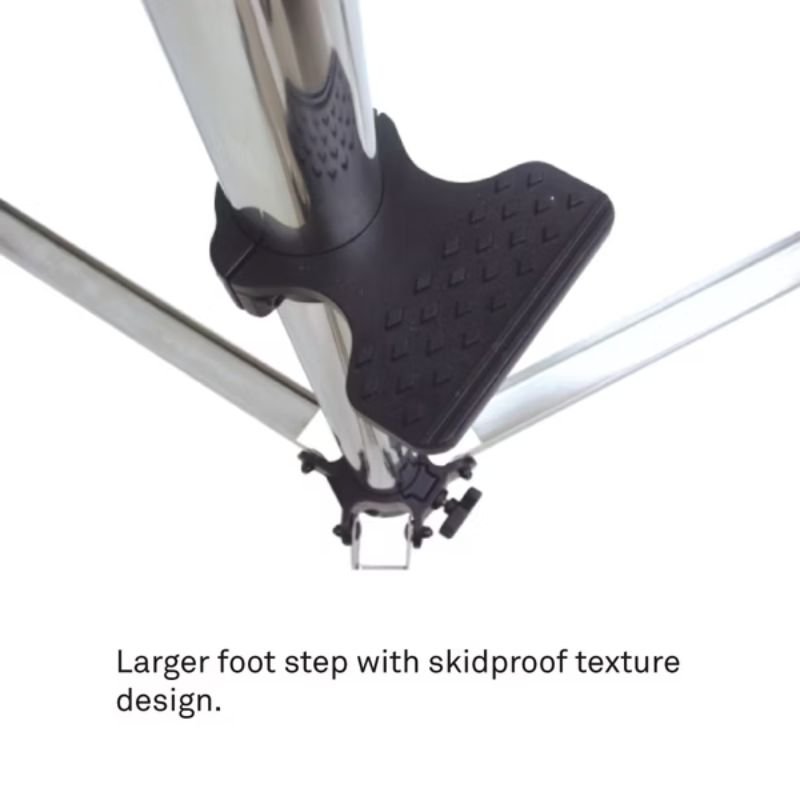

  • Larger foot step with skid-proof texture design.
  • Automatic self-locking mechanism to prevent the light stand from dropping unexpectedly.
  • Optional pneumatic wheel set (KC-215A) available.
SKU: Wind Up Stand Categories: , , Tags: ,

Related Products

Description

[vc_row][vc_column][vc_column_text css=”” css_params=””]

Heavy Duty Wind Up

485 KUPO Heavy Duty Wind Up Low Base Stand W/ Braked Caster

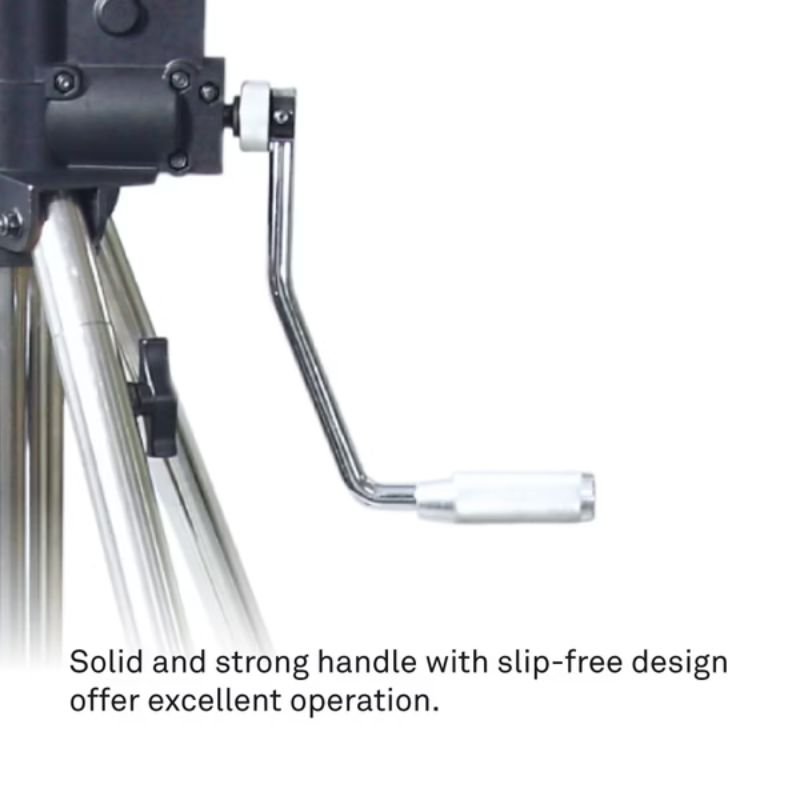

The Kupo 485 Heavy Duty Wind-Up Low Base Stand is a reliable and versatile solution for lifting heavy equipment with ease. With dual risers that extend from 140.5cm to 270cm, this stand can lift up to 80kg with the oversized slip-free handle. Its automatic self-locking mechanism and lifting assist with a hand-crank and auto-locking safety system ensure safe and precise operation. The center tube, legs, and U-shape struts are constructed from stainless steel, while the top two sections are made from chrome-plated steel for extra stability. Whether you’re a photographer or videographer, the Kupo 485 Heavy Duty Wind-Up Low Base Stand is a reliable option for lifting heavy equipment with confidence. For safety loading weight up to 80 kg (176.3lbs) in a small 130cm (51.2″) footprint.

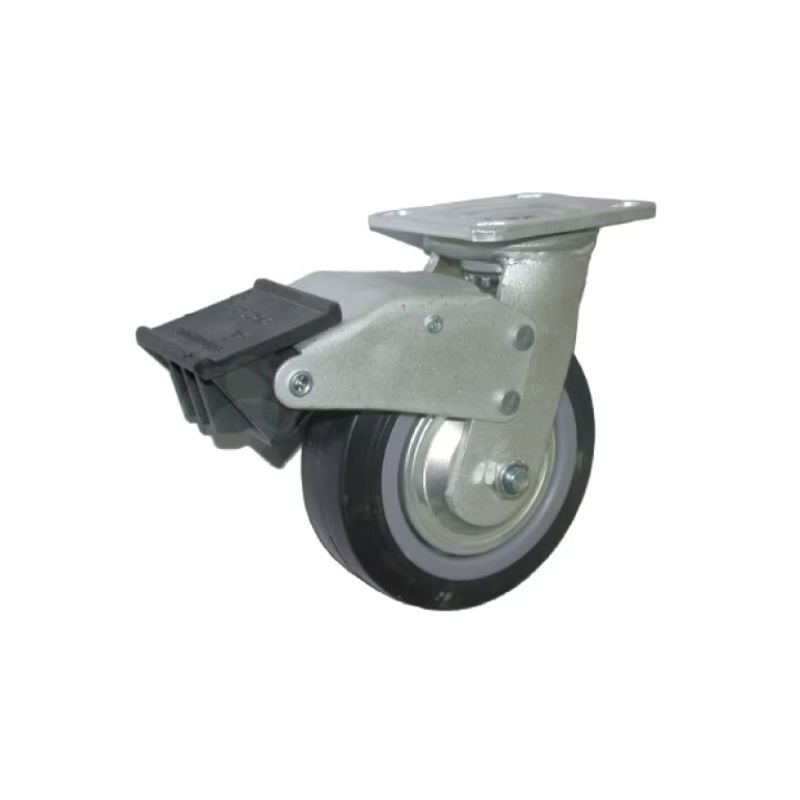

CASTER ASSEMBLY INSTRUCTIONS (KC-150)
1. Keep the caster locked.
2. Align the plate of caster with the plate of stand foot.
3. Tighten the bolt and nut with tools to keep the casters firmly mounted on the stand foot.

484 KUPO Heavy Duty Wind-Up Stainless Steel Stand W/ Braked Caster

The Kupo 484 Heavy Duty Wind-Up Stand is a reliable and versatile solution for lifting heavy equipment with ease. With dual risers that extend from 179cm to 386cm, this stand can lift up to 80kg with the oversized slip-free handle. Its automatic self-locking mechanism and lifting assist with a hand-crank and auto-locking safety system ensure safe and precise operation. The center tube, legs, and U-shape struts are constructed from stainless steel, while the top two sections are made from chrome-plated steel for extra stability. Whether you’re a photographer or videographer, the Kupo 484 Heavy Duty Wind-Up Stand is a reliable option for lifting heavy equipment with confidence.

CASTER ASSEMBLY INSTRUCTIONS (KC-150)
1. Keep the caster locked.
2. Align the plate of caster with the plate of stand foot.
3. Tighten the bolt and nut with tools to keep the casters firmly mounted on the stand foot.[/vc_column_text][/vc_column][/vc_row]

Specification 485 484
Risers/Sections 2 Risers, 3 Sections 2 Risers, 3 Sections
Column Diameter 70mm, 60mm, 50mm 70mm, 60mm, 50mm
Finish Stainless Steel Leg,

Chrome Plated Steel Column

 Stainless Steel Leg &

Chrome Plated Steel Column
Loading Weight 80kg (176.3lbs) 80kg (176.3lbs)
Weight 34kg (4.8lbs) 39kg (86lbs)
Closed Length 156cm (61.4″) 196cm (77.2″)
Minimum Operating  Height 140.5cm (55.31″) 179cm (70.5″)
Maximum Height 270cm (106″) 386cm (152″)

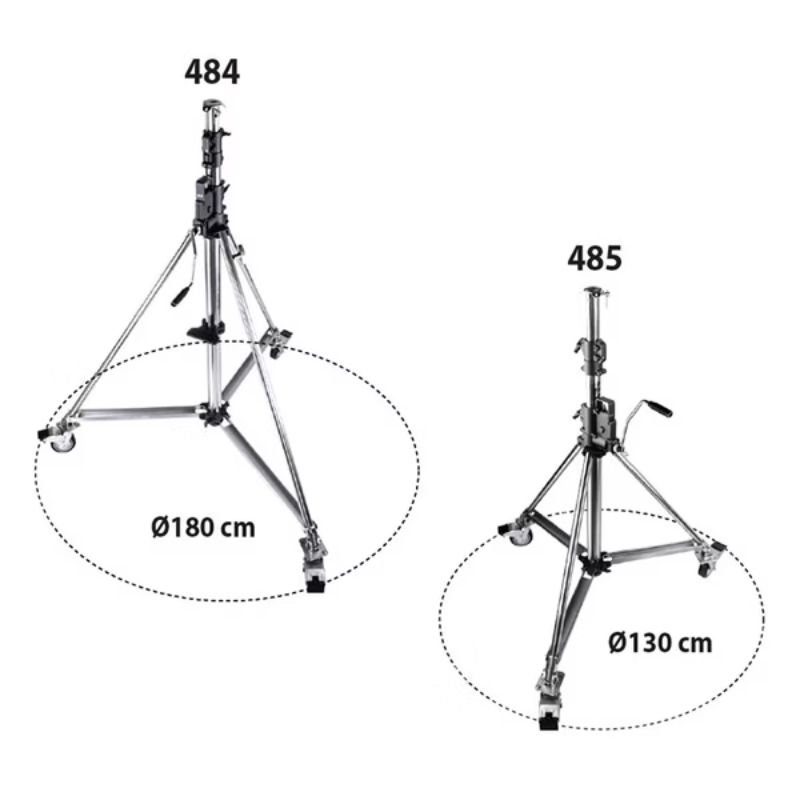

Footprint Diameter 130cm (51.20″) 180cm (70.9″)
Tube Diameter 35mm 35mm
Stand Top Junior Receiver (29mm)

with Wind Bracing Bracket

 Junior Receiver (29mm)

with Wind Bracing Bracket
With Casters KC-150 KC-150
Optional Pneumatic  Casters KC-215A KC-215A
Leveling Leg Yes Yes
