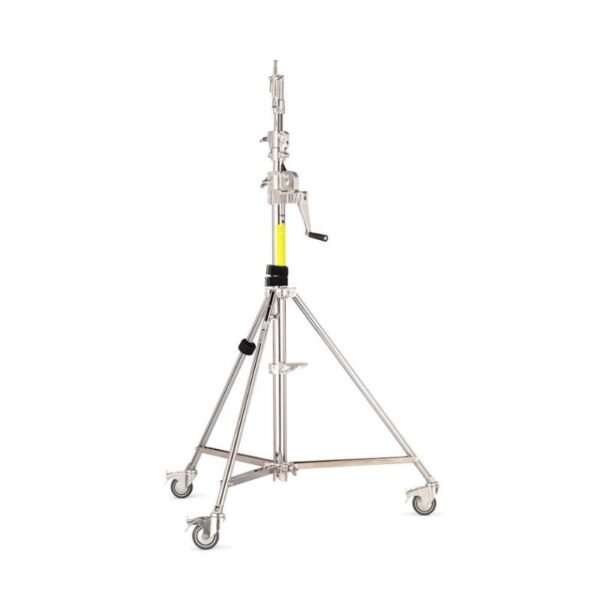

KUPO Jumbo Cranking Stand With Automatic Locking Device

The KUPO heavy-duty stands are designed for robust support and ease of use, offering varying capacities and features for diverse needs.

• 721M Jumbo Stand – 2 Sections features a load capacity of up to 100kg and a minimum working height of 108cm. With a spread diameter of only 106cm, it is ideal for Layer truss platforms. Constructed from iron telescopic tubes, aluminum alloy columns, and foot tubes, it includes a 28mm female socket with a fixed ring and a gear plate hand cranked mechanism. The detachable handle provides comfort and safety, and the stand includes 6″ brake casters KC-160C, with the option for a pneumatic wheel set (KC-254C).

• 744M Jumbo Stand-4 Sections supports loads up to 70kg (154 lbs) with a maximum height of 4.7M (15.4′). Made from chrome-plated steel, it boasts a direct drive gear mechanism and auto-locking system for superior performance. Each riser has an oversized T-handle for maximum torque, and the 1-1/8″ (28mm) junior receiver includes eyelets for guy wires. Integrated braking wheels offer safe repositioning, with the option for a pneumatic wheel set (KC-254C).

• 756M Jumbo Stand with TÜV Certification is also built from chrome plated steel, supporting loads up to 154 lbs (70 kg) with a maximum height of 20′ (6.1 m). It features the same direct drive gear mechanism and auto-locking system, along with oversized T-handles and a junior receiver with eyelets for stability. It includes integrated braking wheels and the option for a pneumatic wheel set (KC-254C). This stand is TÜV certified, ensuring it meets industry safety standards.

These KUPO stands provide stability and security for heavy-duty support, with ergonomic and safety features tailored to professionals in photography, videography, and cinematography.
