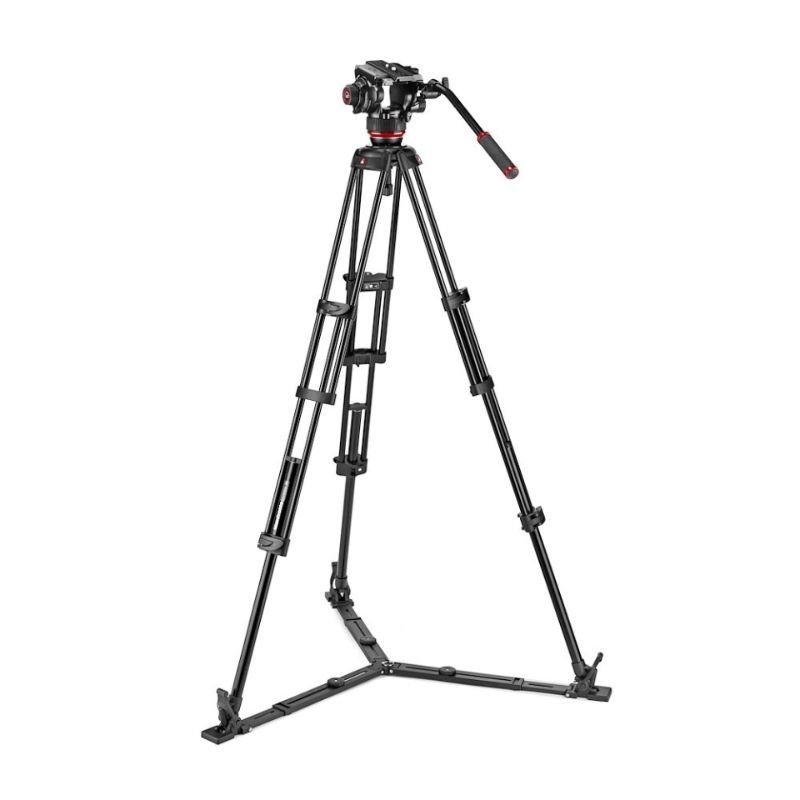

Manfrotto 504X Fluid Video Head with Aluminum tripod

3.200,00 AED 3.650,00 AED Excluding VAT

Key Features

  • Fluid video head with 4-step counterbalance system up to 6.5 kg.
  • Maximum versatility thanks to flat base
  • Aluminum twin leg tripod with 2 risers
  • Side lock plate & two 3/8”easy link connectors for accessories
  • Highest safety standards ensured by UNI/PdR 105:2021 compliance
SKU: MVK504XTWINGA Categories: , , Tag:

Featured Products

Description

video system includes the Manfrotto 504X Fluid Video Head and the aluminium twin leg with middle spreader tripod.

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The head attaches to the tripod via a dedicated 75mm half ball.

The MVTTWINMA aluminium twin leg with ground or middle spreader video tripod is a professional-quality tripod with a two-stage, rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has ground or  mid-level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the ground spreader Manfrotto 165MV which is sold separately.

Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding. For maximum versatility, the tripod can be used with various dollies (114MV and 181B).

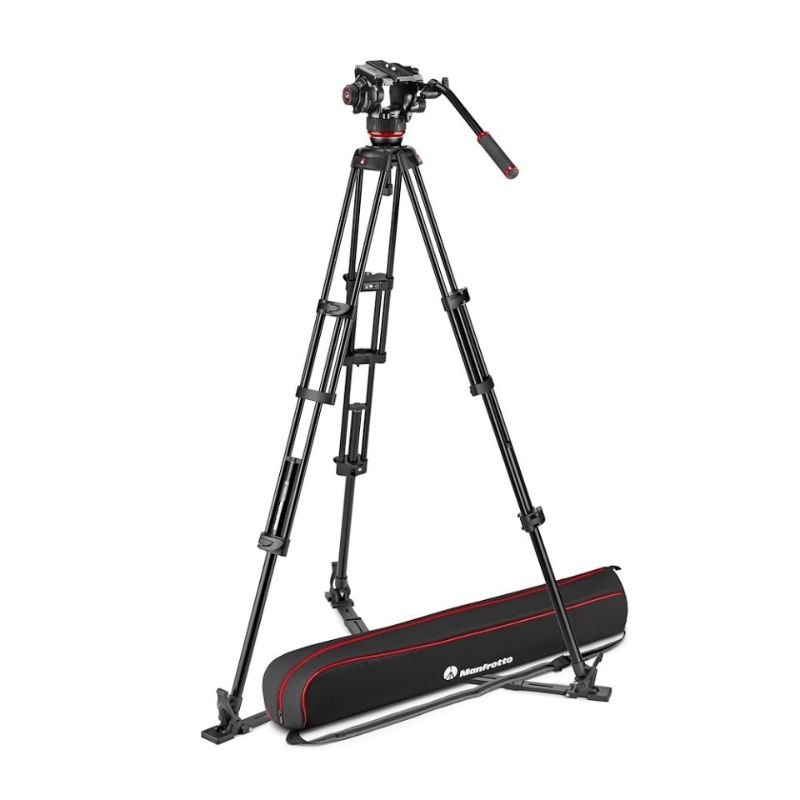

Supplied with its own padded carrying bag.

SpecificationMVK504XTWINMAMVK504XTWINGA
Weight5.6 kg5.85 kg
Safety Payload UNI/PdR  105:202112 kg12 kg
Counterbalance SystemVariable StepsVariable Steps
Counterbalance Weight2.2, 4.4, 6.5 kg2.2, 4.4, 6.5 kg
Maximum Height169 cm175 cm
Min Height75 cm49 cm
Base Diameter75 mm75 mm
Bubble Spirit Level (No.)11
Center of gravity55 mm55 mm
Carrying Bag IncludedYesYes
Center ColumnNo centre columnNo centre column
Closed Length86 cm85 cm
ColourBlackBlack
Top Attachment1/4″ screw, 3/8″ screw1/4″ screw, 3/8″ screw
Ball FlatFlatFlat
Powered by (batteries)LithiumLithium
Easy LinkYes (with antirotation)Yes (with antirotation)
Front Tilt-70° / +90°-70° / +90°
Head TypeVideo/Fluid HeadVideo/Fluid Head
Leg TypeTwinTwin
Leg Lock TypeFlip LockFlip Lock
MaterialAluminiumAluminium
Maximum Working  Temperature60 °C60 °C
Minimum Working  Temperature-30 °C-30 °C
Pan Bar IncludedYesYes
Pan DragContinuously adjustableContinuously adjustable
Panoramic Rotation360 °360 °
Plate Type504PLONGR-1504PLONGR-1
Quick ReleaseYesYes
SpreaderMid level – variable armLow level – variable arm
Tilt DragContinuously adjustableContinuously adjustable
Accessory  Compatibility114MV; 181B; 165MV;  MVAPANBARM; MVAPANBARL114MV; 181B; 565; 537SPRB;  MVAPANBARM; MVAPANBARL

Additional information

Tripod Spreader Type

Ground Spreader, Mid Spreader
