Description

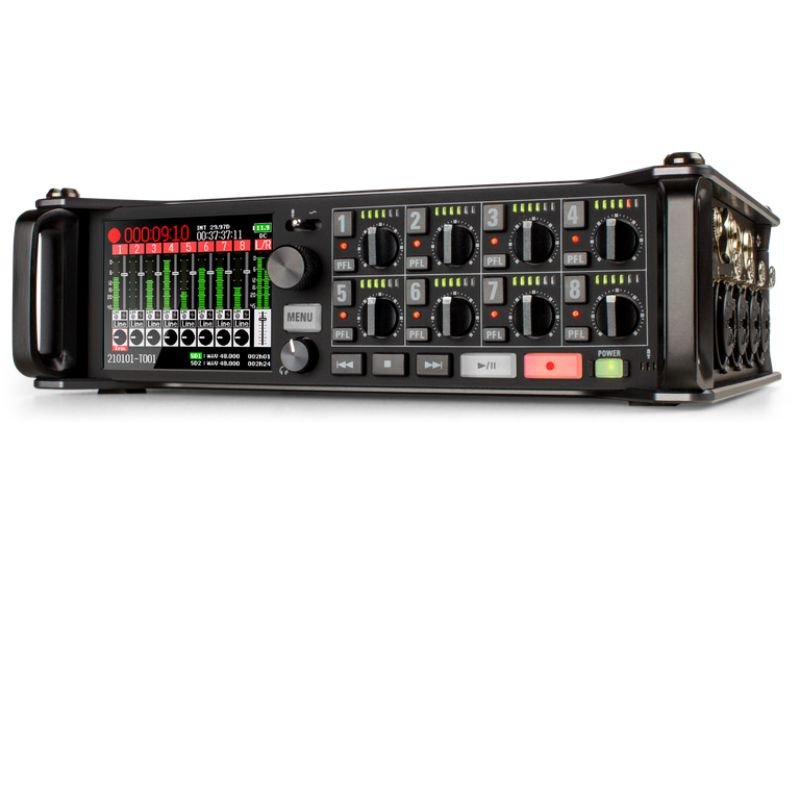

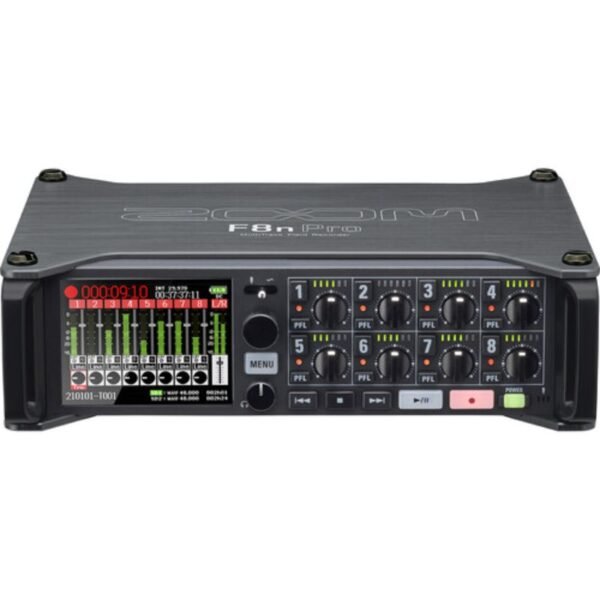

F8n Pro Multitrack Recorder

With 8 inputs and 10 tracks, the F8n Pro can capture the most complex audio, expanding your options so that you can create sonic magic in post.

32-Bit Float is a game-changer. The F8n Pro uses dual A/D converters and professional-grade preamps to capture clip-free audio – without ever needing to adjust gain.

Multiple Feeds

The F8n Pro has three outputs for external devices, headphones, and camera connections. You can keep tabs on your tracks pre or post-fader, check levels, route signals to the left or right and set alert tones for battery and recording status.

The F8n Pro records in BWF-compatible WAV formats up to 32-bit resolution and at sample rates up to 192 kHz.

The F8n Pro features flexible signal routing from all inputs to all outputs, phase inversion and mid-side decoding. It also provides high-pass filtering to reduce the sound of wind and other noise. Input and output delays are also available.

Keep your tracks perfectly synced even when you power down. On or off, the F8n Pro’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.

Zoom AutoMix lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.

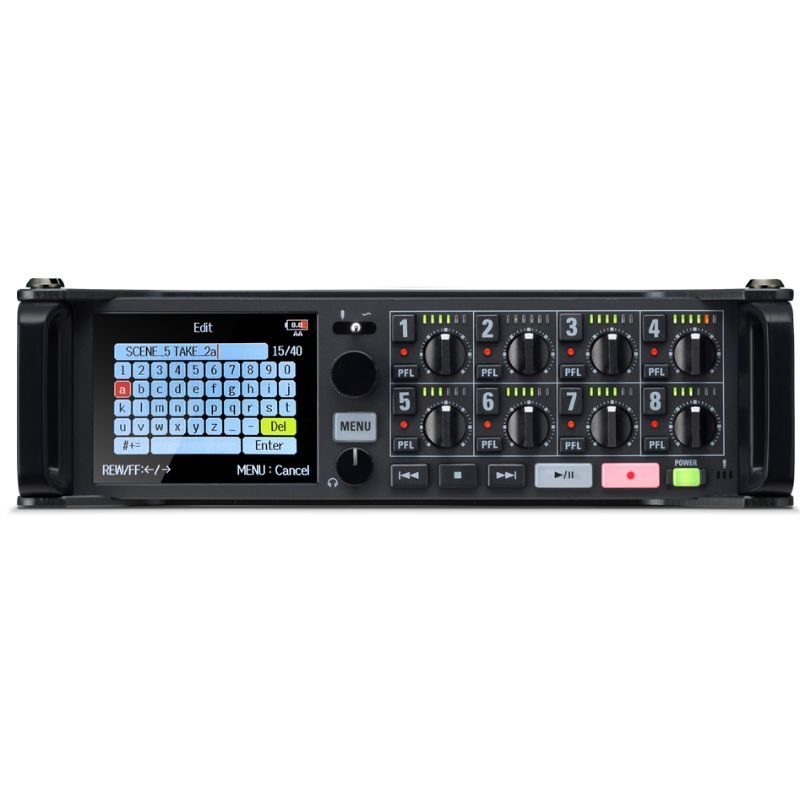

The track name, scene names, notes, and more can be entered directly from the unit or via the Zoom F8 Control App for iOS / Android.

Interface & Highlights

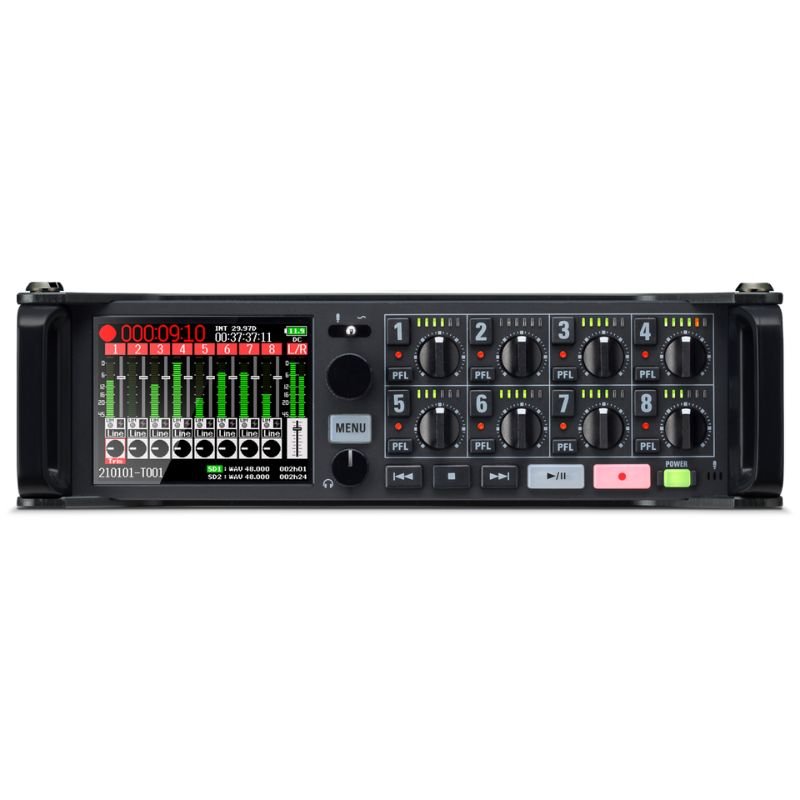

• Display: The F8n Pro’s 2.4-inch full-color backlit display with monochromatic mode makes field work equally easy in low or direct lighting.
• Slate Switch: The F8n Pro’s has a built-in slate mic for recording comments as well as the ability to output a variable frequency tone signal.
• Transport Controls: The control panel features stop, search forward and search backward keys as well as illuminated play/pause and record buttons.
• Input Controls: Each input features a built-in preamp with a dedicated gain control knob and a 6-segment LED level meter.
• USB Port: A USB port enables firmware updates, file transfer, and allows the F8n Pro to be used as an 8-in/4-out USB audio interface operating at sample rates up to 32-bit float / 96kHz.

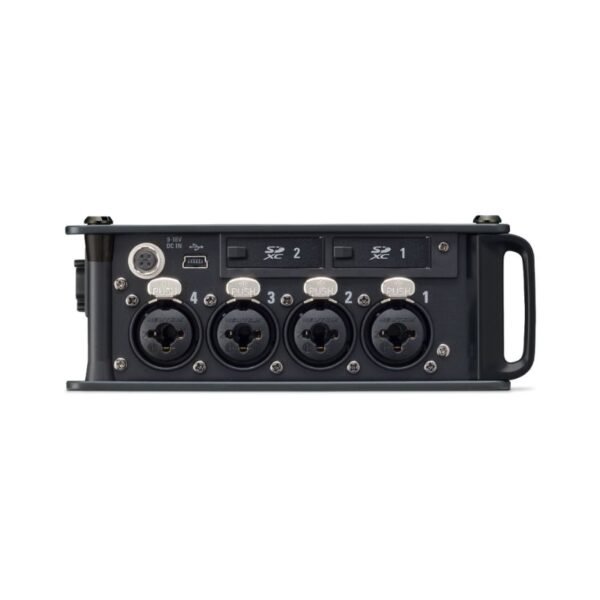

• Inputs: The F8n Pro provides 8 discrete inputs with locking Neutrik XLR/TRS combo connectors, allowing you to plug in any microphone, wireless pack, or line level device. Any input can also be used as a camera return.

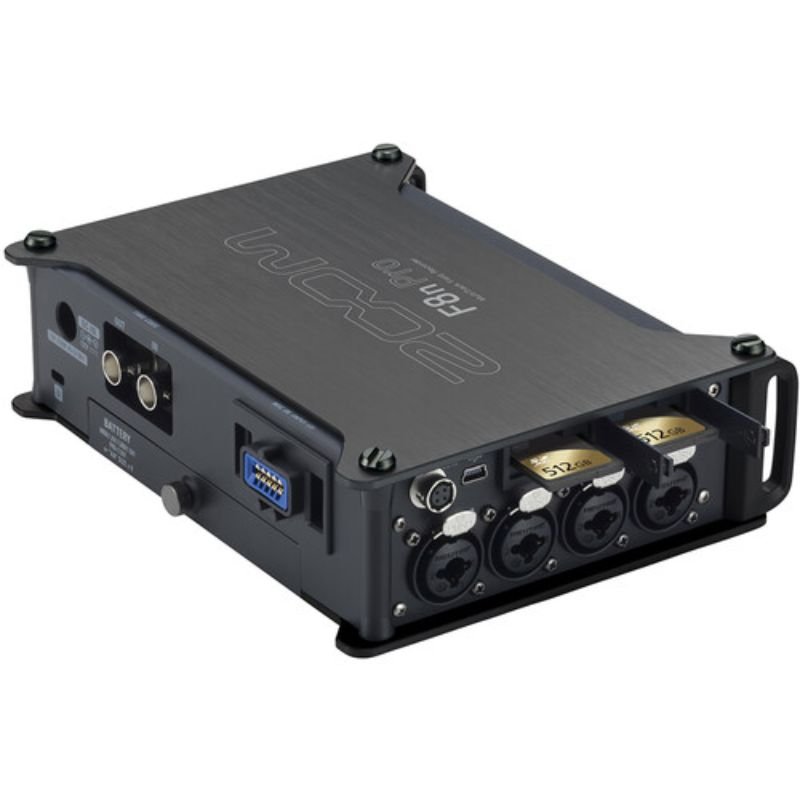

• SD Card Slots: Record on two SD/SDHC/SDXC cards, up to 1 TB each, simultaneously, allowing you to instantly backup or split recordings.
• Headphone Jack: The unit’s 1/4″ headphone jack also comes with dedicated volume control.
• MAIN OUTPUTS: The F8n Pro provides four outputs: two Main Outs (on balanced TA3 mini-XLR jacks) for connection to external mixers and processing devices; and two Sub Outs (on a single unbalanced 1/8″ stereo mini-jack) for connection to a camera. The F8n Pro also provides a selectable +4 dBu output.
• DC POWER: The F8n Pro can be powered by a 9-18V external DC power supply.

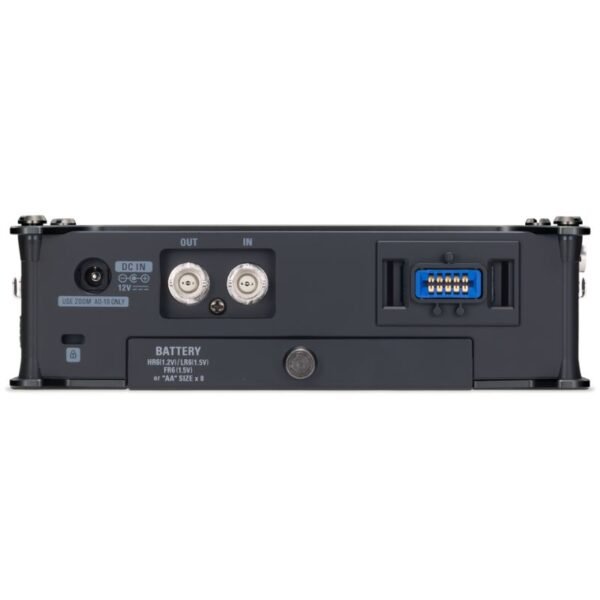

• Time Code In/Out: Timecode can be generated internally or transmitted from an external timecode generator.
• 10-PIN MIC CONNECTOR: Our proprietary 10-pin connector enables the use of interchangeable Zoom mic capsules, with optional extension cables that allow for remote positioning

Features

• 32-bit float recording technology
• 8-channel/10-track field audio recorder/mixer
• Records in BWF-compliant WAV format up to 192kHz/32-bit float
• 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
• High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
• Switchable +4dB inputs with mic/line options for both XLR and TRS
• Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
• Zoom AutoMix™ software

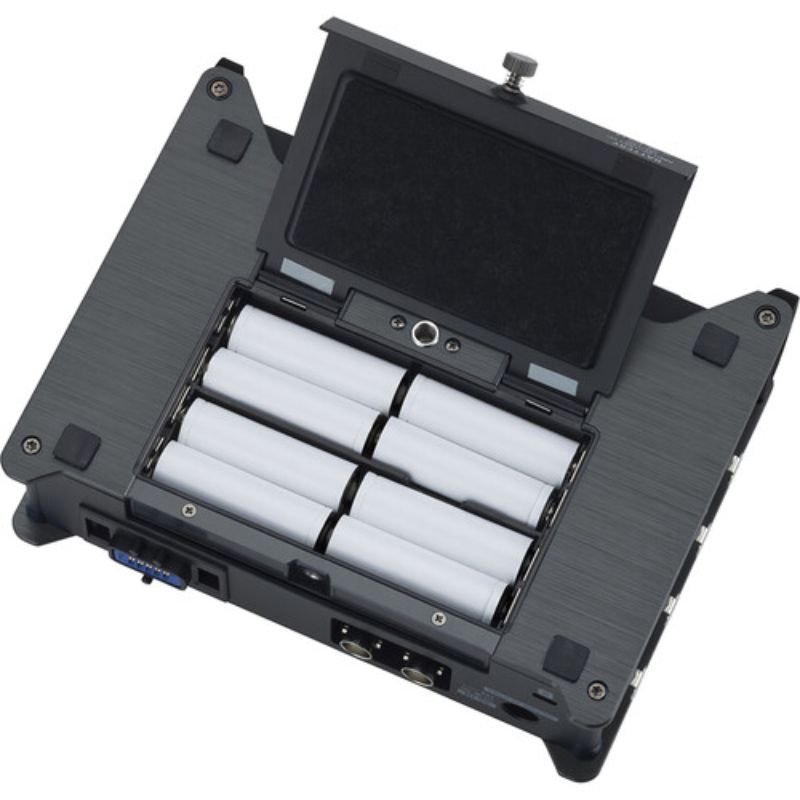

• Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
• High pass filter, phase invert, and mid-side decoder
• Dual mini-XLR (TA3) balanced Main Outs plus ⅛” stereo mini-jack Sub Out
• Dedicated headphone output (100 mW) with front panel volume control
• 2.4″ full-color backlit LCD with monochromatic mode
• Dual SD/SDHC/SDXC card slots, up to 1 TB each
• Use as an 8-in/4-out USB audio interface
• Free Zoom F8 Control App for iOS and Android allows wireless remote control,
  file renaming, and metadata entry
