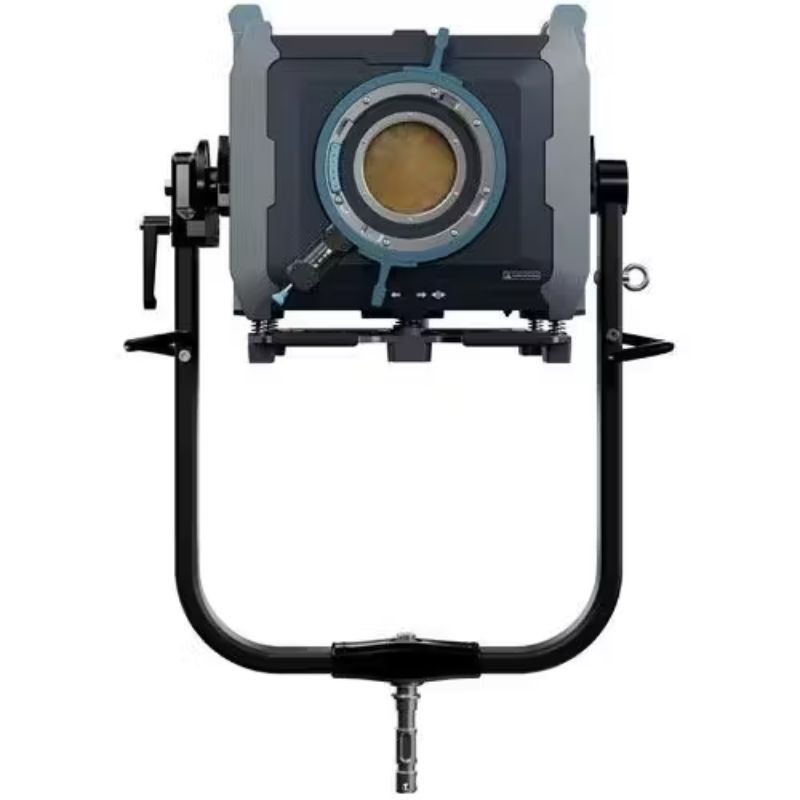

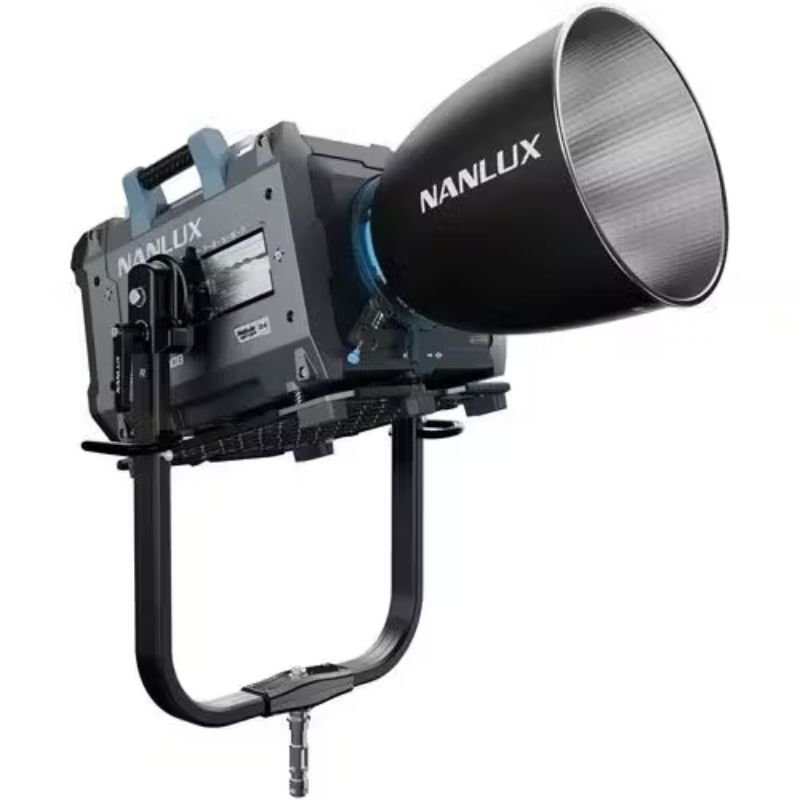

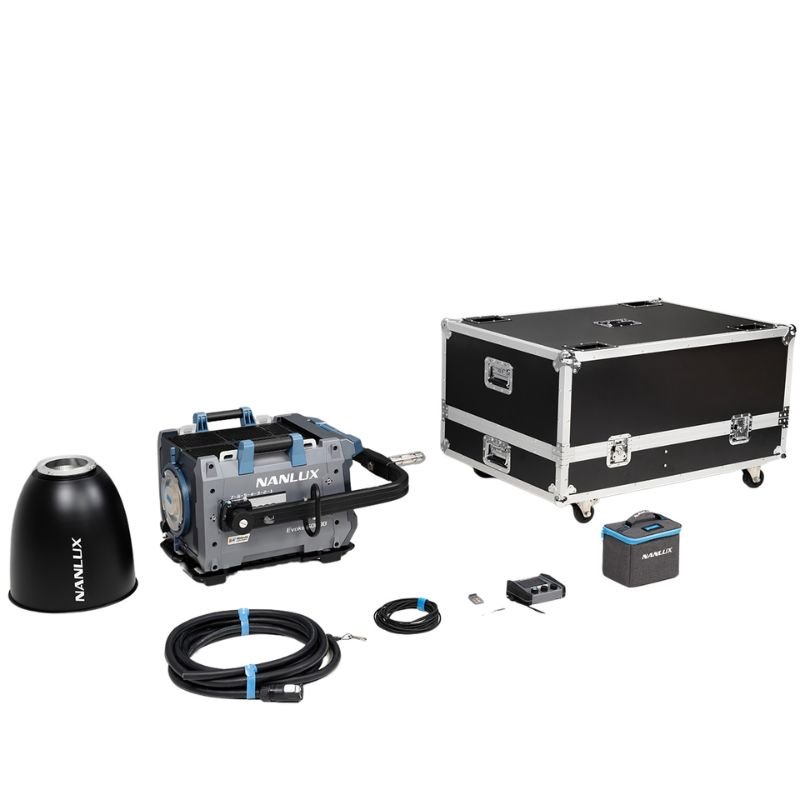

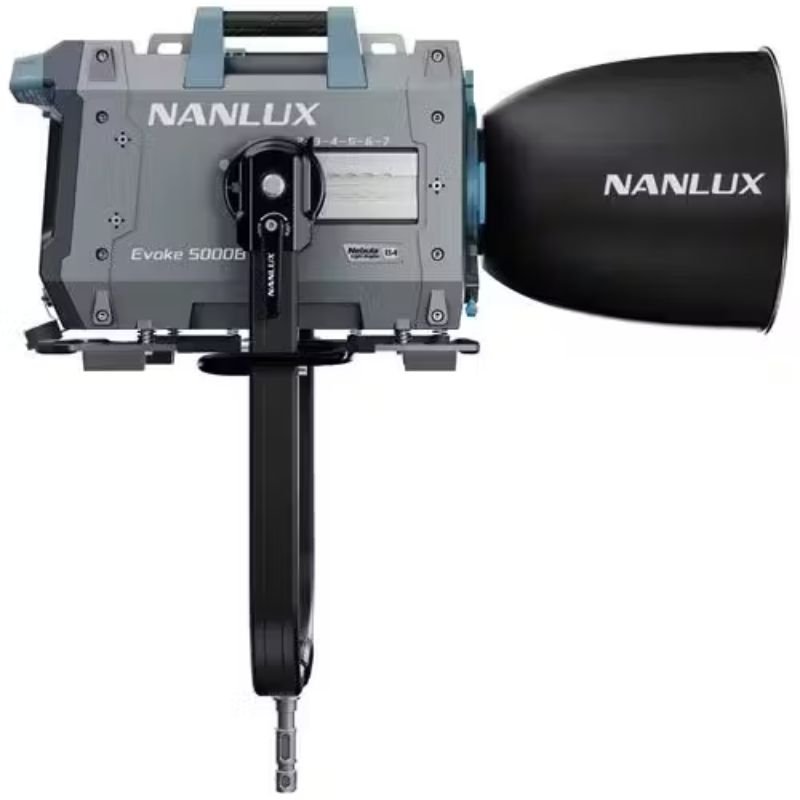

Evoke 5000B LED Bi-Color With Flight Case

The Nanlux Evoke 5000B is the world’s first 5000W storm proof LED bi-color spotlight with ±80 Green/Magenta adjustment. Integrating an impressive output with a 5000W power draw, a color temperature range of 2700K-6500K, excellent light quality, an IP66 rating, and the self-developed Nebula B4 Light Engine, this fixture is a cutting-edge solution for professional production. The built-in professional CSP chips and ultra-high LED light efficiency enable the Evoke 5000B to produce extraordinary illuminance, approaching that of a 9kW HMI or 24kW tungsten light.

All-in-One Weatherproof Design

The Evoke 5000B integrates the lamp head, control unit, and power supply into one fixture, significantly reducing both total weight and size. Constructed using high-strength magnesium alloy, it weighs only 46kg (101lb) with yoke. The IP66-rated housing enables it to withstand extreme weather conditions, allowing production to continue unaffected in harsh environments. Key design features include a yoke with disc brake for precise positioning and on-set safety, balance adjusting rails for center-of-gravity adjustment with accessories, and a skid for wear prevention, shock protection, and stacking for transport. The NL mount features the PosiTight system for dual security, ensuring a tighter connection between fixture and accessories.

Exceptional Control and Dimming Performance

The Evoke 5000B achieves fully linear dimming from 0% to 100% with 0.1% step increments. The newly added High Speed Mode allows switching from PWM to DC, maintaining stable, consistent brightness during high-frame-rate shooting – even at over 10,000 frames, it ensures smooth, flicker-free performance. The cooling system includes Smart, Full Speed, Low Speed, Off, and Pause modes. In Smart mode, the fan automatically adjusts according to ambient temperature with noise levels of only 44 dB(A), ensuring a silent recording environment. The built-in Nebula B4 Light Engine combines 4 types of white light chips, providing Green/Magenta adjustment capability across the entire color temperature range, outperforming full-color light engines by 30% in white light emitting efficiency.

Comprehensive Control Options

The Evoke 5000B features on-board control with three knobs, four buttons, and a 4.3-inch display screen with a new-generation user interface. A wired controller is included, and the fixture supports DMX/RDM, Art-Net/sACN (via two LAN ports), built-in LumenRadio CRMX (Timo Two module), Nanlink App 2.0 via Bluetooth, and optional remote controller via 2.4G. The fixture is compatible with the existing Evoke series accessory ecosystem via the NL mount, including Fresnel lenses, reflectors, softboxes, and the new larger motorized Fresnel and motorized yoke.

Key Features

• Nebula B4 Light Engine with 4 white light chips
• 2700K-6500K color temperature range
• ±80 Green/Magenta adjustment
• CRI 97 / TLCI 98
• Output approaches 9kW HMI or 24kW tungsten
• 22,210 lux at 5m (5600K, 45° reflector)
• IP66 weatherproof rating (magnesium alloy housing)
• All-in-one design (lamp head, control, power supply)
• Weight: 46kg / 101lb (with yoke)
• 0-100% dimming with 0.1% step increments
• High Speed Mode for flicker-free high-frame-rate shooting
• Cooling fan noise: 44 dB(A) in Smart mode
• 12 built-in special effects with customizable parameters
• Control: On-board, wired controller, DMX/RDM, Art-Net/sACN, CRMX, Nanlink App 2.0, 2.4G remote
• NL mount with PosiTight system
• Yoke with disc brake and angle display
• Balance adjusting rails and skid included
