SmallHD Cine 13″ 4K High-Bright Production Monitor

0 out of 5
( There are no reviews yet. )

18.350,00 AED ex. VAT
19.267,50 AED inc. VAT

  • 13-inch 4K display with 3840 × 2160 resolution.
  • 1500 nits brightness for outdoor monitoring.
  • PageOS software with professional monitoring tools.
  • 4x 12G-SDI inputs/outputs and HDMI 2.0 connectivity.
  • Lightweight design with flexible accessory mounting options.
SKU: MON-CINE-13 Categories: , , Tag: Brand: SmallHD
International Orders: Shipping cost depends on your country and order weight. Please contact us to complete your order.

This Product For Pre Order Only, Delivery Time 3-4 Weeks

Related Products

Description

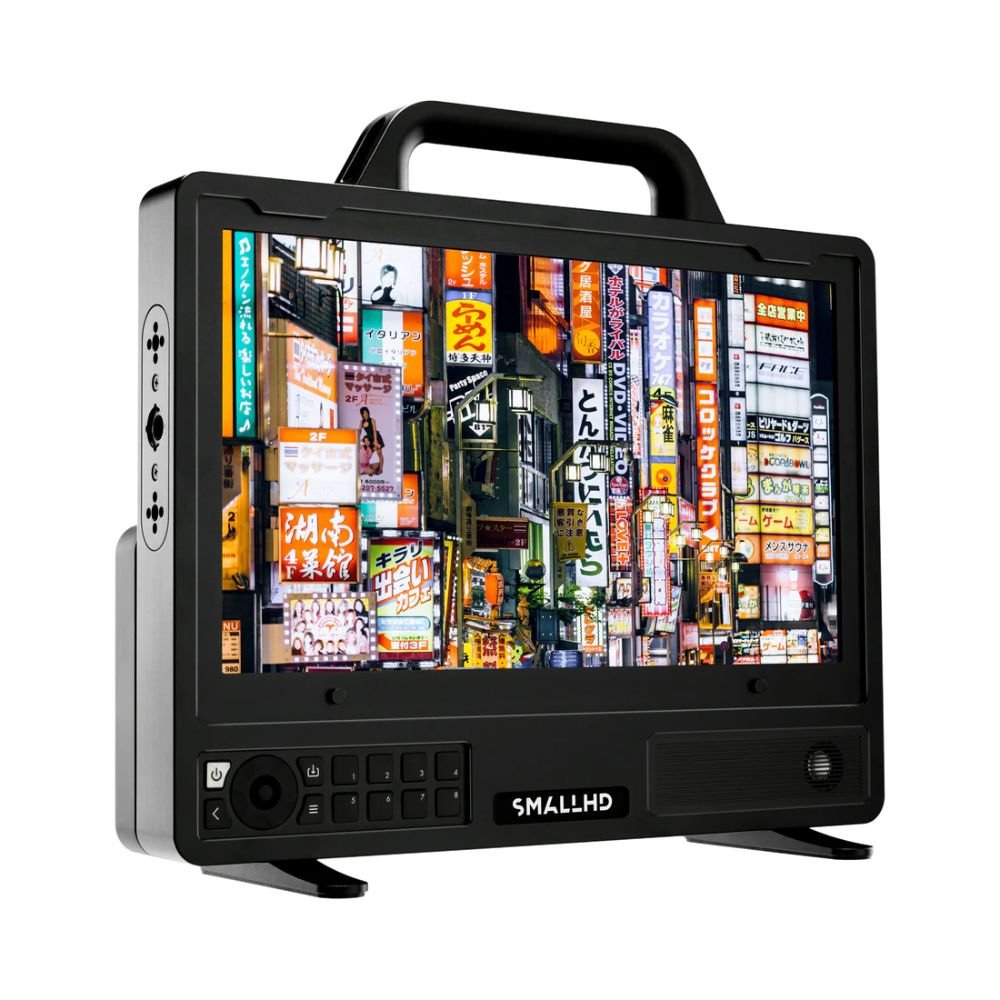

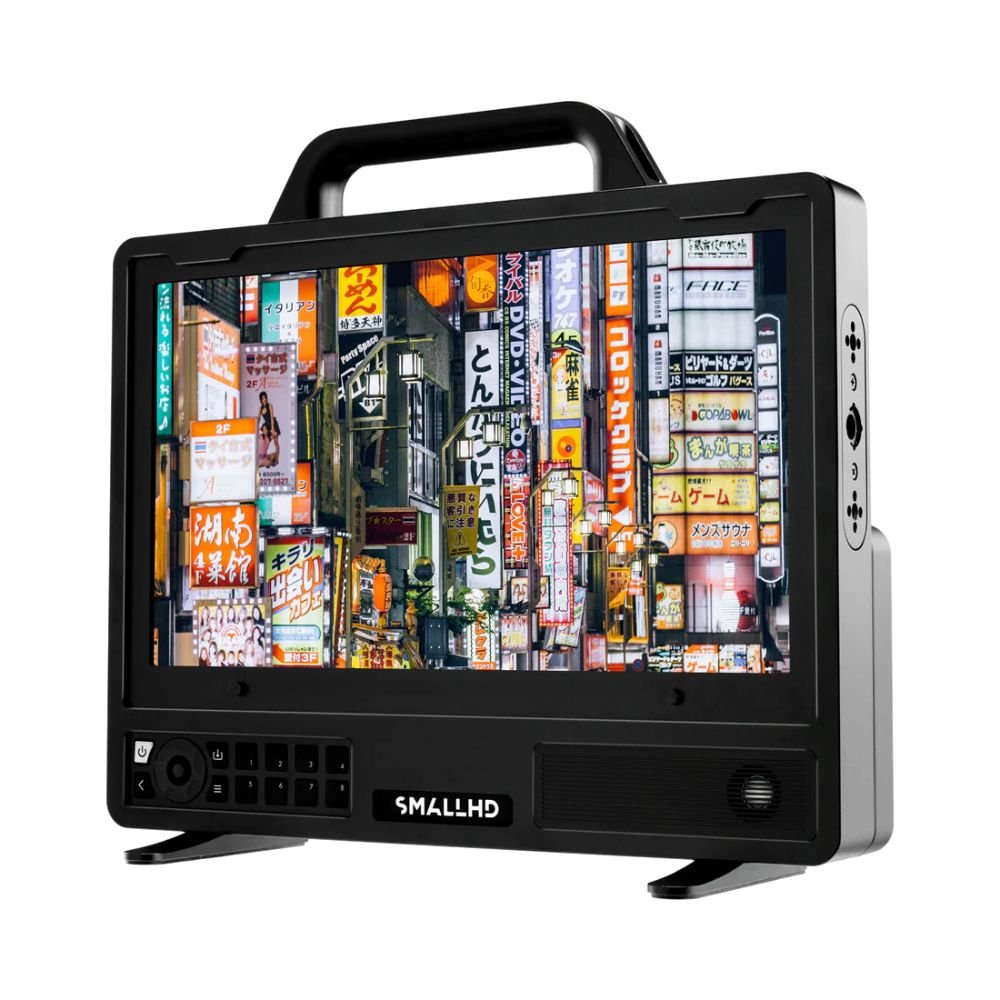

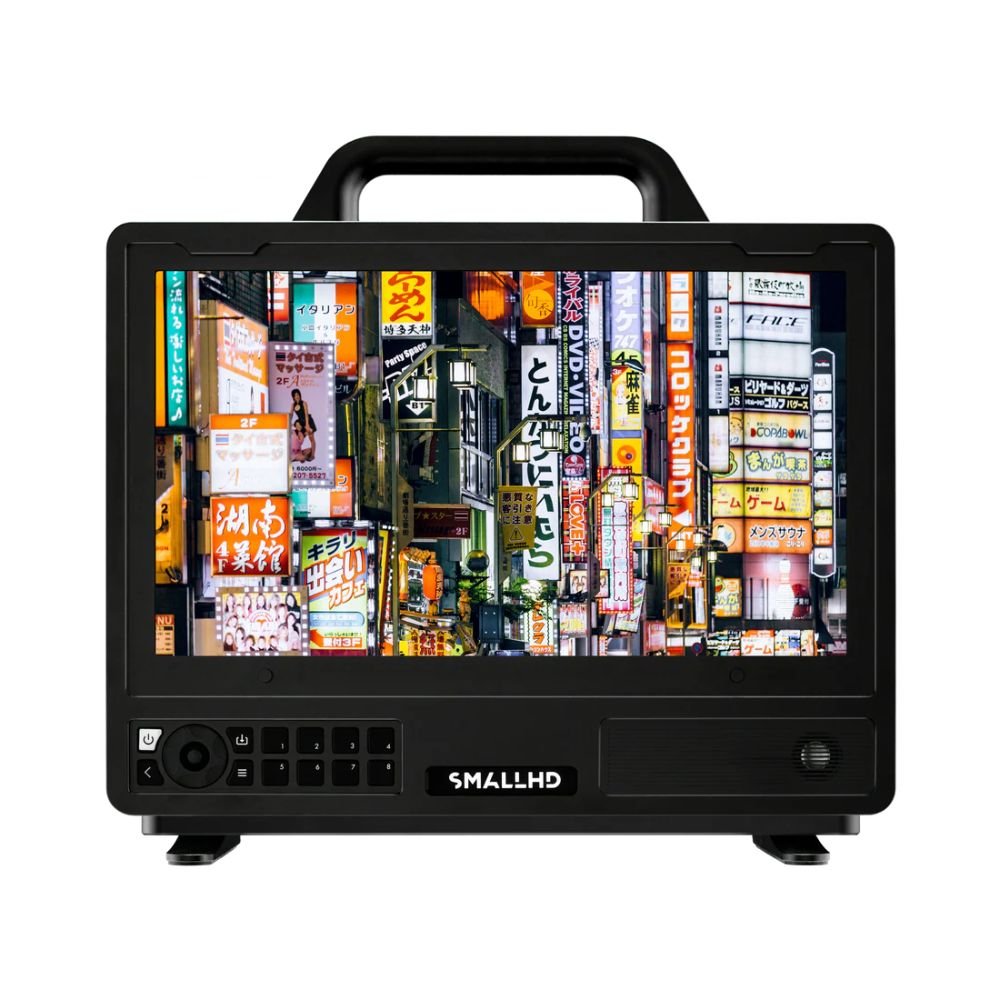

Cine 13 4K Production Monitor

The SmallHD Cine 13 is a 13-inch 4K production monitor built for on-set creatives who need critical focus and a large, bright display. It weighs just 6.8 lbs and has a low-profile design. So you can rig it for almost any situation without adding bulk to your setup. As a result, 4K monitoring on set has never been more portable or accessible.

4K Clarity in Full Sunlight

The Cine 13 has a 3840×2160 resolution LCD display with over 1500 nits of brightness. This means you get a clear and unobstructed view of your production in full sunlight. You do not need a sunhood or viewing tent. In addition, 10-bit color depth gives you color-accurate images at all times, so what you see on screen truly reflects what the camera captures.

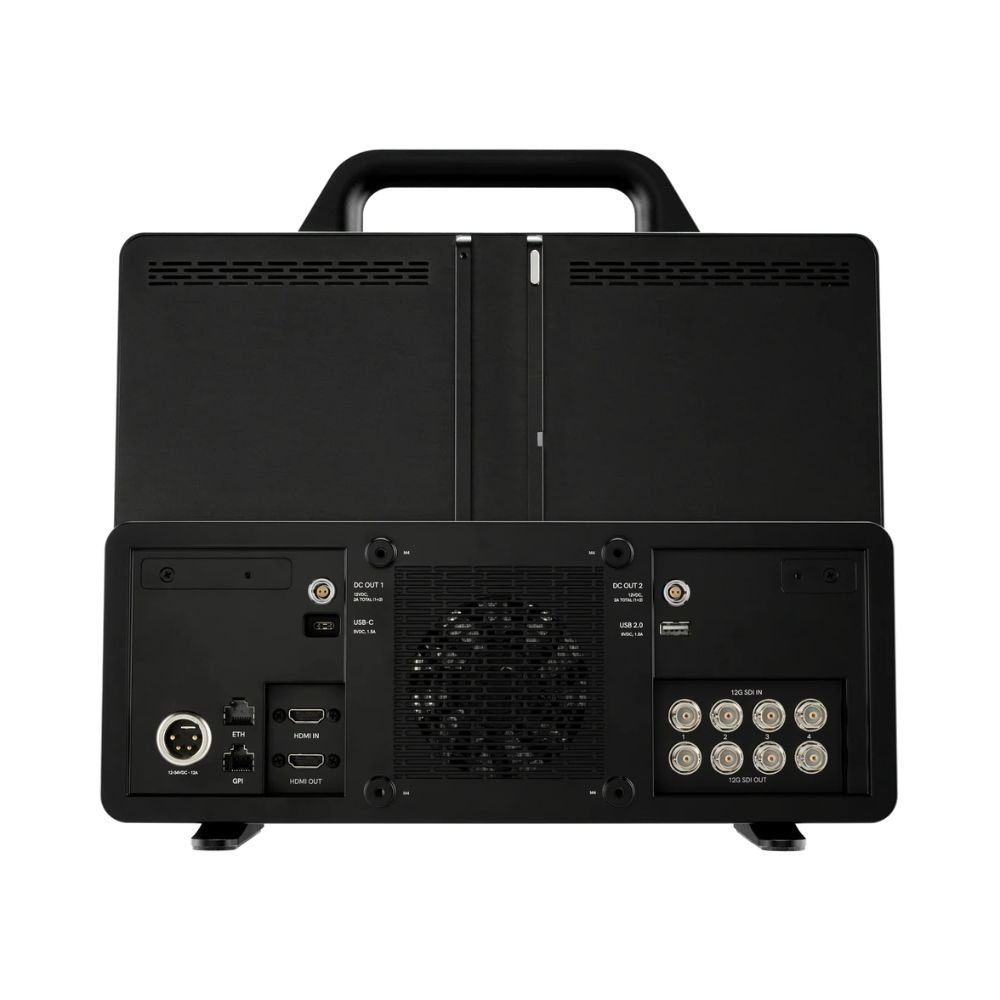

Professional Connectivity

The Cine 13 has four 12G-SDI inputs and four 12G-SDI outputs. It also has one HDMI 2.0 input and one HDMI 2.0 output. Power comes via a single 4-pin XLR input. Furthermore, hot-swappable dual battery inputs let you add Gold Mount or V-Mount battery plate attachments for flexible power on location. Two 2-pin accessory power outputs on the chassis let you power other accessories directly from the monitor.

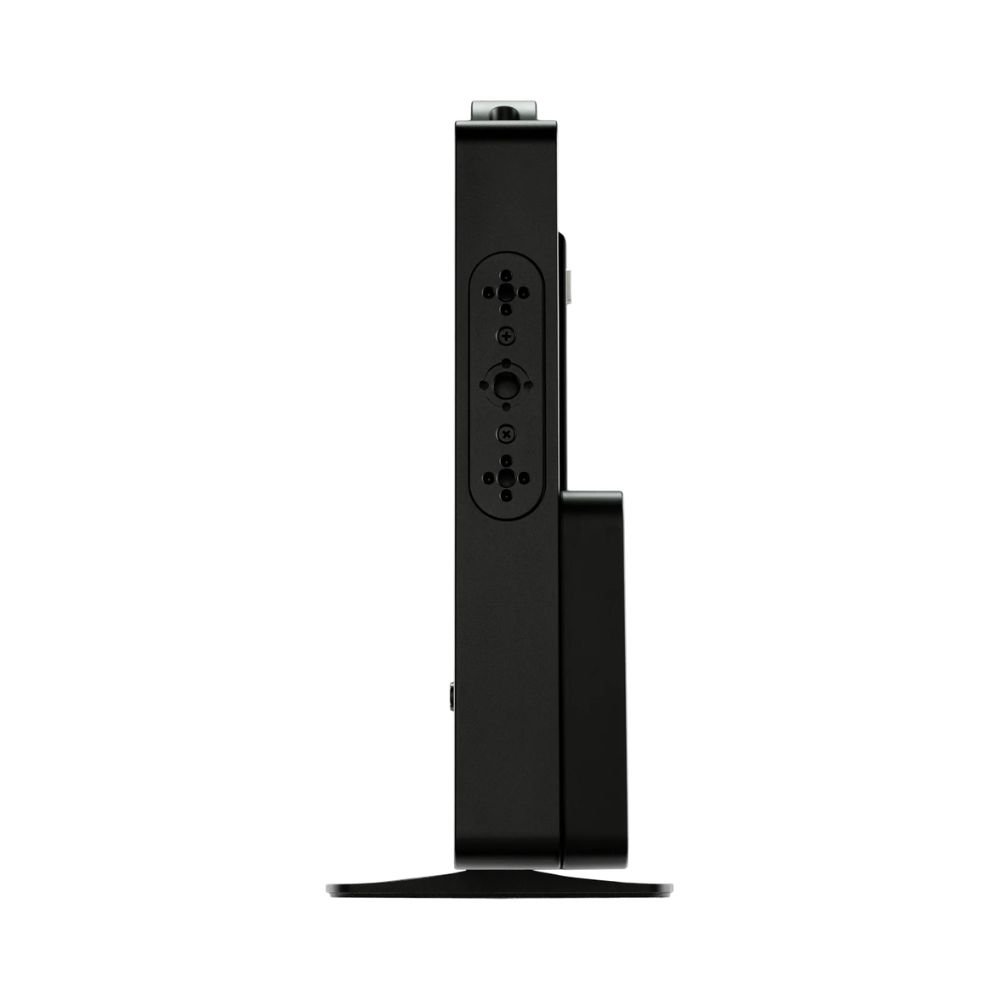

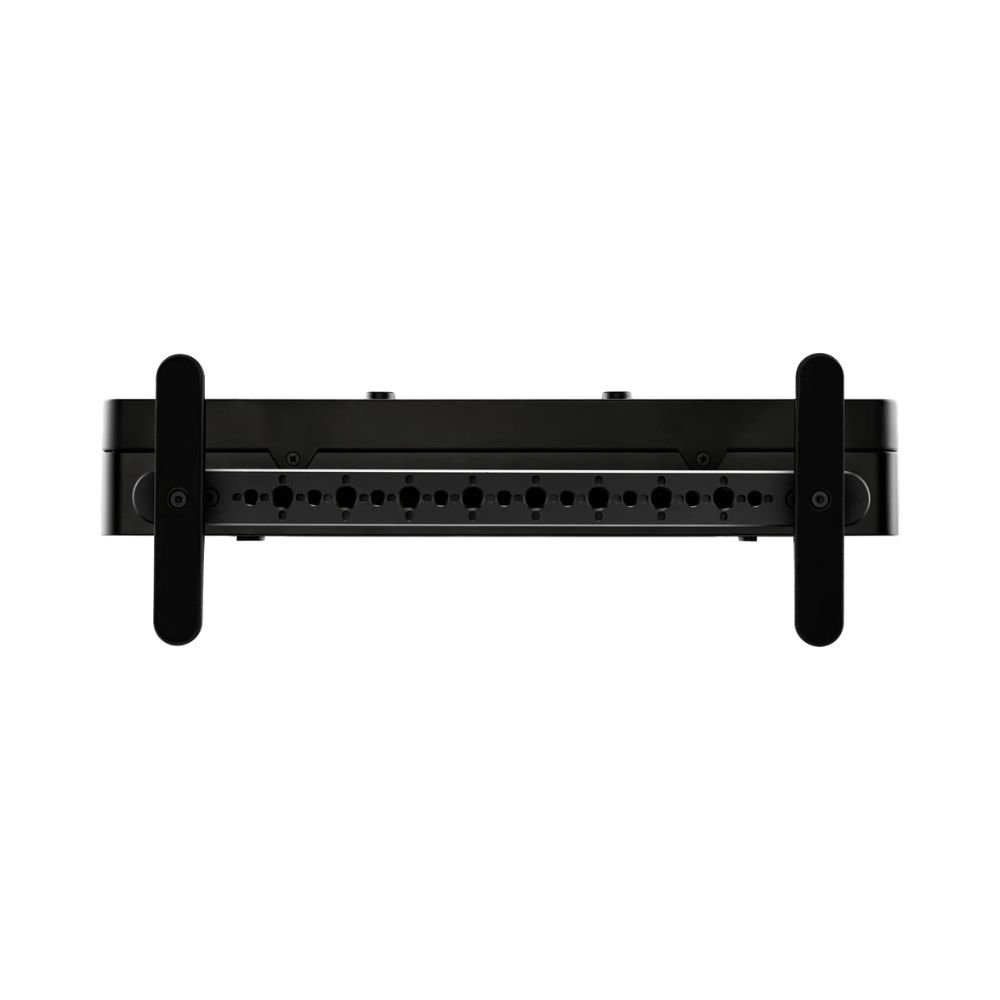

Unibody Smart Chassis

The Unibody Smart Chassis gives you an Arca Slide on Rail for battery and accessory mounting. It also has a lower mounting rail for ultimate flexibility when rigging on set. Together, these features make the Cine 13 one of the most versatile and adaptable large-format monitors available for field use.

Powered by PageOS

The Cine 13 runs on SmallHD PageOS. It lets you build custom Page Profiles and access all key monitoring tools in one place. These include Focus Assist, Exposure Assist, frame guides, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more. So you always have the right tool ready at the right moment on set.

Key Features

  • 13-inch LCD display with 3840×2160 resolution and 10-bit color depth
  • Over 1500 nits brightness — no sunhood or viewing tent needed
  • Weighs just 6.8 lbs with a low-profile design for easy rigging
  • Four 12G-SDI inputs and four 12G-SDI outputs
  • One HDMI 2.0 input and one HDMI 2.0 output
  • 1x 4-pin XLR power input
  • Hot-swappable dual battery inputs for Gold Mount or V-Mount plates
  • Two 2-pin accessory power outputs on the chassis
  • Unibody Smart Chassis with Arca Slide on Rail and lower mounting rail
  • SmallHD PageOS with custom Page Profiles and full monitoring toolkit
  • Focus Assist, Exposure Assist, LUTs, histogram, vectorscope, and waveform
Category Specification Details
Display Performance
Display Panel Panel Type & Protection IPS LCD Panel | Edgelit Backlight System | Hardened Screen Protection
Size & Resolution 13.3″ Diagonal (Classified as 13″) | Ultra HD 3840 x 2160 Native Resolution
Brightness & Contrast 1500 nits High-Bright Max Luminance | 1300:1 Static Contrast Ratio
Color Bit Depth 10-bit color workflow depth architecture (8-bit panel + 2-bit FRC)
Refresh Rate 48Hz to 60Hz Variable (Synchronizes adaptively with input source frame rate)
Interfaces
Connectivity Video Signal Ports High-bandwidth SDI Video BNC Infrastructure | HDMI Video Input/Output Ports
Audio Interfaces HDMI & SDI Embedded Audio | Built-In Front Bezel Monitoring Speakers | 1x 3.5mm 3-pin Stereo Headphone Jack Output | Up to 8-Channel Metering Display
Data & Control I/O 1x RJ45 Ethernet Base Terminal | 1x RJ45 GPI General Purpose Control Input | 1x SD Card Slot (Media/LUT loading)
Analog Formats Component & Composite Legacy Inputs Not Supported
Video Formats
Format Support 12G-SDI Format Suite • YCC 4:2:2 10-bit: DCI-4K/2160p (60/59.94/50/48/47.95)
• YCC 4:4:4 / RGB 10/12-bit: DCI-4K/2160p (30/29.97/25/24/23.98)
6G-SDI Format Suite • YCC 4:2:2 10-bit: DCI-4K/2160p (30/29.97/25/24/23.98)
• YCC 4:4:4 / RGB 10/12-bit: DCI-2K/1080p (60/59.94/50/48/47.95)
3G-SDI Format Suite • YCC 4:2:2 10-bit: 1080p (60/59.94/50) | 1080i (120/119.88/100)
• YCC 4:4:4 / RGB 10/12-bit: DCI-2K/1080p (30/29.97/25/24/23.98)
HD / SD-SDI Format Suite • HD-SDI: 1080p/psf (30 to 23.98) | 1080i (60/59.94/50) | 720p (60 to 23.98)
• SD-SDI: 480i59.94, 576i50
HDMI Subsystem Formats • YCC 4:2:2 12-bit / RGB & 4:4:4 8-bit: DCI-4K/2160p (60/59.94/50/48/47.95)
• RGB & YCC 4:4:4 (8/10/12/16-bit): Ultra-high compatibility matrix supporting 4K, 2K, Full HD, HD, and SD rates up to 240Hz frame configurations
Power
Power Specs DC System Input 1x XLR 4-pin DC Balanced Port (Accepts DC 12V to 34V Input Range | 18A Max Line Load | 210W Max Overhead)
System Power Consumption Monitor Base draw: 36.7W Continuous | With accessory load: Up to 117.9W Max Draw
DC Auxiliary Outputs 2x 2-pin Locking DC Power Outputs (12V / 2A combined load output limit for accessories)
USB Distribution Array • 1x USB-A (Front, 5V / 2.4A Power Delivery)
• 1x USB-A (Rear, 5V / 1.5A Power Delivery)
• 1x USB-C (Rear, 5V / 1.5A Power Delivery)
Battery Platform Options Battery Integration No Battery Plate Pre-Installed | Fully supports 1x Dual Gold Mount / V-Mount Dual-Voltage (14V/26V) System Battery Plate (Sold separately as ecosystem accessory)
General
Mechanical Specs Chassis Construction Anodized Aluminum Precision Unibody Structural Design
Dimensions (H x W x D) • Without feet and handle: 10.1 x 13.2 x 2.3″ / 25.65 x 33.53 x 5.84 cm
• With feet and handle: 12.4 x 13.2 x 4.7″ / 31.50 x 33.53 x 11.94 cm
Net Chassis Weight 6.8 lbs / 3.09 kg
Rigging Infrastructure Interchangeable accessory mount cheese-plates located on top and side panels with a matrix of multiple 1/4″-20 and 3/8″-16 anti-twist threads
Environmental Limits Operating Enclosure Limits: 32°F to 105°F / 0°C to 40.6°C
Regulatory Standards & Certifications
Compliance Global Certificates FCC, IC, CE, UKCA, BIS, RCM, RoHS Industry Standard Certified
  • 1 x SmallHD 4K Monitor Feet (Set)
  • 1x 8GB SD Card
  • 1x SmallHD Cleaning Cloth
  • 1x 24V Power Supply
  • 1x Mounting Rail for Cine 13
  • 1x Premium Monitor Handle for 4K Monitors
  • 1x Cine 13 Transport Screen Protector
