Dual Charger Adapter for Sony BP-U Batteries

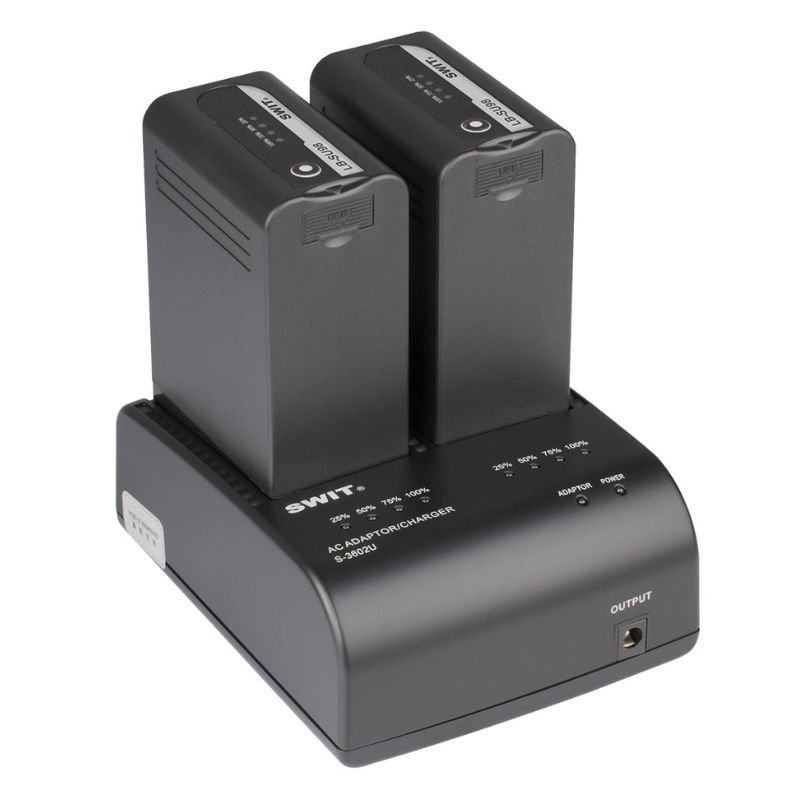

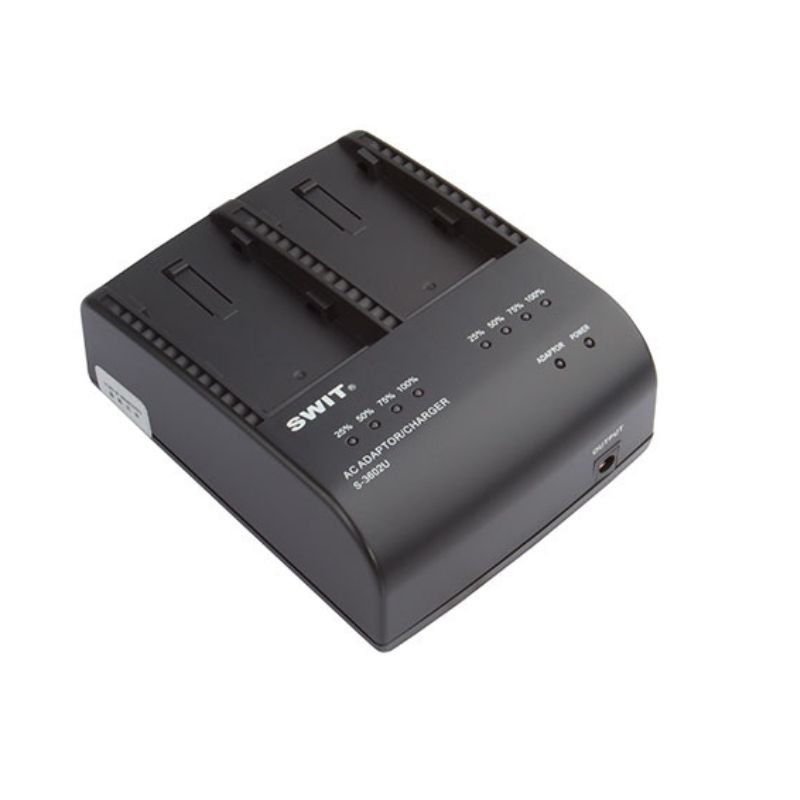

SWIT S-3602U is a dual channel charger for SWIT LB-SU98 battery and compatible with SONY BP-U series batteries.

• S-3602U has 2 charging channels, DC 16.7V, 1.9A output,and can charge 2 batteries sequentially to 75% capacity,and then charge both batteries simultaneously to full.
  The 4-level LED charging indicators are provided for eachchannel, which indicate the real time capacity by percentage when charging.

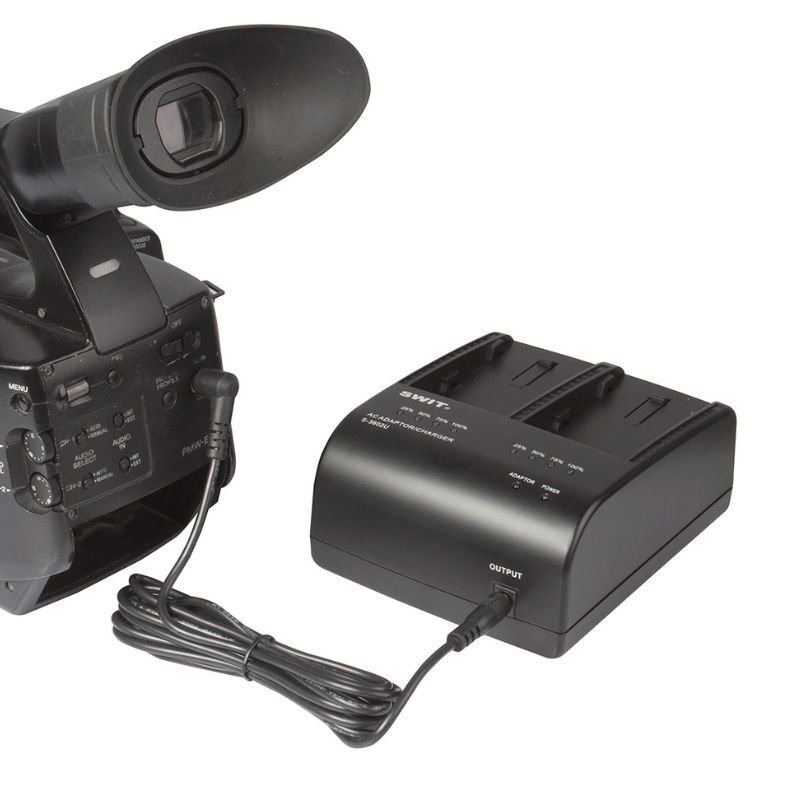

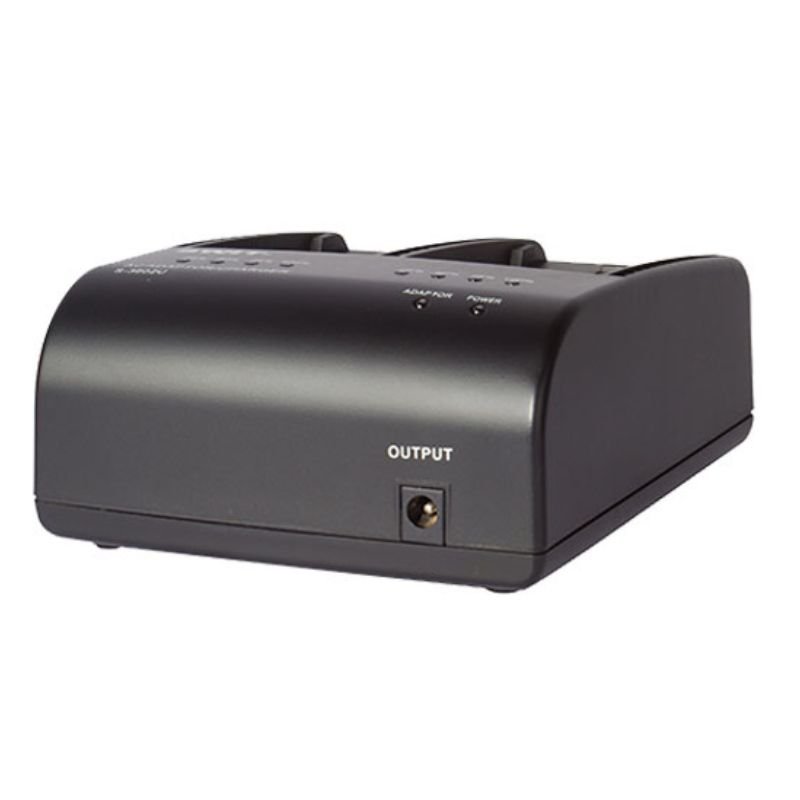

• S-3602U has a 5.5mm/2.1mm pole socket of DC12V, 1.9A adapting output. The package also provides a DC cable for adapting SONY cameras

Key Features

• Intelligent Dual-Channel Charging: Two channels with 16.7V, 1.9A output charge sequentially to 75%, then simultaneously to full, with 3-hour single-battery and 5-hour dual-battery charging times.

• DC Adapter Output: Features a 5.5mm/2.1mm pole socket for 12V, 1.9A DC output, with a DC cable for Sony cameras, supporting simultaneous charging and powering.

• Wide Compatibility: Supports SWIT S-8U63/S-8U65/S-8U95 and Sony BP-U35/U70 batteries, with a two-period charging curve (constant-current, constant-voltage) for safe charging.

• LED Charge Indicators: Four-level LED indicators per channel display real-time charge percentage, enhancing monitoring during shoots.

• Portable and Safe: Weighs 0.4kg, measures 136 x 110 x 47mm, operates in 0°C to +40°C, supports 100–240V AC input, and includes multiple safety protections
