Description

K15 1500nits Field Monitor

• 15.4“ 1500nits Sunlight View 1920×1200 IPS Panel of 10-bit process: The K15 field production monitor, equipped with a brilliant 15.4” FHD 1500nits high bright display, ensures clearly visible even under direct sunlight. With durable all-aluminum housing, screen protective glass and rubber covers on the 4 corners, the K15 offers comprehensive protection against the elements and accidental impacts.
• Near OLED Deep Black: The K15 monitor boasts an unparalleled superior contrast ratio, delivering clear and deep black levels, ensuring that every detail is captured with exceptional depth and realism.
• Compact Handy Size: The K15 monitor features a 15.4-inch screen, enhanced by a narrow bezel design that contributes to its compact and portable form factor, which makes the K15 an ideal choice for directors and focus pullers who require a monitor that can easily fit into tight spaces and travel with them on location.
• Rubber Corners Protection: With durable all-aluminum housing, screen protective glass and rubber covers on the 4 corners, the K15 offers comprehensive protection against the elements and accidental impacts.
• Screen Protective Glass: The K15 monitor provides a high-transparency screen protective glass, clear and solid. It features four non-detachable screws, allowing for easy installation and removal without any tools.

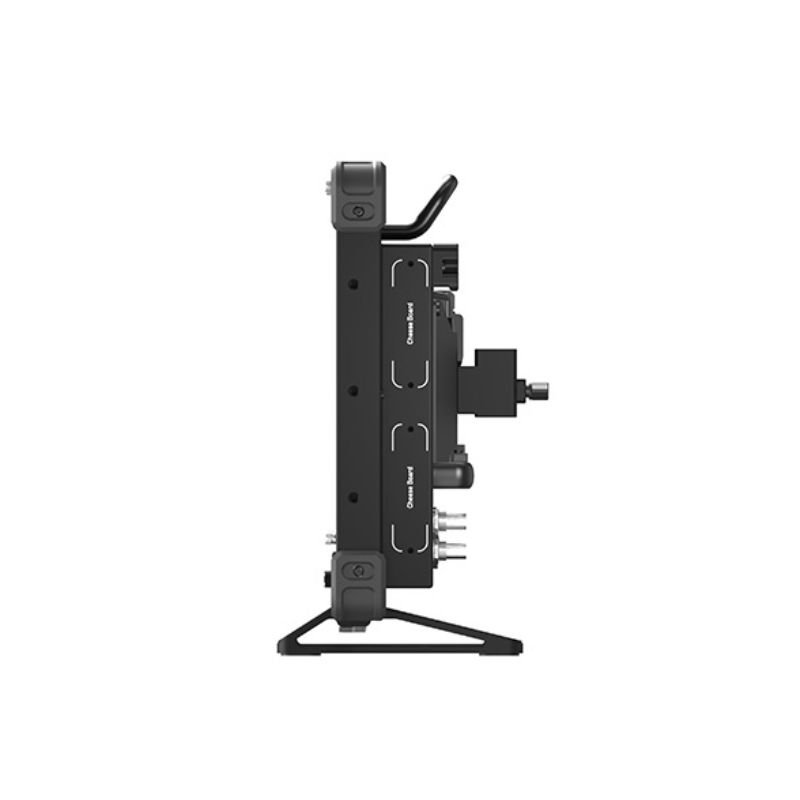

• C-stand Adaptor & Cheese boards: The K15 monitor comes standard with 2× cheese boards, to accommodate accessories like wireless video receivers. The cheese boards can be detachably mounted in 6 different positions on the back and sides. Additionally, the K15 also includes a VESA to C-stand Adaptor, making it incredibly convenient for video production crews to mount on a C-stand light stand for monitoring in various shooting environments.
• SCENE OS Operation: The unique Scene OS operating system offers unparalleled customization and flexibility to the field production monitoring. This system allows to create up to 8 customizable Scenes, and within each Scene, users can define 8 shortcuts of the monitor tools, for quick access to essential tools and swift Scene transitions. This feature streamlines workflows and enhances the creative process by providing instant access to the most-used functions.
• Delog and User LUT Upload: The K15 monitor has built-in a variety of Delog LUTs from camera manufacturers including ARRI, RED, SONY, Canon, BMD, Panasonic, Nikon and Fuji, supports Gamma 2.2/2.4 /2.6 SDR and HLG/PQ HDR. The monitor also supports up to 10x User 3DLUTs upload by USB.
• Auto Calibration within 2 mins: The K15 monitor supports fully automatic color calibration without computer connecting. Use the X-rite CC Display Pro HL Probe, connect to the monitor’s rear USB-C port, and simply by menu operating, you can initiate the automatic 3DLUT color calibration process, which is completed in just 2 minutes.
• Custom Aspect Ratio: The K15 monitor supports the customization of any aspect ratio for composition guides, allowing you to mark any desired aspect ratio required for your video project on a 16:9 screen.
• Custom False Color Range: The K15 monitor supports custom False Color exposure ranges, allowing you to set exposure parameters for Black Clip, Near Black, White Clip, Near White, Tone1 range and Tone2 range, to ensure precise exposure control.
• Anamorphic De-squeeze: K15 supports Anamorphic lens correction at magnification factors of 1.33x, 1.4x, 1.5x, 1.6x, 1.8x, 1.9x, and 2x, for cinematographers to correct the unique horizontal squeeze and aspect ratio distortions in real-time.
• Adjustable Zebra Stripes: The K15 monitor offers the flexibility to customize exposure settings by allowing users to define their own overexposure and underexposure areas. With this tool, you can accurately define what constitutes overexposed and underexposed areas in your footage. The monitor displays blue/white zebra stripes for overexposure and black/white zebra stripes for underexposure.

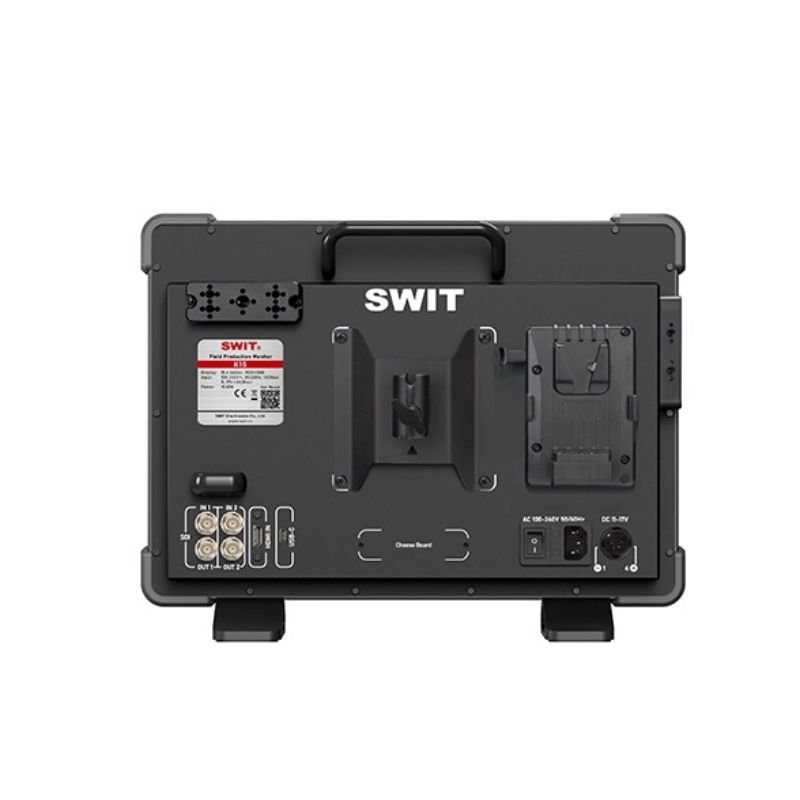

Interfaces:

• The K15 monitor provides:
• 3G-SDI 2 inputs; 2 loop outputs;
• 4K-HDMI 1.4 input;
• USB-A Firmware and User Lut input;
• USB-C calibration probe input;
• AC 100-240V power input;
• DC 11-17V 4-pin XLR input;
• V-mount battery plate input.

Key Features

• 15.4-inch 1920×1200 10bit IPS Panel
• 1500nits high bright sunlight view
• Near OLED high contrast deep black
• Rubber corner anti-crash guards
• 2K/3G/HD/SD-SDI & 4K-HDMI Monitoring
• Built-in Multi-camera Delog Luts SDR & HDR
• 10× User 3DLuts cubes upload by USB-A
• Automatic 3DLuts calibration by USB-C
• Scene OS – 8 pages create quick switching
• 4× function keys assigned for each scene
• Anamorphic de-squeeze
• Custom False color / Zebra values
• Waveform / Vector scopes / Histogram
• Peaking / Focus assist / Crosshatch / Safe area
• SDI audio meters / Timecode display
• AC / 4-pin XLR / V-mount battery power
