Description

TWO-chnnel Simultaneous V-Mount Charger

Charging current: 3A per channel. The portable charger S-3822S can charge 2 V-mount batteries simultaneously. The charging output is DC 16.8V, 3A×2.

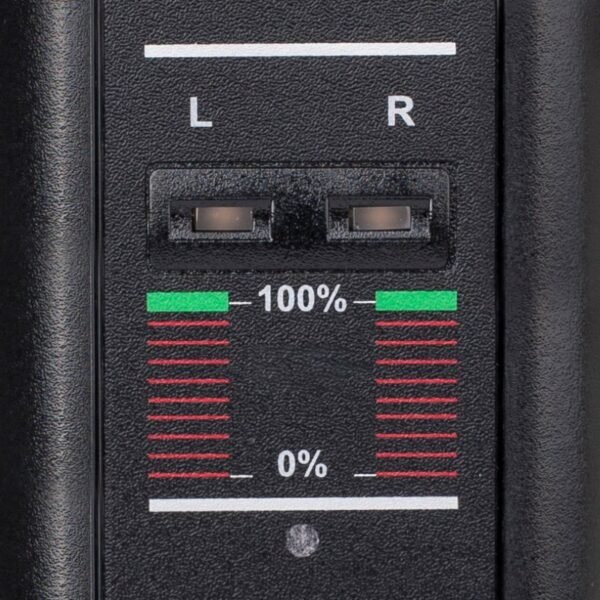

LED Charging Indicators

S-3822S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:

Red: the battery capacity is below 100%

Green: fully charged

Red flash: the charging may have problem

AC-DC Adapting Output

S-3822S has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822S can be used as AC-DC adaptor of DC 15V, 6A, 90W output.
Please note the AC-DC adapting output will not work when battery is charging.

Key Features

• Simultaneous 2-Channel Charging: Charges two V-Mount batteries at 16.8V, 3A per channel, supporting fast charging for lithium-ion batteries (e.g., 2–3 hours for 160Wh batteries).

• AC-DC Adapter Output: Includes a 4-pin XLR female connector for DC 14.4V, 5A, 72W output to power cameras or accessories when not charging, using optional SWIT S-7102 cable.

• LED Charging Indicators: Displays red (charging, <80%), yellow (charging, >80%), and green (complete) for each channel, with red flashing for charging issues.

• Safety Protections: Features overcurrent, overcharge, and high-temperature protection, with a two-period charging curve (constant-current, constant-voltage) to prevent battery damage.

• Compact and Portable: Weighs 1.0kg, measures 228 x 140 x 86mm, supports 100–240V AC input, and operates in 0°C to +40°C
