Description

High Load V-mount Battery Pack

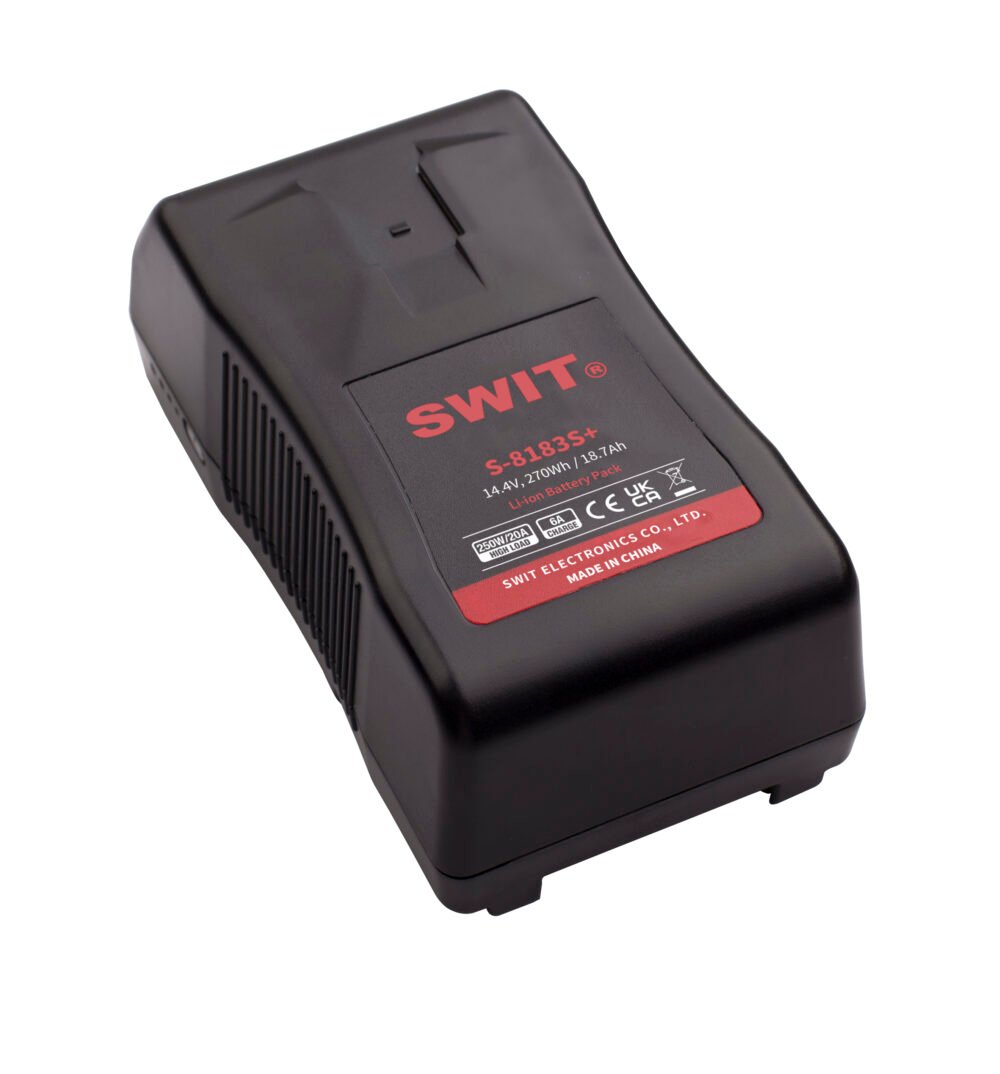

The SWIT S-8183S+ 14.4V 270Wh High-Load V-Mount Battery (SKU: S-8183S+) is a lithium-ion battery designed for high-power cine cameras and accessories, offering a 270Wh/18.75Ah capacity and a 250W/20A constant output. It powers demanding equipment like ARRI Alexa or RED cameras for approximately 3 hours at full load, with a 14.4V D-Tap output (120W/10A max) for monitors, lights, or wireless transmitters. Supporting 6A fast charging, it reaches 80% in 2.5 hours and full charge in 3.8 hours using chargers like the SWIT S-3812S. A 4-level LED gauge displays remaining capacity. Comprising 24 high-load 18650 cells, it maintains performance even at 1% capacity, with multiple circuit protections for safety. Weighing 1.3kg and measuring 165 x 90 x 66mm.

Key Features

• 250W/20A High-Load: Even only 1% capacity remains, S-8183S+ still can output at least 250W/20A high load, for high power equipment like cine cameras and cine lights, and will not reduce battery life during long time high power output.
• 270Wh High Capacity: Updated from S-8183S, the S-8183S+ provides 270Wh/18.75Ah higher capacity, to prolong the running time on equipments.
• 6A Fast Charging: S-8183S+ supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.
• Build-in D-tap DC Output Socket: A D-tap DC output socket is equipped on the top side of S-8183S+ battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
• The Max Power from D-tap is 120W, 10A.

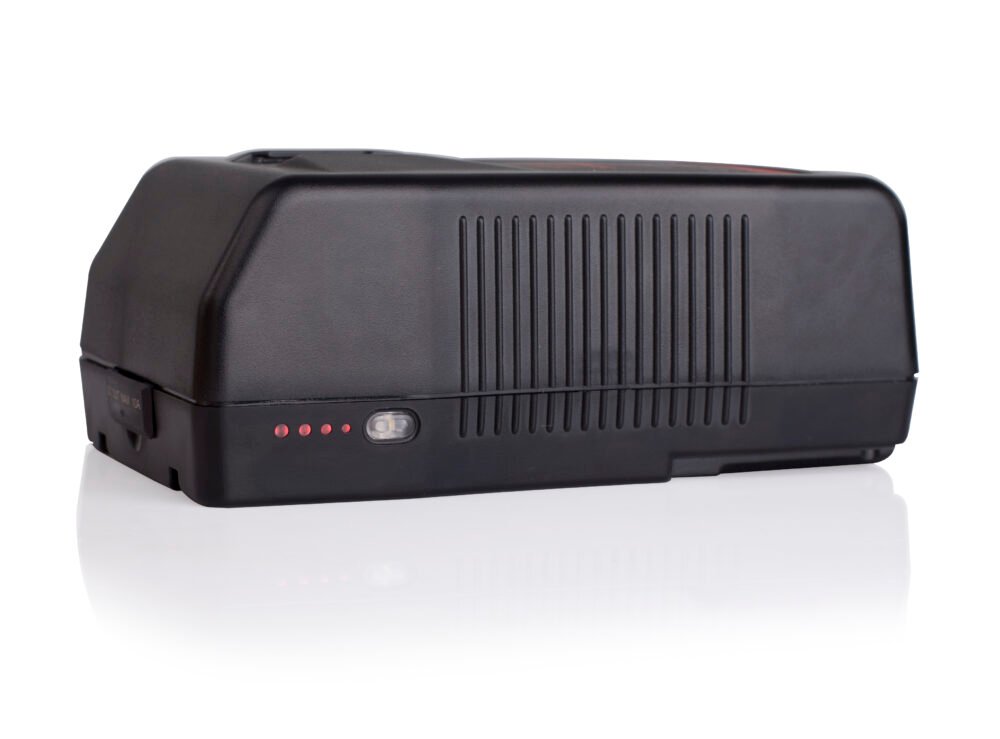

• 4-level LED Power Indicator: On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
