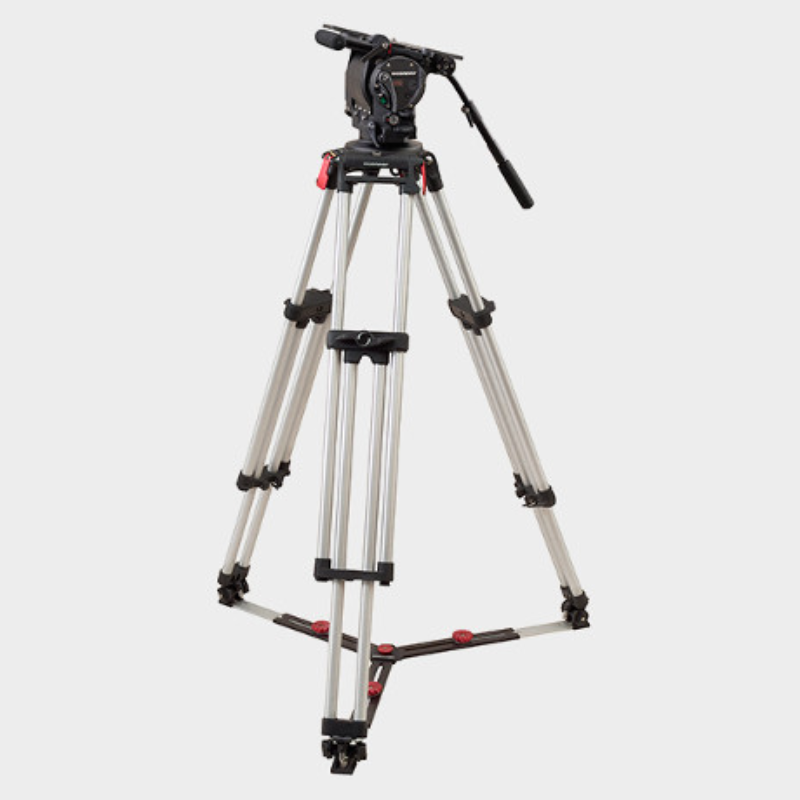

OConnor 2575D Head & Cine HD 150mm Bowl Tripod System

0 out of 5
( There are no reviews yet. )

73.000,00 AED ex. VAT
76.650,00 AED inc. VAT

Ultimate 2575D Head & Cine HD 150mm Bowl Tripod System with Floor Spreader

Availability: 1 in stock SKU: C2575-CINE150-F Categories: , , Tag:

Related Products

Description

[vc_row][vc_column][vc_column_text]

Description

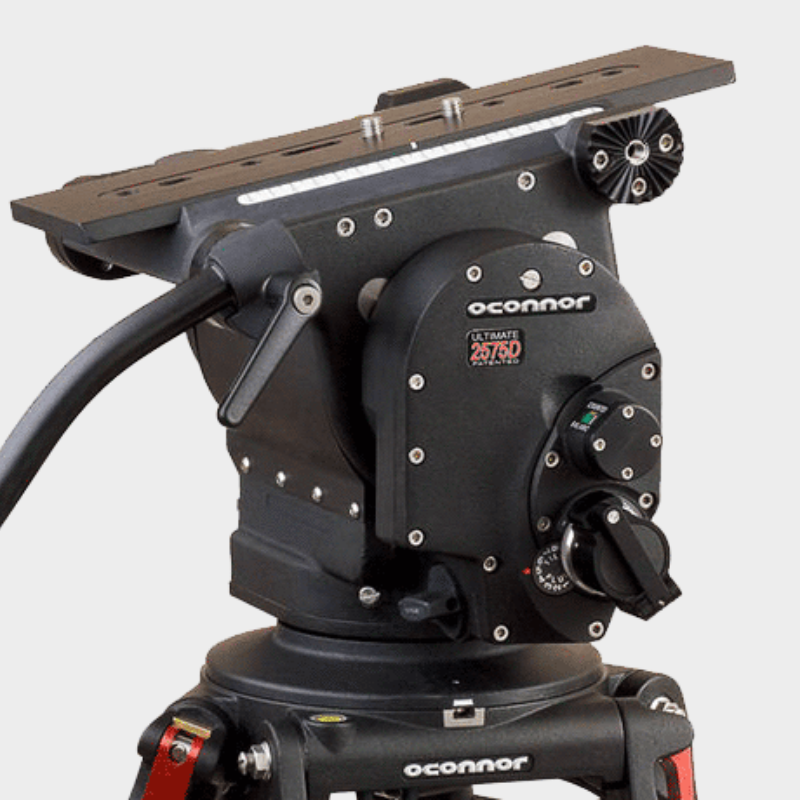

2575D

With its famous features the 2575 fluid head has become the standard for film production.  The head includes OConnor’s patented sinusoidal counterbalance system for true, accurate balance at any point in the tilt range. Add to this OConnor’s stepless, ultra-smooth pan & tilt fluid drag, and you’ve got ultimate control and stability for film style shooting.

As the next generation head of the highly successful 2575 series, the 2575D retains a large number of features and functions from the older heads but includes many new features:

  • Platform controls on the operator’s side of the head
  • Platform release lever with a one touch finger actuated safety release catch – allowing for one “finger” or hand action to undo the safety catch and open the lever
  • Dual platform scales
  • Platform with 4 handle rosettes
  • Soft hand rest on left hand side

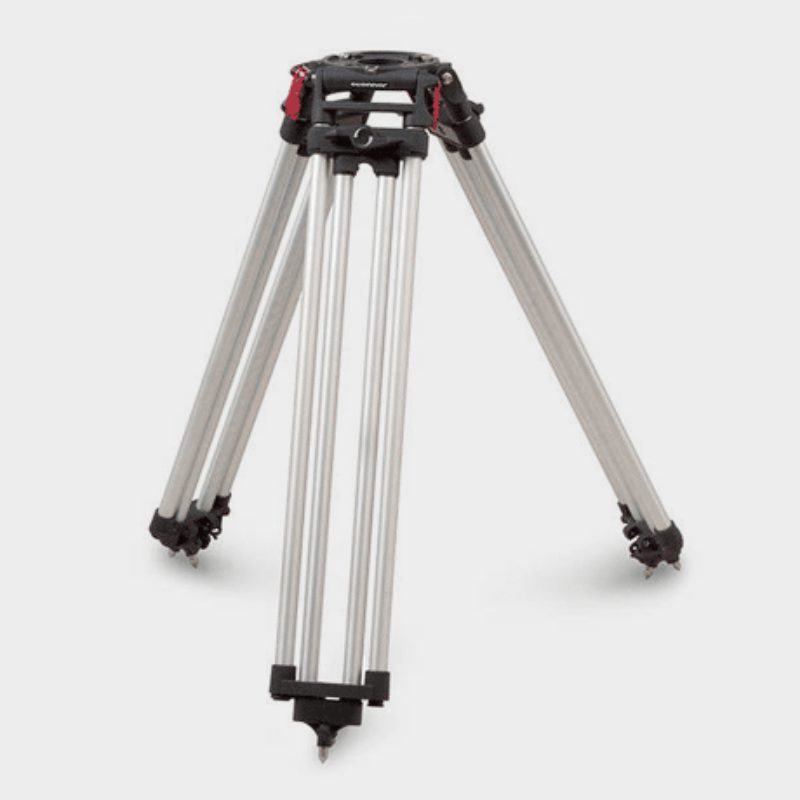

Cine HD

Heavy duty aluminium tripod for payloads up to 309 lbs. (140 kg)

The CINE HD tripod is the perfect choice for heavy payloads that must be supported in a safe and reliable manner.

[/vc_column_text][/vc_column][/vc_row]

Feature 2575D CINE HD
Model 2575D CINE HD
Capacity @ 4 in. (102 mm): 133 lbs. (60.5 kg) <br> @ 6 in. (152 mm): 105 lbs. (47.7 kg) <br> @ 8 in. (203 mm): 87 lbs. (39.5 kg) 309 lbs. (140 kg)
Platform See below –
Handle(s) 30° –
Bases Mitchell, 150mm Mitchell or 150 mm
Tilt +90° / -90° –
Height 8.4 in. (21.3 cm) Maximum: 69.2 in. (175.8 cm) <br> Minimum: 33.6 in. (85.3 cm)
Width 12.4 in. (31.5 cm) Collapsed: 11.1 in. (28.2 cm)
Depth 8.6 in. (21.8 cm) –
Weight 22.9 lb. (10.4 kg) 29.3 lbs. (13.3 kg) (with Spreader)
Material – Aluminium
Top Casting – Mitchell or 150 mm
Collapsed Length – 240.4 in. (103 cm)
Includes – Spreader sold separately

System includes:

  • 2575D Fluid head Package
  • C1234-0005Cine 150mm Bowl Tripod

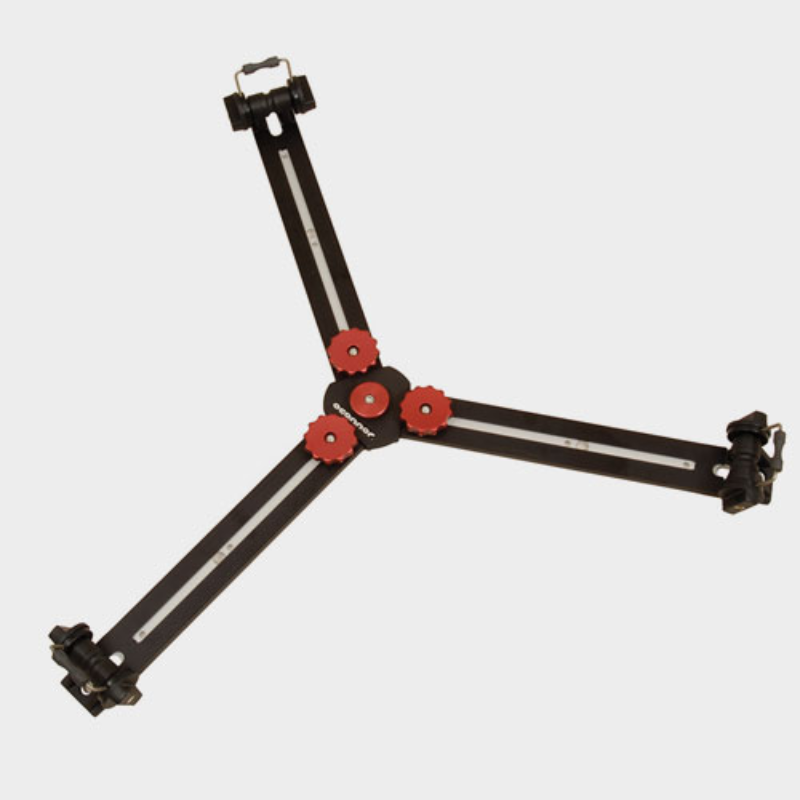

  • C1221-0003SpreaderC1222-0015
