Manfrotto 509 Fluid Video Head & 545GB Tripod System
6.600,00 AED Excluding VAT
Key Features
- Variable fluid drag system on pan and tilt for smooth
- 4 step counterbalance system
- Set up fast with a clever sliding camera plate
- Inbuilt Ø100mm levelling half ball
- Highest safety standards ensured by UNI/PdR 105:2021 compliance
- Description
- Specifications
- Additional information
- In Box
- Reviews (0)
Description
Description

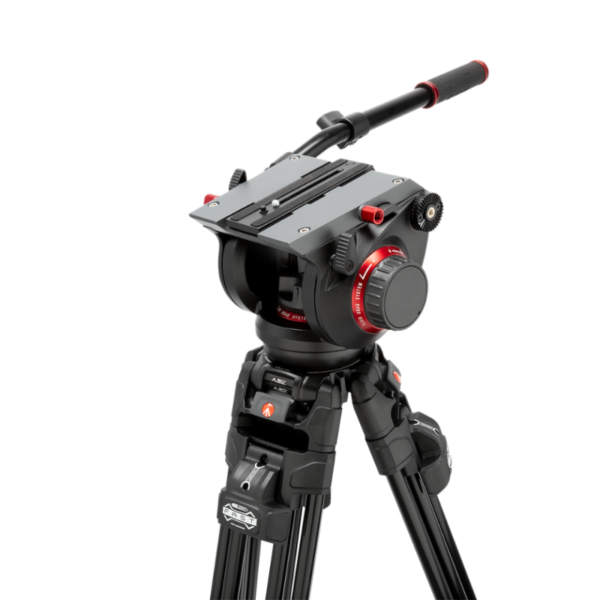

The 509HD,545GBK Manfrotto video system includes the 509 Fluid Video Head with incorporated 100mm half ball, the 545GB professional aluminium twin leg tripod with ground spreader, and the handy MB MBAG100PNHD tripod bag.
The Manfrotto 509 fluid video head features variable fluid drag system in both pan and tilt which allow smooth movements, a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. And a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.. Easy link 3/8” thread connections allows an external monitor or other accessory equipment to be fitted.
It also features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast.
The 545GB aluminium twin leg tripod comes with a 100mm bowl for easy, effortless mounting, and the tripod can be used with various dollies so you can enjoy more shooting freedom. With the telescopic ground spreader, you can set your leg angles with even greater precision.
Specifications
Feature | Specification 509HD,545GBK | Specification MVK509TWINFA |
---|---|---|
Weight | 9.805 kg | 7.8 kg |
Safety Payload | UNI/PdR 105:2021, 13.5 kg | UNI/PdR 105:2021, 13.5 kg |
Counterbalance Weight | 8.5 kg | 8.5 kg |
Maximum Height | 172 cm | 173 cm |
Min Height | 48 cm | 43.5 cm |
Bubble Spirit Level | 1 | 1 |
Center of Gravity | 125 mm | 125 mm |
Carrying Bag Included | MB MBAG100PNHD | MB MBAG100PN |
Center Column | No centre column | No centre column |
Certifications | WEEE; RoHS | WEEE; RoHS |
Closed Length | 84 cm | 89.5 cm |
Colour | Black | Black |
Top Attachment | 1/4″ screw, 3/8″ screw | 1/4″ screw, 3/8″ screw |
Ball Flat | 100 Ball | 100 Ball |
Powered by | Lithium | Lithium |
Easy Link | Yes | Yes |
Front Tilt | -60° / +90° | -60° / +90° |
Head Type | Video/Fluid Head | Video/Fluid Head |
Leg Type | Twin | Twin |
Leg Angles | from 29° to 63° | 20°, 50°, 70° |
Leg Lock Type | Flip Lock | Flip Lock |
Leg Sections | 3 | 3 |
Material | Aluminium | Aluminium |
Maximum Working Temperature | 60 °C | 60 °C |
Minimum Working Temperature | -20 °C | -20 °C |
Pan Bar Included | Yes | Yes |
Pan Drag | Continuously adjustable from 0 to max level | Continuously adjustable from 0 to max level |
Panoramic Rotation | 360 ° | 360 ° |
Plate Type | 509PLONG | 509PLONG |
Quick Release | Yes | Yes |
Spreader | Low level – variable arm length | Low & Mid level – Variable arm leg |
Tilt Drag | Continuously adjustable from 0 to max level | Continuously adjustable from 0 to max level |
Accessory Compatibility | 502HLV; 509HLV; 114MV; 181B; 537SPRB; 565 | 502HLV; 509HLV; 114MV; 181B; 565 |
Additional information
Additional information
Tripod Spreader Type | Ground Spreader, Mid Spreader |
---|
In Box
- Manfrotto 509HD Professional Video Head
- Ground or Mid-Level Spreader, depends of the model
- Tripod Padded Bag
