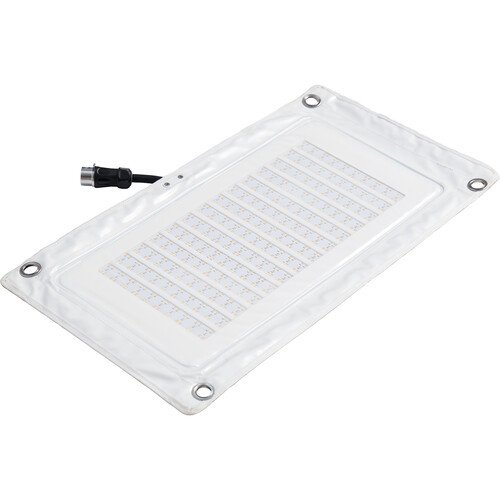

Aputure INFINIMAT 1×2′ tunable color mat light V-mount
6.220,00 AED Excluding VAT
- Modular Full-Color RGBWW LED Light Mat
- Universal Control Box allowing you to control multiple LED mats
- CCT 2,000K – 10,000K
- Skirt & Inflatable Softbox Included
- Multiple Mounting/Rigging Methods
- Control Box With V-mount 400W
- CRI 96, TLCI 97, CQS 95
- Description
- Specifications
- In The Box
- Reviews (0)
Description
Overview
Double the Output
INFINIMATs deliver significantly higher brightness than competitors of the same size, with some models offering up to twice the intensity. This increased output makes the INFINIMATs more versatile, allowing them to perform well in various production settings, even in daylight.
One Controller, Infinite Options
INFINIMAT Control Boxes are universal across the entire family, making it easy and quick to swap sizes or power arrays on set. You can control up to 3 INFINIMATs with the 400W Control Box and up to 5 mats with the 1600W box.
Infinite Shapes, Minimal Size
You can use INFINIMATs with or without the airbag, strapping them in place or mounting them to their frames. The airbags quickly inflate and deflate, and the lights occupy less space on set compared to traditional diffused setups like book lights. Even the 20×20 model sets up faster than a standard overhead rig. When not in use, INFINIMATs pack down small for easy storage.
Pixel Control at Scale
All INFINIMATs are color tunable and configured in 1×2 or 2×2 pixels. You can control the INFINIMAT pixels over DMX systems to create active motion effects.
Rental Grade Construction
INFINIMATs are built to last. The IP65 weather protection ensures a sealed system, and metal backing plates provide heat dispersion, rigidity, and physical protection for the LEDs. The mats and control box feature a modular design for easy servicing.
Ultra Low Dimming
INFINIMATs use a dual-dimming internal control system, allowing them to dim to extremely low levels without color shift. They also offer fine gradients for a smooth transition. You can dim them to as low as 0.1%, which is up to ten times dimmer than the competition.
Portable Travel Kits
INFINIMATs fit inside their travel cases for easy shipping. On set, you can stage them in their included zipper bags, taking up minimal space while remaining ready for use. On the 4×4 and smaller sizes, the airbag stores deflated on the mat, saving both setup time and storage space.
Specification | Details |
---|---|
CCT | 2,000K – 10,000K |
CRI | ≥96 |
TLCI | ≥97 |
CQS | ≥95 |
SSI (Tungsten) | 84 |
SSI (D56) | 73 |
TM-30 RF (Average) | 92 |
TM-30 RG (Average) | 100 |
Max Power Consumption | 111W |
Max Power Output | 81W |
Weather Resistance Rating | IP65 |
Pixel Count | 1 pixel |
Pixel Module | 1×2 |
Softbox Inflation Time (Air Pump Mini) | 18 sec |
Full-Inflation Duration | 7 days |
Operating Voltage DC1 & DC2 | 12V-16.8V / 22V-33.6V |
Operating Voltage AC | 100V ~ 264V |
Operating Temperature | -20°C ~ 50°C |
Storage Temperature | -20°C ~ 85°C |
Control Methods | On-board, Sidus Link App, DMX/RDM, CRMX, etherCON |
Firmware Upgradeable | Sidus Link, USB Drive |
Wireless Range (Bluetooth & CRMX) | ≤100m / ≤328.1ft |
Control Box Type | INFINIMAT Control Box 400W |
Control Box Fan Noise Levels High Speed Mode | 29.3 dBA |
Control Box Fan Noise Levels Medium Speed Mode | 24.7 dBA |
Weight INFINIMAT 1×2 | 1.00kg / 2.2lbs |
Weight INFINIMAT Air Pump Mini | 0.24kg / 0.53lbs |
Weight Control Box 400W | 7.2kg / 15.87lbs |
Weight Inflatable Softbox 1×2 | 0.54kg / 1.19lbs |
Weight Light Control Skirt 1×2 | 0.49kg / 1.07lbs |
Weight Light Control Grid 1×2 | 0.46kg / 1.01lbs |
Carrying Case (INFINIMAT & Softbox Pack 1×2) | 4kg / 8.82lbs |
Carrying Case (Control Box 400W Pack) | 2.9kg / 6.39lbs |
Dimensions INFINIMAT 1×2 | 66.00 x 34.00cm / 2.17 x 1.12ft |
INFINIMAT Air Pump Mini | 3.60 x 11.40 x 12.60cm / 1.42 x 4.49 x 4.96in |
Control Box 400W | 33.50 x 22.00 x 24.00cm / 13.19 x 8.66 x 9.45in |
Inflatable Softbox 1×2 | 66.00 x 34.00 x 17.00cm / 2.17 x 1.12 x 0.56ft |
Light Control Skirt 1×2 | 190.00 x 49.00cm / 74.80 x 19.29in |
Light Control Grid 1×2 | 60.00 x 38.00cm / 1.97 x 1.25ft |
Carrying Case (INFINIMAT & Softbox Pack 1×2) | 76.50 x 47.00 x 26.00cm / 30.11 x 18.50 x 10.23in |
Carrying Case (Control Box 400W Pack) | 43.50 x 39.50 x 31.40cm / 17.13 x 15.55 x 12.36in |

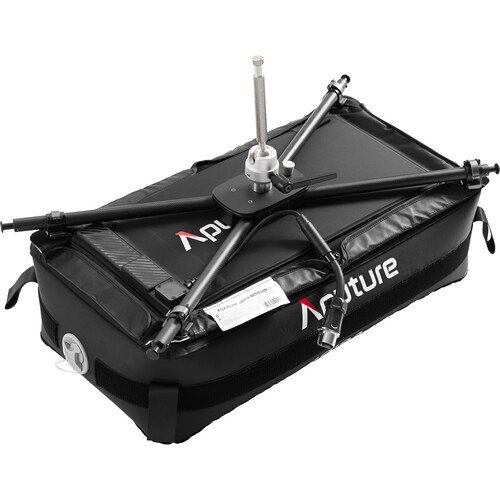

- Carrying Case for INFINIMAT & Softbox Pack
- Aputure INFINIMAT 1×2
- Aputure INFINIMAT 7.5m Head Cable (400W)
- Aputure INFINIMAT Mounting Bracket 1×2
- Aputure K-Mount Arm w/ Straight 5/8” Pin
- Aputure INFINIMAT Inflatable Softbox 1×2
- Aputure INFINIMAT Light Control Skirt 1×2
- Aputure INFINIMAT Light Control Grid 1×2
- Aputure INFINIMAT Patch Kit
- Aputure INFINIMAT Air Pump Mini
- Carrying Case for Control Box 400w Pack
- Aputure INFINIMAT Control Box 400W (V-Mount)
- Aputure True1 AC Power Cable – 6m
- Aputure K-Mount Style Mounting Clamp
