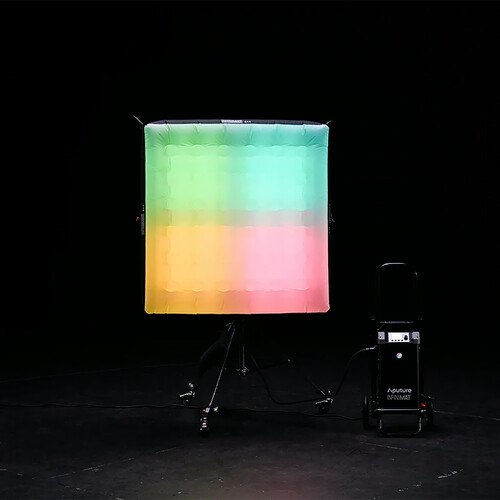

INFINIMAT 4×4 Tunable Mat Light

The Aputure INFINIMAT 4×4′ Tunable Color Mat Light is a complete 4x4ft mat light system with a clear inflatable airbag and 1,600W control box. This rugged 4-pixel mat light helps save space and time while the inflatable airbag provides rigidity and diffusion.

High Output and Flexible Setup

INFINIMAT delivers significantly higher brightness than competitors of the same size, with up to double the intensity. This increased output makes it useful in a variety of production settings, even in daylight. The clear airbag works with optional diffusion to provide a smooth finish and selectable softness.

You can use the INFINIMAT with or without the airbag, strap it in place, or mount it to its frame. The airbag inflates quickly and takes less space than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.

Pixel Control and Dimming

The INFINIMAT 4×4 features 4 pixels with a 2×2 pixel module. All INFINIMATs support color tuning and can be configured with other INFINIMATs in pixel arrays. Pixel control works through Sidus Link Bluetooth and DMX/CRMX for active motion effects.

The dual-dimming internal control system allows extremely low dimming without color shift and provides fine gradients for smooth transitions. Dimming reaches as low as 0.1%, up to ten times dimmer than the competition.

Control and Rental-Grade Design

The universal INFINIMAT Control Boxes make it simple to swap sizes or power arrays on set. The Control Box 400W can control up to three INFINIMATs, while the Control Box 1600W can control up to five mats. This 4×4 system uses the INFINIMAT Control Box 1600W.

Control methods include on-board control, Sidus Link App, DMX/RDM, CRMX, and etherCON. Firmware upgrades work through Sidus Link and USB Drive. Bluetooth and CRMX provide a wireless range of up to 100m / 328.1ft.

IP65 weather protection provides a sealed system. Metal backing plates support heat dispersion, rigidity, and physical protection for the LEDs. The mat and control box use a modular internal design for easy service. The light operates from -20ºC to 50ºC and stores from -20ºC to 85ºC.

Portable Travel System

The INFINIMAT stores inside its rolling case for shipping and can be staged in its included zipper bag on set. On the 4×4 and smaller sizes, the airbag stores deflated on the mat to save setup time and storage space. The Air Pump Mini inflates the 4×4 softbox in 1 minute 50 seconds, while full inflation lasts for up to 7 days.

The INFINIMAT 4×4 measures 121.0 x 121.0cm and weighs 8.36kg. The system also includes a clear inflatable softbox, 1-stop and 2-stop diffusion cloth, light control skirt, light control grid, Air Pump Mini, Control Box 1600W, and rolling cases.

Key Features

• 4x4ft tunable color mat light system
• 2,000K–10,000K CCT range
• CRI ≥96 and TLCI ≥97
• 4 pixels with 2×2 pixel module
• IP65 weather protection
• 0.1% minimum dimming without color shift
• Sidus Link, DMX/RDM, CRMX, etherCON, and on-board control
• Includes clear inflatable airbag and 1,600W control box
