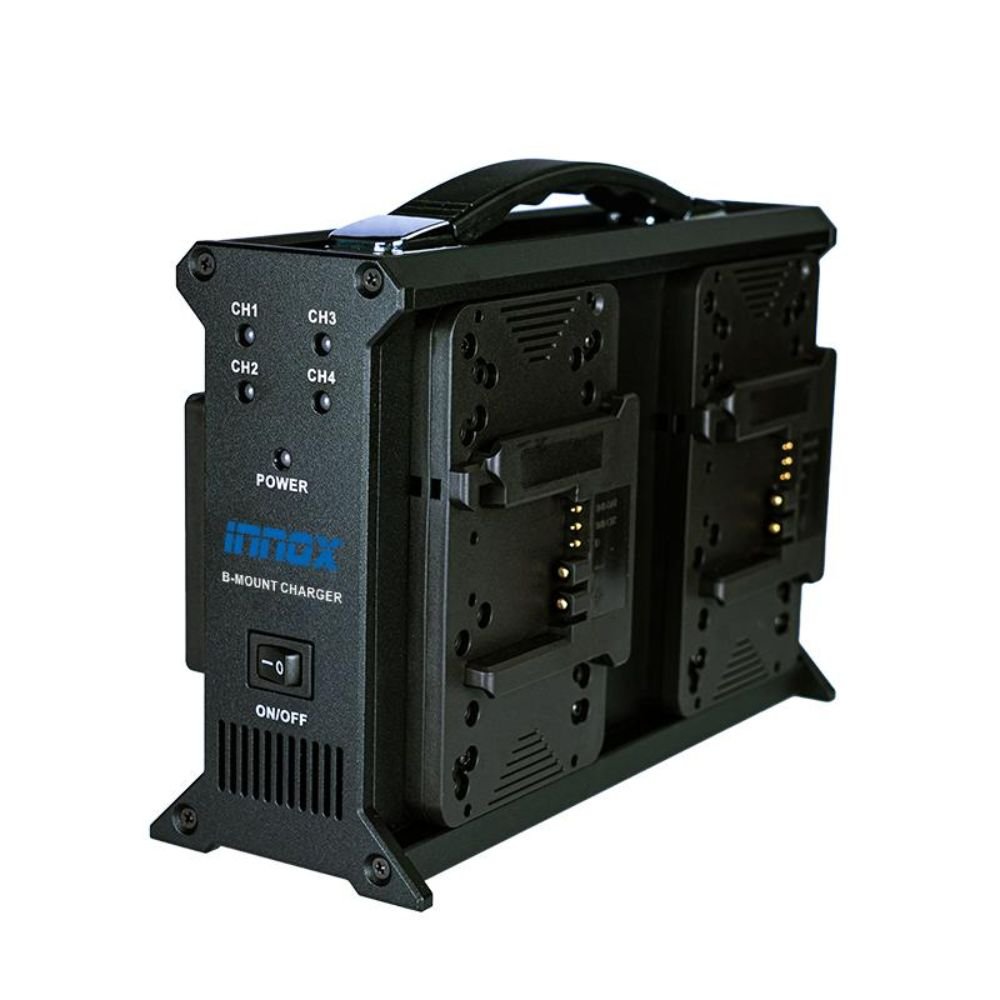

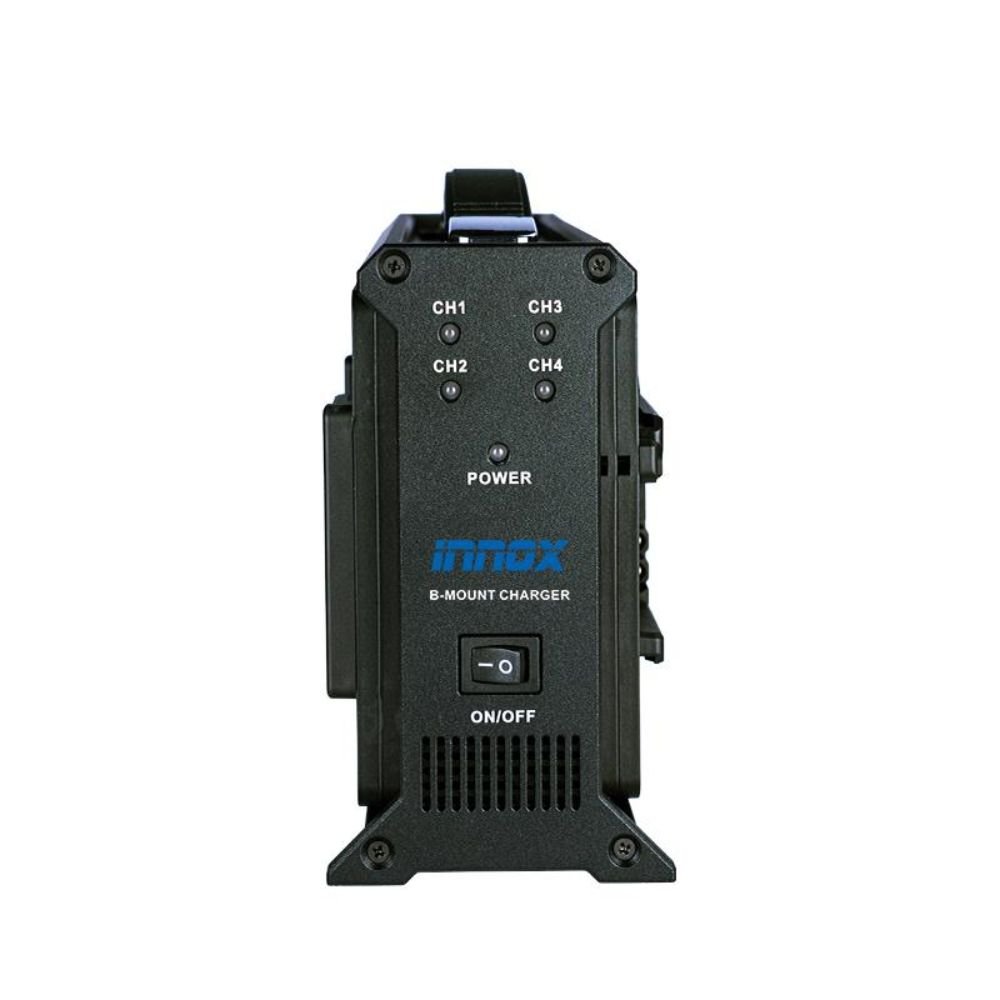

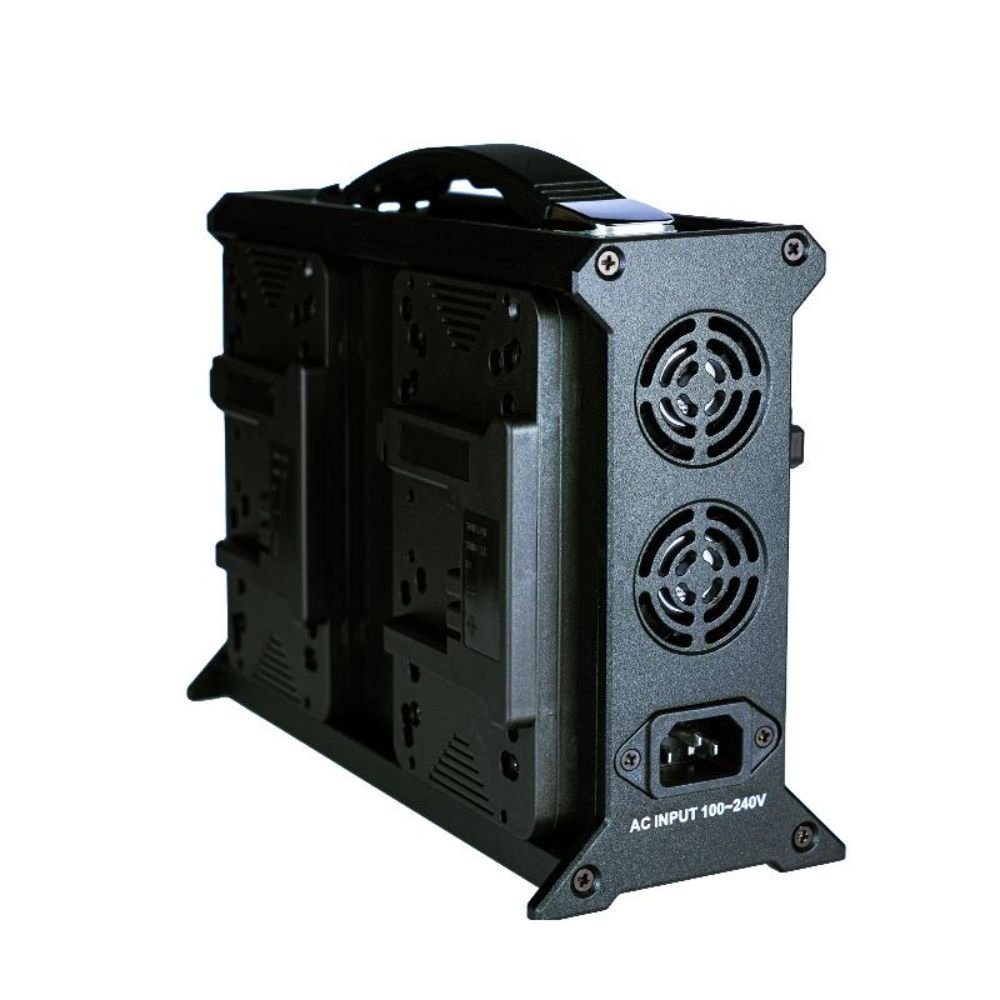

B-Mount Battery Charger

The INNOX IN-BM4CH B-Mount Battery Charger can charge up to four B-mount lithium-ion batteries at the same time. Each channel provides a 3A charging current, while LED indicators show the charging status for every battery bay.

Worldwide AC Input

The charger accepts AC power from 100 to 240V at 50/60Hz. Its internal power supply supports worldwide AC voltages. The charger provides DC 33.6V with 3A per channel and a maximum output of 400W.

Portable Vertical Design

The compact vertical design makes the charger easy to transport. An integrated top carry handle adds convenience when moving the unit. A Light Indicators for Battery Charge Status Charge/DC Out/Off Mode Switch provides control over the charger’s operating mode.

The IN-BM4CH measures 255 x 94 x 170mm and weighs 2840g. It operates within a working temperature range of -10°C to 40°C. INNOX recommends using only INNOX batteries with the B-mount charger as a complete set and does not recommend mixing different battery brands at the same time.

Key Features

• Charges up to four B-mount lithium-ion batteries simultaneously
• 3A charging current per channel
• AC 100–240V, 50/60Hz input
• DC 33.6V, 3A output per channel
• 400W maximum output
• LED indicators show charging status for each bay
• Integrated carry handle and compact vertical design
• Operating temperature from -10°C to 40°C
