Description

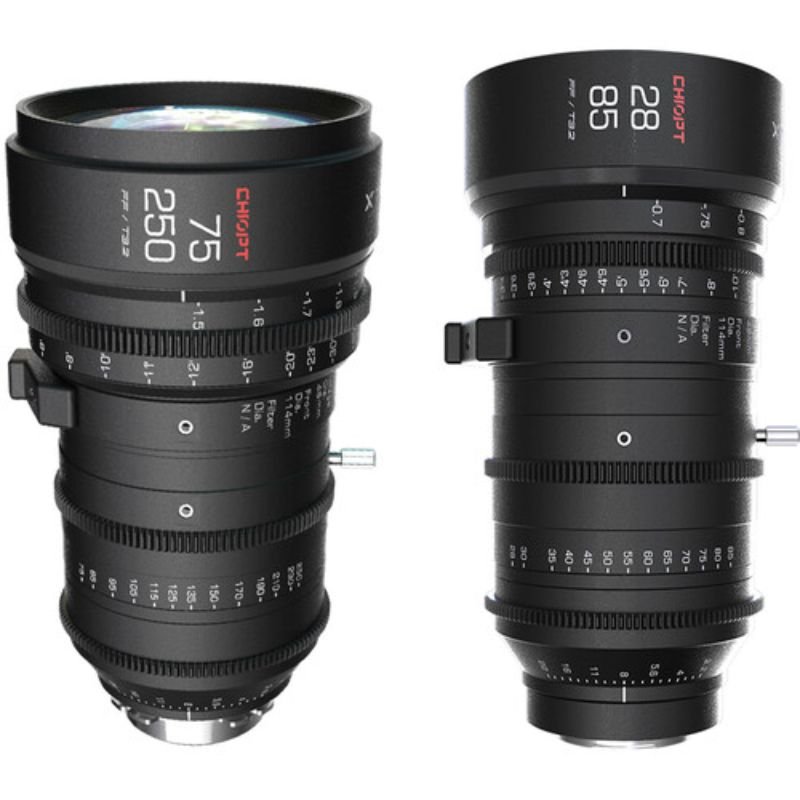

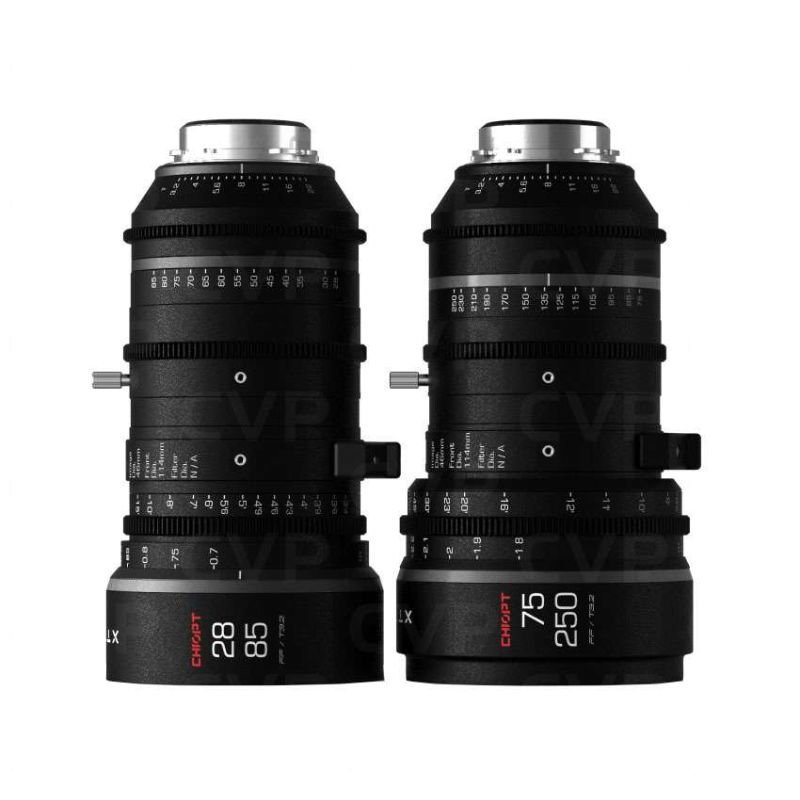

XTREME 28-85mm & 75-250mm ZOOM Lens Kit

XTREMER 75-250mm Cine Lens

The XTREME 75250 is the second lens for the XTREME series. The telephoto zoom lens is a very important lens type in shooting. It has an irreplaceable role in many specific occasions. Using telephoto shooting can compress the depth space and create a dramatic picture composition.  On the other hand, it is also suitable for people close shot, and showing the details.

In many cases, due to space, security and other reasons, it is impossible to shoot at close range,  so whether it is film and television advertisements, feature films or documentaries, even conferences, live video broadcasts and other fields have a lot of place to play.

The 46mm full frame image compatible with S35 format, covering all full frame camera systems, with original PL, EF, E mount, simple DIY replacement, long flange design, through the adapter ring, RF,E,LPL,L,Z and almost all mount conversion, its excellent imaging quality, stable and reliable structure process, with the same XTREME series of 28-85,  covering 28/35/50/65/75/85/105/135/150/170/210/250 of many common focal length,  two zoom lens, whether it is for a close-up, or telephoto shot, can become your indispensable productivity tools, the key is the lasting vitality.

The XTREME series maintains the same imaging style and structural process, sharp center-to-edge imaging at all focal lengths, constant T3.2 aperture, easy to use at full opening, excellent purple fringing control, precise par focal, soft bokeh, excellent distortion control, slight breathing effect, the overall structure is solid, the structure is designed to prevent dust and raindrops, the rear flange distance can be DIY adjusted, and it can be easily interchanged with 2885, and the weight is only 2.9 kg and the length is 228mm.

• Frame: 46mm imaging circle, all focal lengths cover all format camera systems, compatible with S35 format, Large format, better image quality and lasting vitality.
• FOCAL LENGTH : Super 3x zoom, zoom range 75-250mm. Rare full-frame large telephoto, small size, light weight, essential for film and television business area. With 2885, covering many common focal lengths of: 28/35/50/65/75/85/105/135/150/170/210/250.
• HD RESOLUTION: With 8K ultra-high resolution, the picture is comfortable, natural and sharp, true film-quality imaging,
  high resolution at the center and edge of all focal lengths image quality performance, high resolution.
• ADAPTATION: Adapt to various models and accessories, and perfectly adapt to XTREME 2885, allowing you to calmly face various shooting scene switching, creation more exciting.
• PAR FOCAL: XTREME series lenses can ensure precision when the rear focus is accurate. For the rear focus adjustment function, please refer to the manual or search on the website.
• BREATHING EFFECT: In the large telephoto zoom lens, the breathing control performance is excellent, which is enough to meet the needs of film shooting.
• MULTIPLE MOUNT:  Standard PL original mount, and providing a full range stainless steel of: EF mount and E mount, adaptable for the ARRI, CANON, SONY camera system.
• CONSTANT APERTURE: Constant equidistant T3.2 (F2.8) large aperture. Precise control, easy to use with full aperture, no dark corner, high sharpness, easier to focus when shooting from a distance.
• BOKEH: 11 pcs round aperture blades, bokeh transition naturally with round flare. Large aperture, light and shadow create a dream world.
• SAME SIZE: The XTREME 75-250 and 28-85 lenses maintain the same appearance and size, and the weight is similar, The aperture ring, zoom ring and focus ring are the same position and stroke. The support base is the same, and the front diameter is the same as 114mm.

Key Features:

1. Excellent anti-distortion performance, easy to avoid screen deformation.
2. Matching color performance with 2885 lens , good color style consistency.
3. Unique spraying process, higher hardness, better strength, more resistant to fingerprints and oil stains.
4. Especially for the use environment of sand, dust and raindrops, special materials are implanted in the gap between the metal shell of the lens, which can resist general sand, dust and raindrops.
5. Each lens must be strictly inspected to ensure the accuracy of the rear flange distance. Also, it is equipped with various specifications of gaskets, which can be DIY adjusted. Precise flange distance to realize the parfocal.
6. All-metal structure, PL/EF/E mounts are made of high-strength stainless steel, which is stable and durable, providing reliable protection for your shootting.
7. The focal length reaches 250mm, with a 1.7x teleconverter, it reaches 425mm ultra-telephoto length to meet your ultra-long-distance shooting needs, From now on, the camera position is free enough, and the framing is more convenient.
8. 288 degree focusing stroke for precise manual focus.
9. Metric scale on the focusing ring left side, and English scale on the right side. Full english scale optional to meet your different demandز

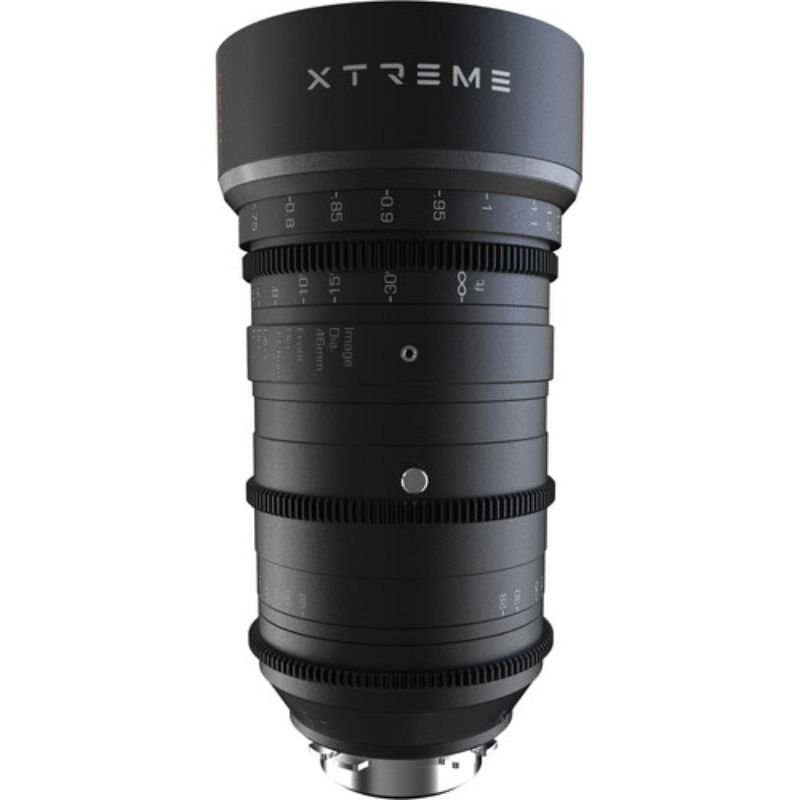

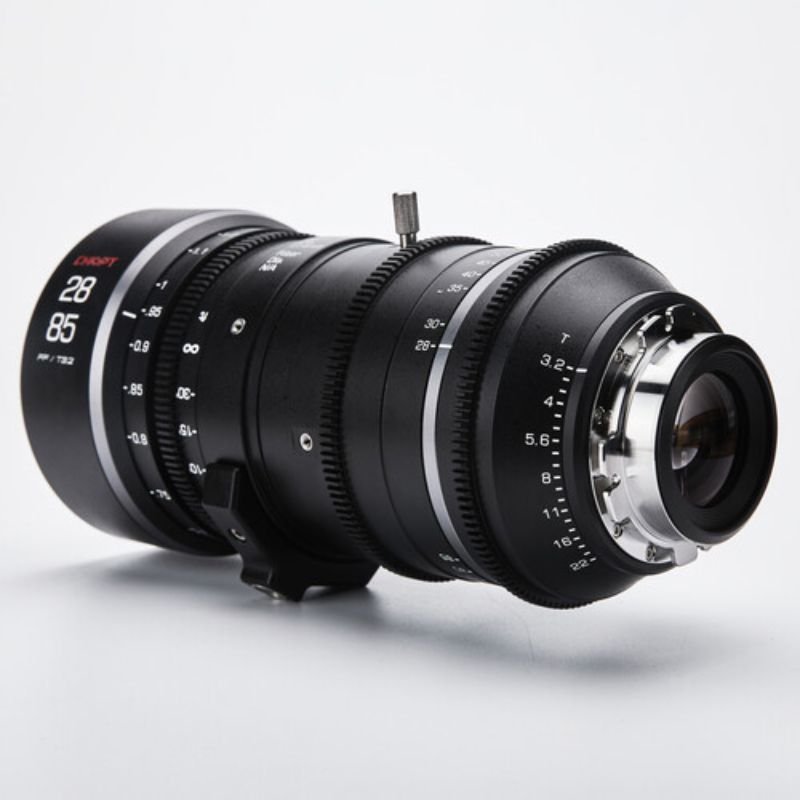

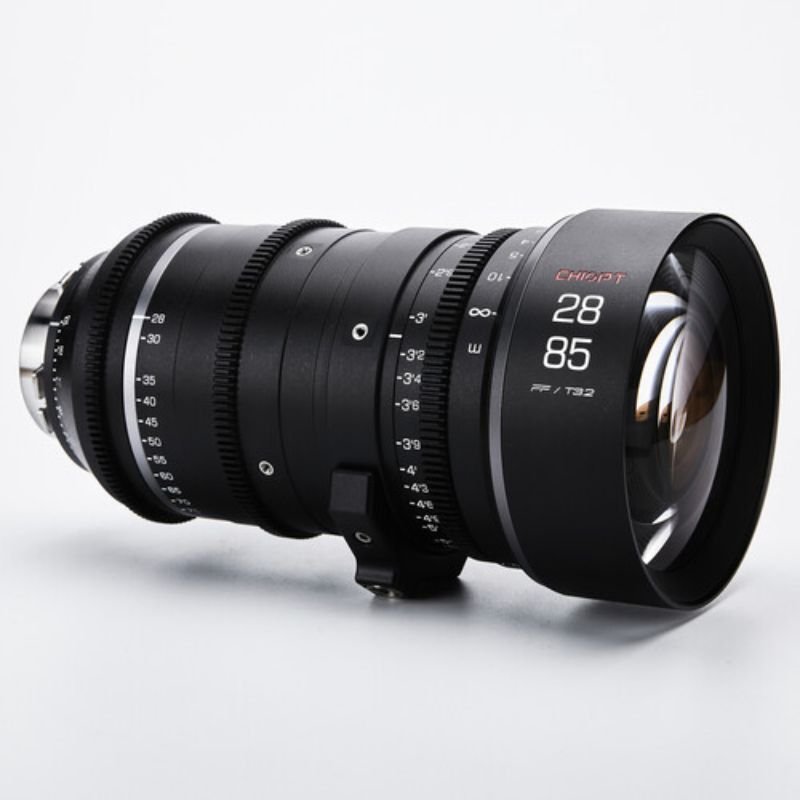

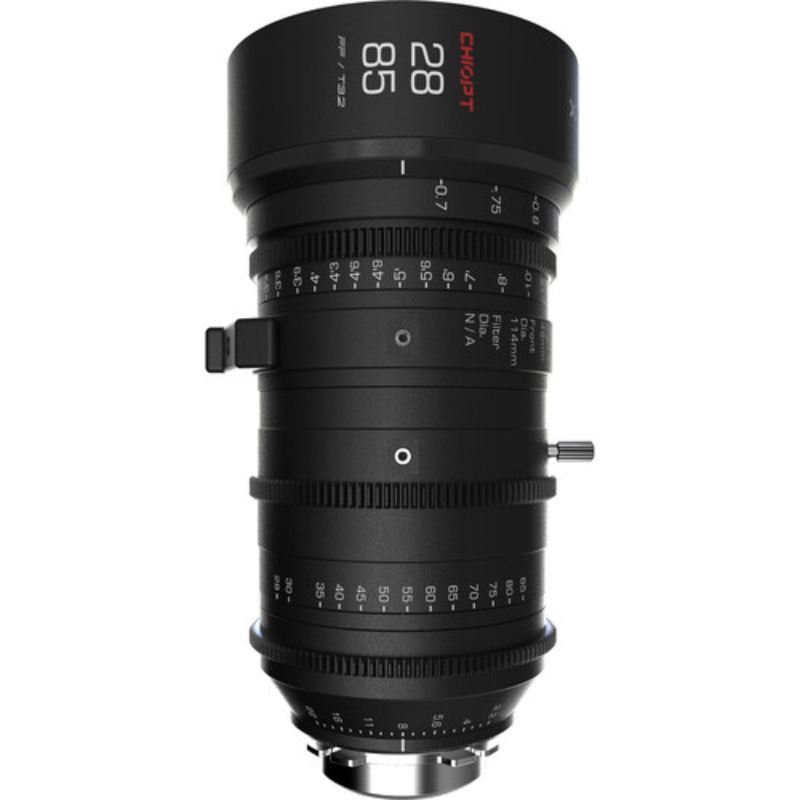

XTREMER 28-85mm Cine Lens

Accord with the friendly, economic, reliable, durable and sustainable development, is the best combination to meet the most common needs of all artists, a good balance of qualities to make a more viable product is the true sense of the EXTREME.

The full-frame zoom cinema lens can be a flexible and variable-frame system. The market angle is finer, the image is better, and it has a broader life cycle and investment value. With good overall quality, especially the super high cost performance, it becomes an excellent production tool Therefore, the EXTREMER series came into being.

The EXTREMER series is a modern multi-zoom cinema lens set developed by us for large-format camera systems. It strictly follows the optical and mechanical structure requirements of the film industry. It is newly developed and manufactured. 28-85mm is in this series. The first product of, covering the more commonly used focal lengths, has a T3.2 constant aperture, 6-8K-level clarity, precise par focal function, well-controlled breathing, sharp and unfavorable focal inside, soft transition outside focal length, and enhanced In addition to glare suppression, it has a DIY bayonet design, and provides multiple bayonet system options such as PL, EF, and E. Among similar products, the volume and weight control are more excellent.

• Frame: With a field diameter of 46 mm, it is suitable for a wide range of large format camera systems and is compatible with Super 35 format for a long life cycle and greater investment value.
• Par focal: This lens can ensure par focal accuracy when the back focus is accurate. For the back focus adjustment function, please refer to the manual or search in the site.
• Focal length: The first lens is 3x zoom, the zoom range is 28-85mm, covering common focal lengths, one is more than one, more practical, leave a message in the station, wide-angle zoom, telephoto zoom, which focal length is more in line with your needs.
• Breathing effect: Excellent breathing effect control ability, easier to shift the focus of the composition.
• Multi-mount DIY: The PL native mount is standard, and a full range of EF and E mounts are also available for use with the SLASHER series, for a variety of camera systems. More bayonets will be launched later, so stay tuned.

Key Features

1. Surface Technology: Unique coating process for greater hardness and strength, more resistant to hand prints and oil stains.
2. Linear aperture ring: Consistent rotation angle per stop for more intuitive aperture control.
3. Metric & imperial double-sided scales: The metric scale on the left side of the focus ring, and the inch scale on the right side, to meet different needs.
4. Anti-dust and raindrops: During the design process of the lens structure of this series, the protection against general sand, dust and raindrops has been specially strengthened to ensure normal shooting under severe conditions.
5. Volume and weight: The volume and weight are well controlled in the full-frame zoom cine lens with all-metal structure.
6. Supplementary focal length is available: Telephoto zoom and wide-angle zoom are already planned, so stay tuned.
7. Out of focus: The out-of-focus spot is rounded and the bokeh is natural.
8. Follow focus stroke: 288-degree focus stroke, realizing manual precise follow focus.
9. Adjustable back focus: The factory must be strictly inspected to ensure the accuracy of the rear flange distance. At the same time, various specifications of gaskets are provided as standard, which can be adjusted by DIY. The flange distance is accurate to achieve par-focus.

NOTE: Sand, dust and raindrops are not the promised function of this product, but to minimize the possibility of its occurrence during product design, please use it in a safe environment.
