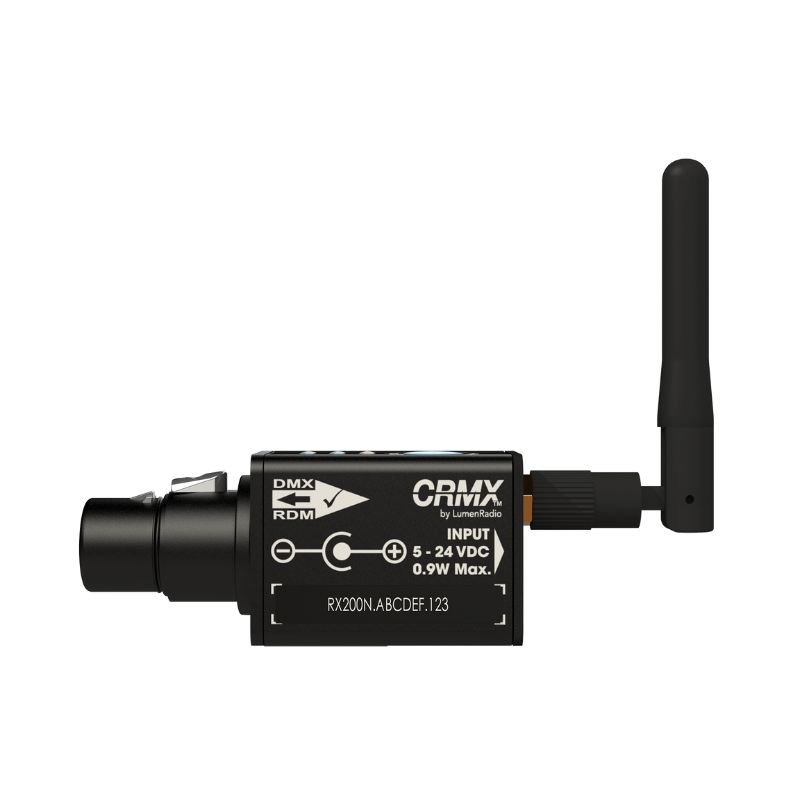

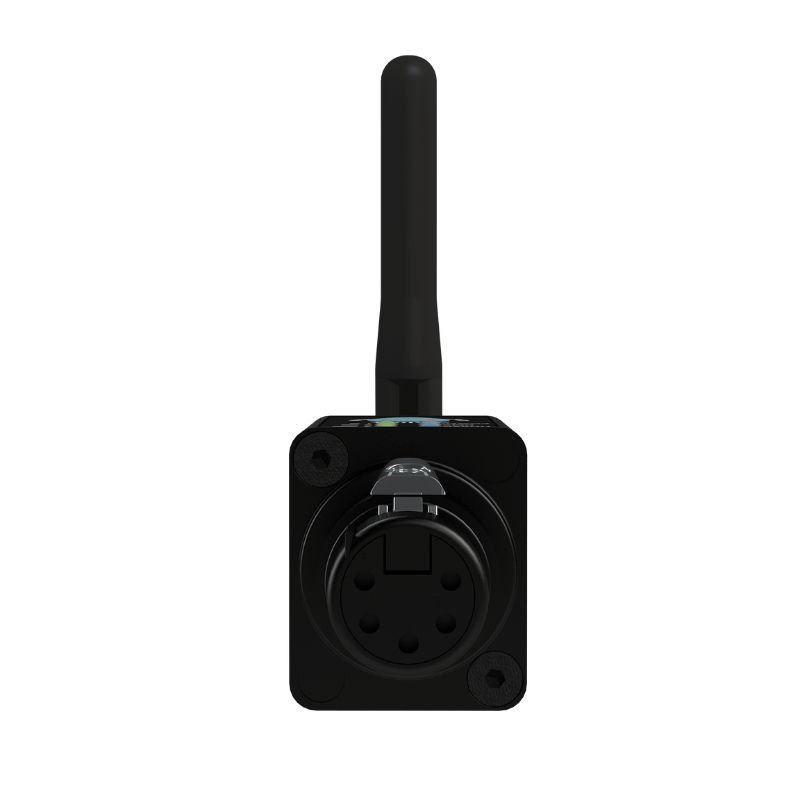

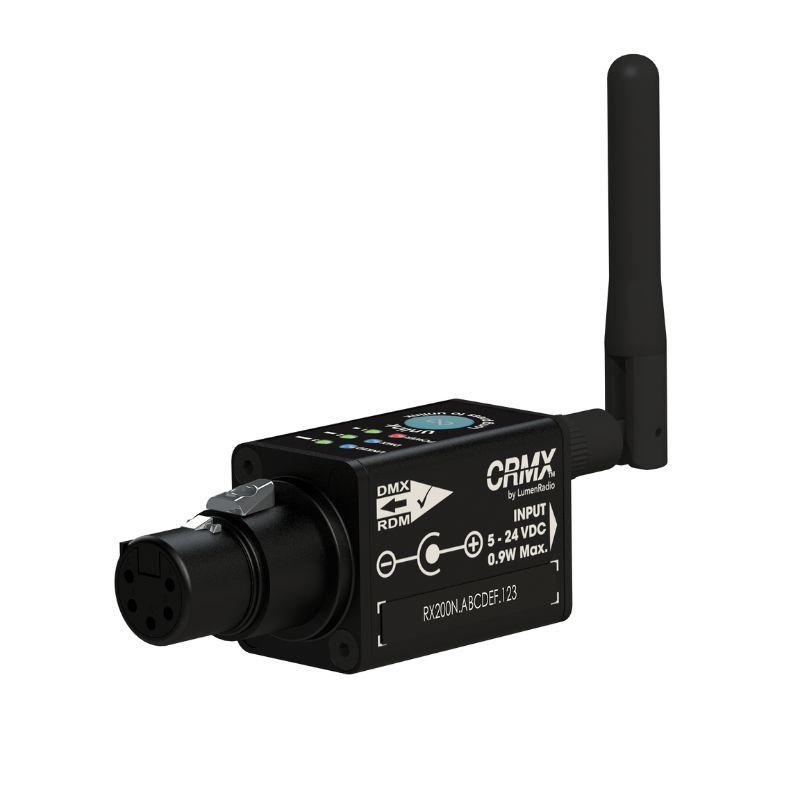

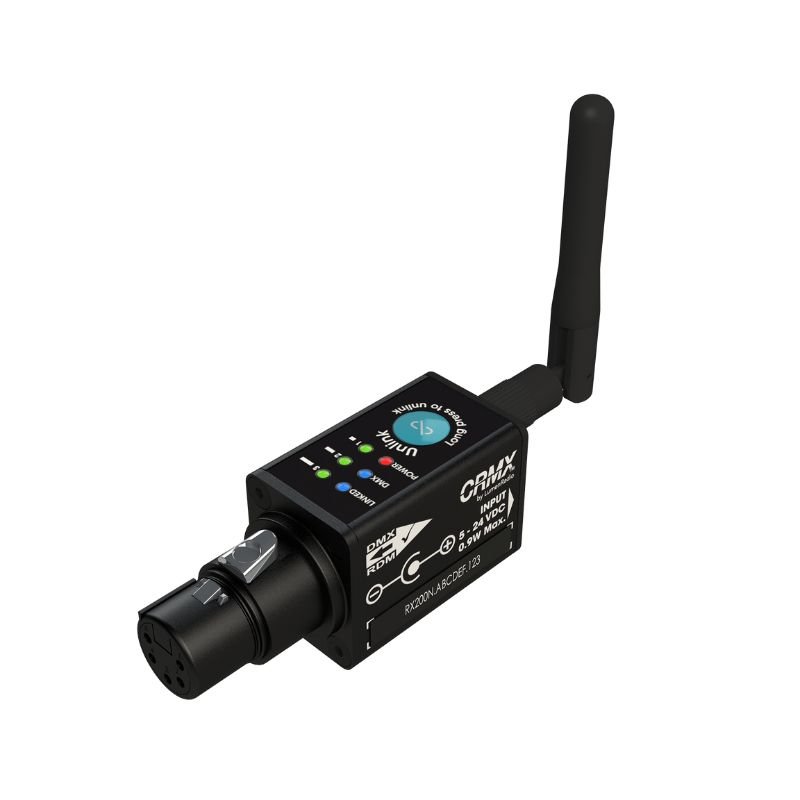

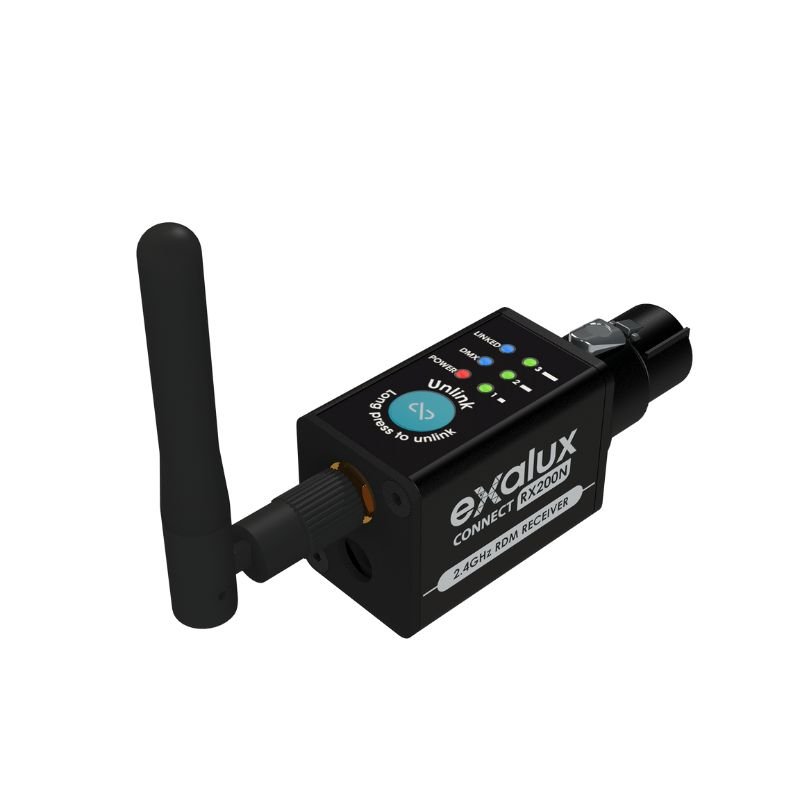

EXALUX CONNECT RX200N RDM/DMX Receiver Kit

0 out of 5
( There are no reviews yet. )

1.820,00 AED ex. VAT
1.911,00 AED inc. VAT

  • Ultra-compact wireless receiver with DMX512 and RDM compatibility.
  • Machined aluminum housing for a durable and compact design.
  • Wireless range up to 500m with a removable external antenna.
  • Supports +5V to 26V DC input through USB, D-TAP, or external power supply.
  • LumenRadio CRMX™ technology delivers reliable, latency-free wireless DMX transmission.
Availability: 1 in stock SKU: CNT.002.001 Categories: , , Brand: EXALUX
International Orders: Shipping cost depends on your country and order weight. Please contact us to complete your order.

Related Products

Description

Wireless DMX Receiver

EXALUX CONNECT RX200N is an ultra compact wireless RDM/DMX receiver. The unit is RDM and DMX compliant, making it ready for the DMX of the future.

  • RX200N features a one-piece housing made from a block of aluminium, allowing it to get a compact and stronger design. The external antenna allows a long range (up to 500m depending on the transmitter and the environment).
  • CONNECT RX200N is DMX512 and RDM compliant. It means that it will allow configuration, status monitoring, and management of RDM devices.
  • Thanks to its wide supply range (+5 to 26VDC), CONNECT RX200N can be powered through the USB connector of a DMX fixture, a Vlock battery through the D-TAP connector or any external PSU.
  • The connect RX200N‘s antenna is removable, meaning you can replace it by a different model to better suit your needs.
  • Based on LumenRadio CRMX technology, EXALUX™ CONNECT RX200N brings DMX fidelity without any latency.
CRMX DMX/RDM Receiver Specifications
Radio Interface & Wireless
Standard / TechnologyLumenRadio CRMX™
Frequency Range2.402 ~ 2.480 GHz
AntennaOmnidirectional, 2.4GHz 2.0dBi, SMA Connector
RF Output Power20 dBm (100mW)
Receiver Sensitivity-93 dBm
Operational RangeUp to 300m (environment and transmitter dependent)
RF ModulationGFSK
DMX Interface
Supported ProtocolsDMX512-A / RDM ANSI E1.20
DMX Output PortNeutrik XLR 5-pin Male
Universe Support1 Universe
DMX Frame Rate0.8 – 830 Hz
End-to-End Latency< 5 ms
Technical & Power Specifications
Power Connection2.0×5.5mm DC Jack
Hardware InterfaceUnlink (switch), Power, Paired, DMX, Signal level (LED status indicators)
Power Consumption< 0.9 W
Housing & BuildAluminium Shell • IP30 Rating
CertificationsCE, RoHS
Net Weight80 g
Operating Conditions
Input VoltageMin: 4.5 VDC • Typ: 5 VDC • Max: 26 VDC
Operating TemperatureMin: -10°C • Typ: 25°C • Max: +55°C
Storage TemperatureMin: -20°C • Typ: 25°C • Max: +75°C
  • CONNECT RX200N UNIT
  • USB-A/DC-JACK CABLE
  • D-TAP/DC-JACK CABLE
