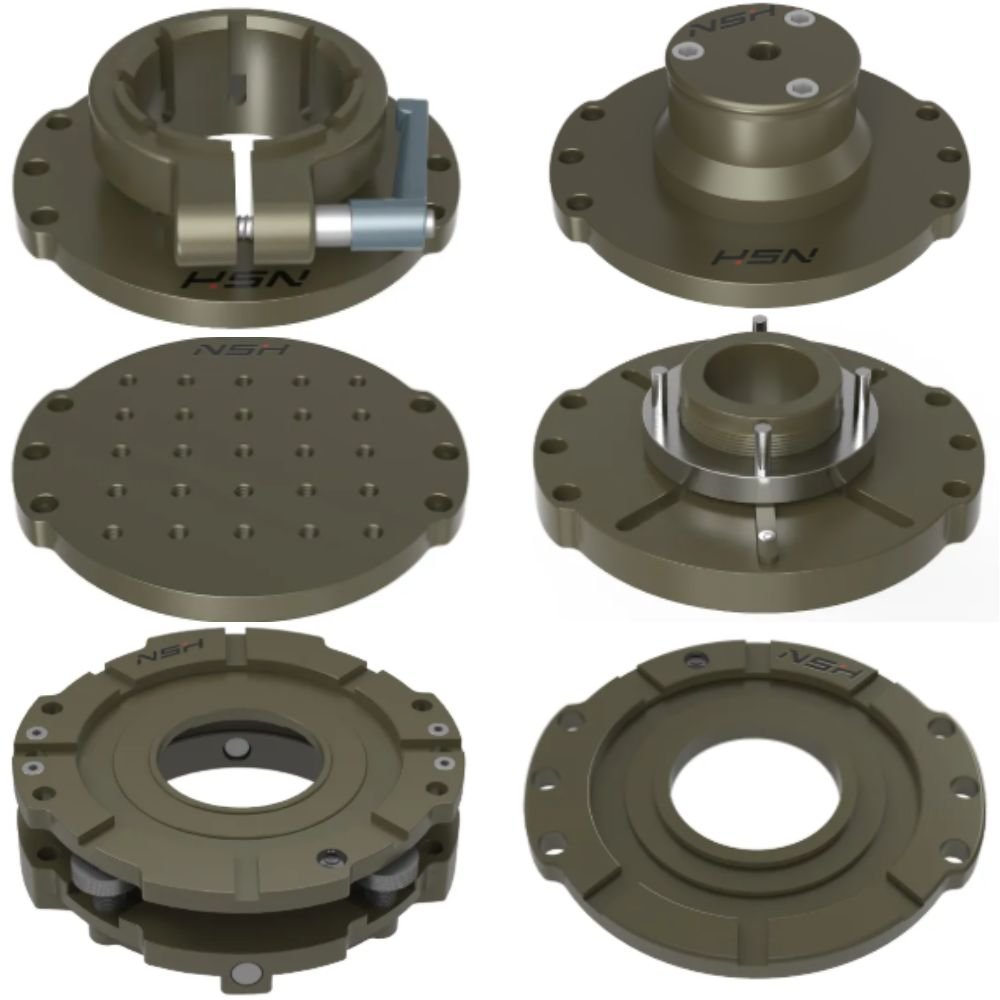

Mounting Plates

Connect your rig with NSH mounting plates for Euro, Mitchell, and other mounting interfaces.

Euro Mounting Plates

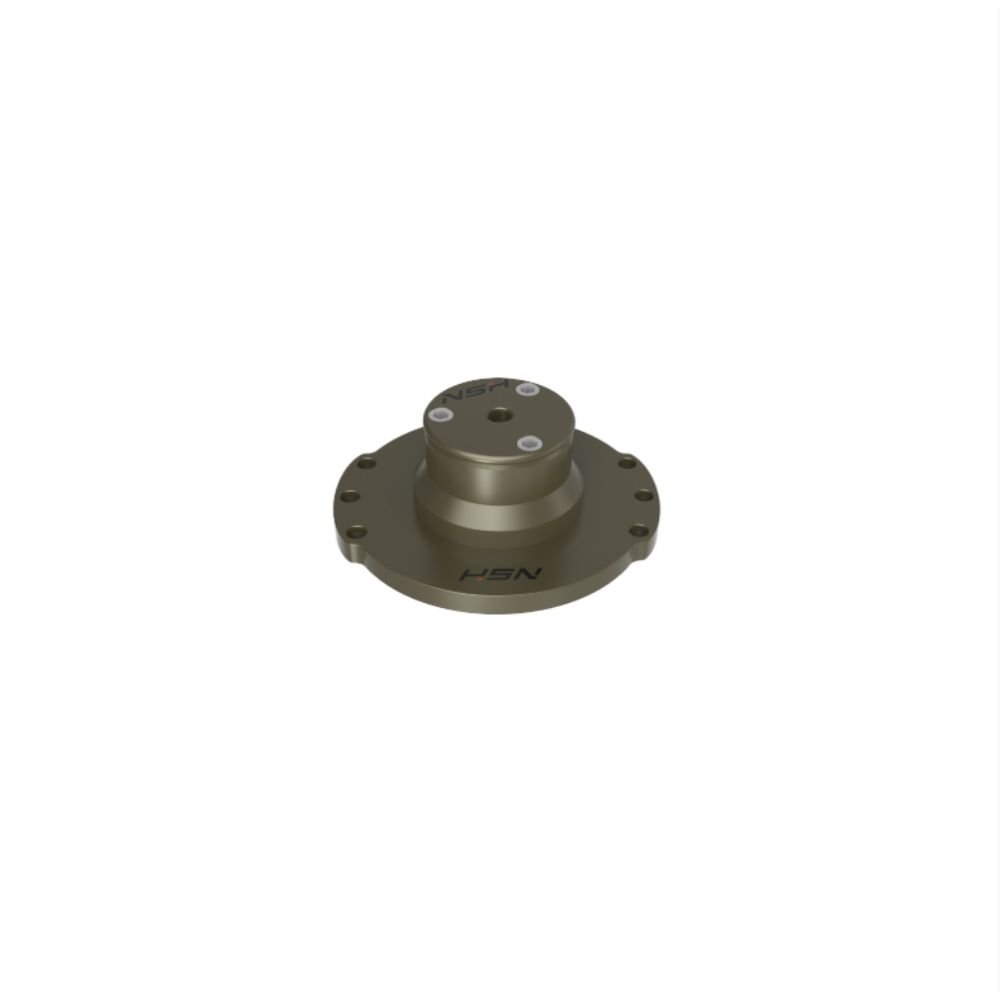

NSH NH-2109 Euro Adapter plate: This standard insert connects the NSH system with a Euro mount. It fits the Turtle Base, Slider, offsets, and other compatible NSH components. Three M6 bolts on each side secure the plate for high-load support. A central thread provides a separate second security point.

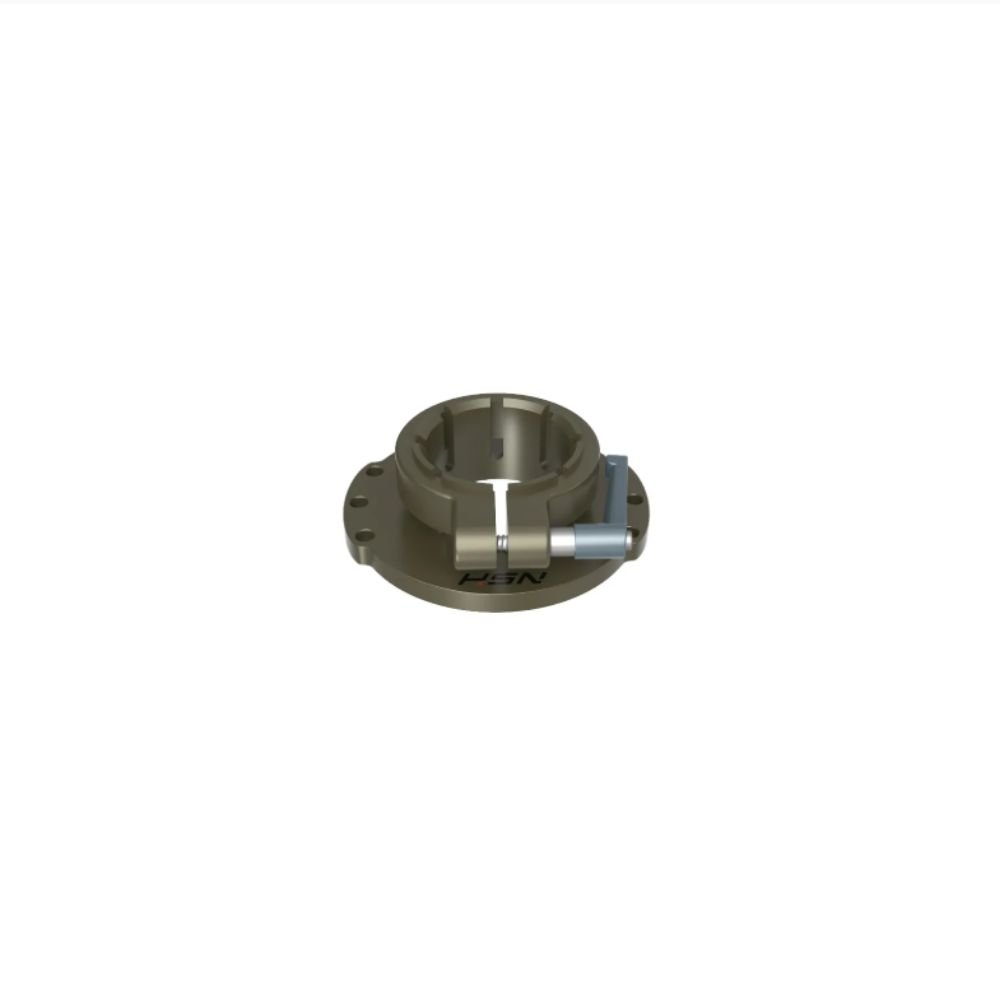

NSH NH-2109/1 Female Euro Clamp Plate: This female Euro receiver connects with the NSH ecosystem. Three M6 bolts on each side secure it for high-load support. Its stable clamp grips the Euro mount, while a repositionable and rotatable lever lets you set the handle where it best suits the shot.

Mitchell Mounting Plates

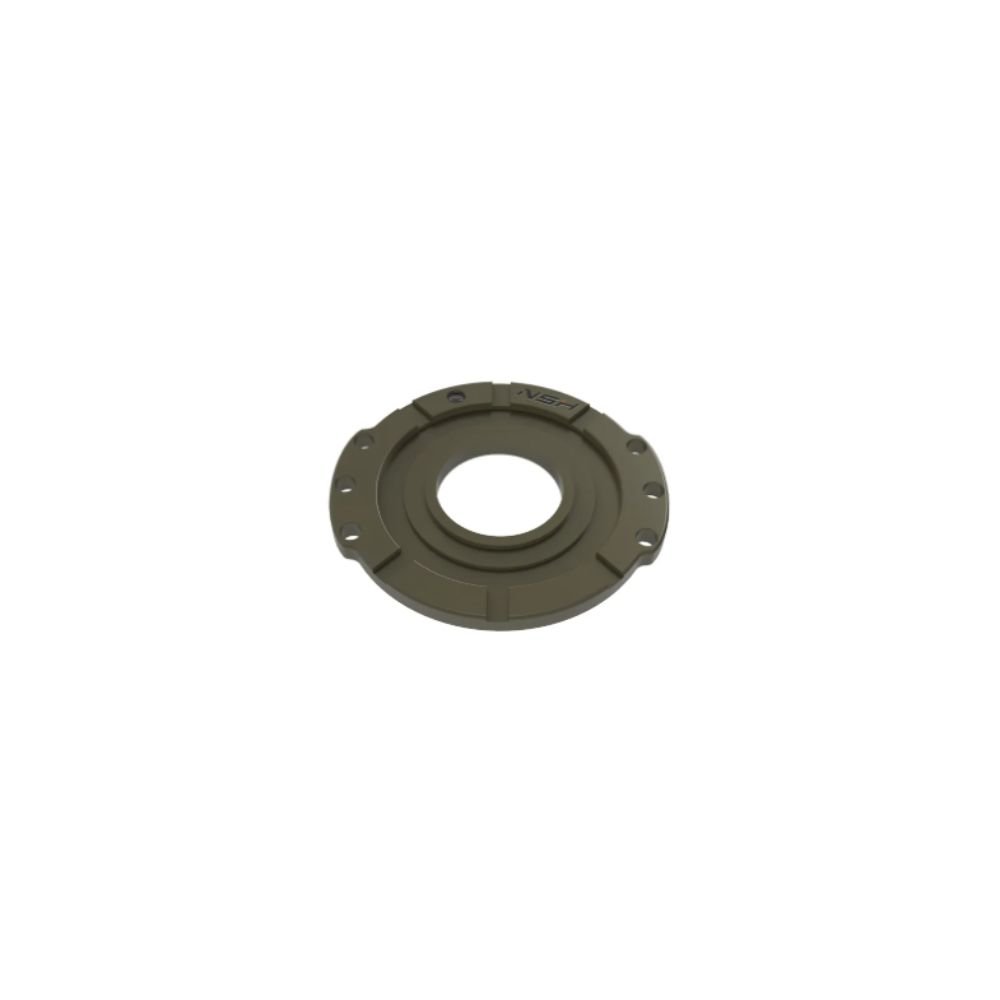

NSH NH-2169 Mitchell plate: This standard Mitchell insert connects the NS-Slider, Shock-Absorber, Turtle Base, and other NSH components to Mitchell interfaces. Six keyway slots provide secure locking in multiple orientations. The integrated bubble level helps you level each setup.

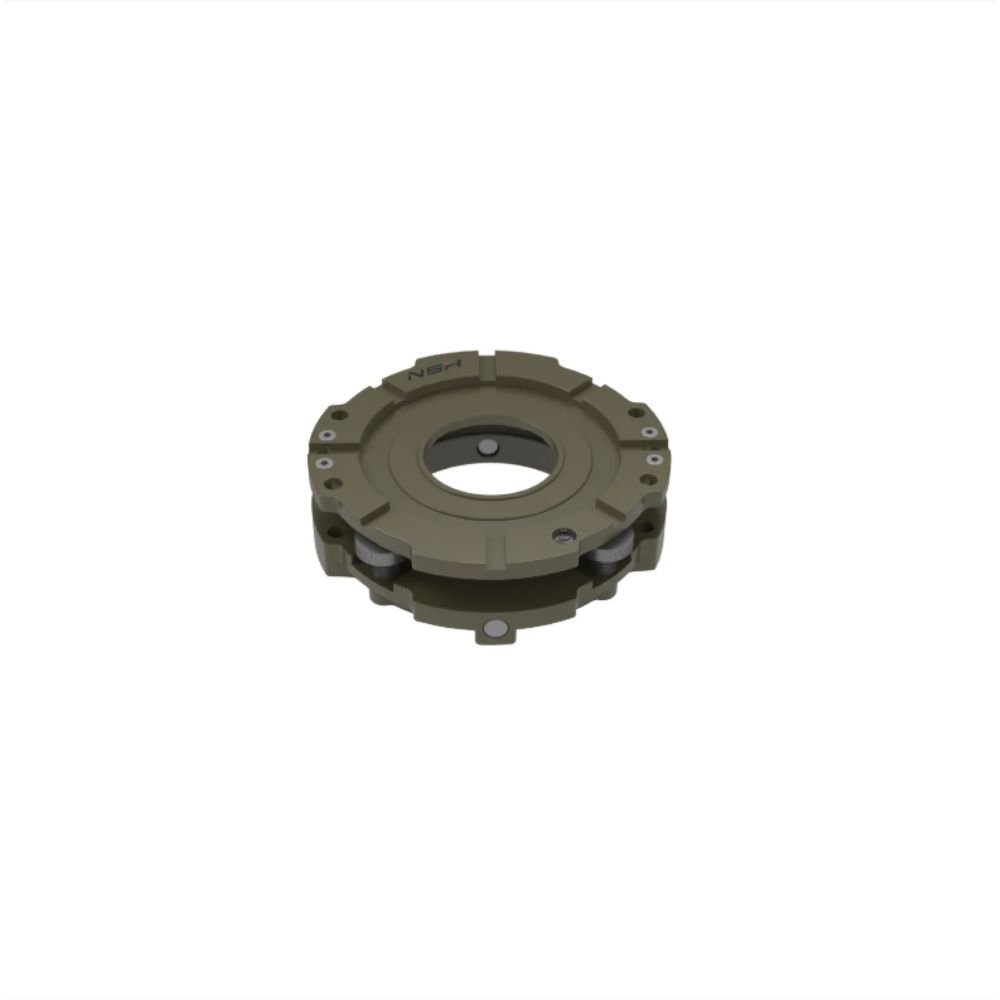

NSH NH-2160 Mitchell 4-Way Plate: This plate fits into the NSH insert ring and accepts a Mitchell head in four orientations, each 90° apart. It lets you align a geared head’s pan direction with the move rather than the slider. It fits the NS-Slider carriage and every other NSH insert seat.

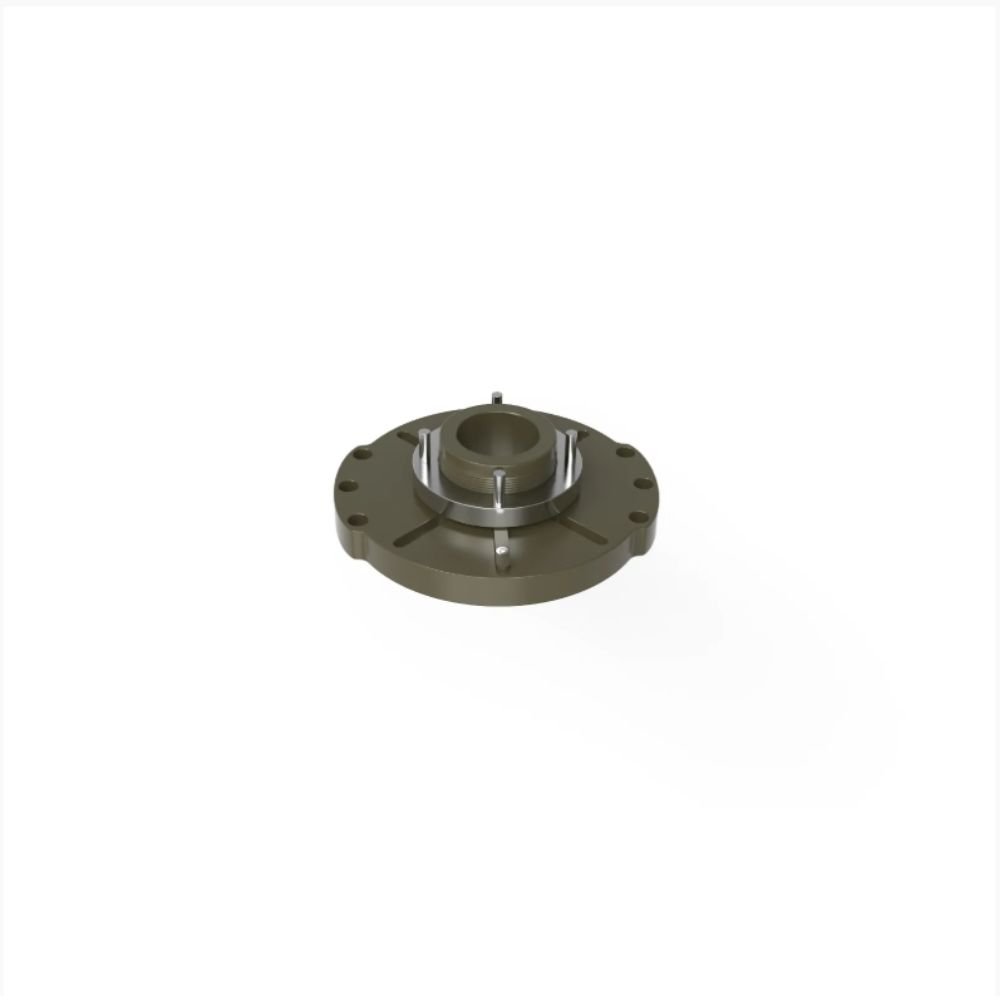

NSH NH-2167 Mitchell Plate (male): This male plate complements the standard Mitchell Plate. Instead of accepting a Mitchell head, it fits directly into a Mitchell receiver. It connects NSH equipment, including the NS-Slider, Shock-Absorber, and Turtle Base, to any Mitchell mount on set. A standard Mitchell nut locks the connection.

Cheese Plate

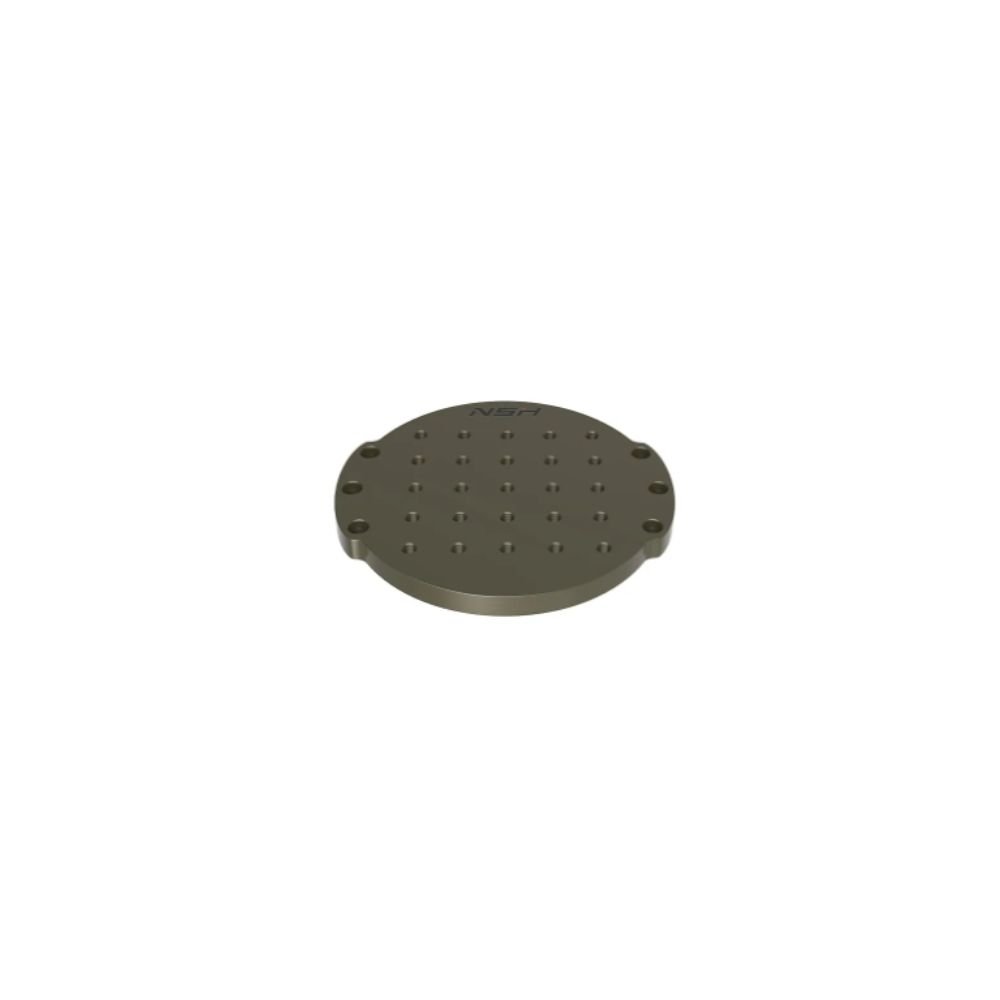

NSH NH-2122 Cheese Plate: This plate combines mounting and insert functions. Its full hole pattern provides mounting points, while its NSH insert design lets it fit into the insert socket of an NSH product. The build can then continue on the plate, connecting the two systems.

Key Features

• Euro adapter and female Euro clamp options
• Standard Mitchell insert and male Mitchell plate options
• Mitchell 4-way plate with four 90° orientations
• Cheese plate with a full hole pattern
• Three M6 bolts on each side of the Euro plates
• Central security thread on the Euro Adapter plate
• Six keyway slots and an integrated bubble level on the standard Mitchell plate
• Compatibility with specified NSH components and mounting interfaces
