Name: Sennheiser EW IEM G4 Twin Wireless In-Ear Monitoring System
Brand: SPOTX
SKU: EW-IEM-G4-TWIN-B
Price: 5449.5 AED
Availability: InStock
Rating: 5 (1 reviews)

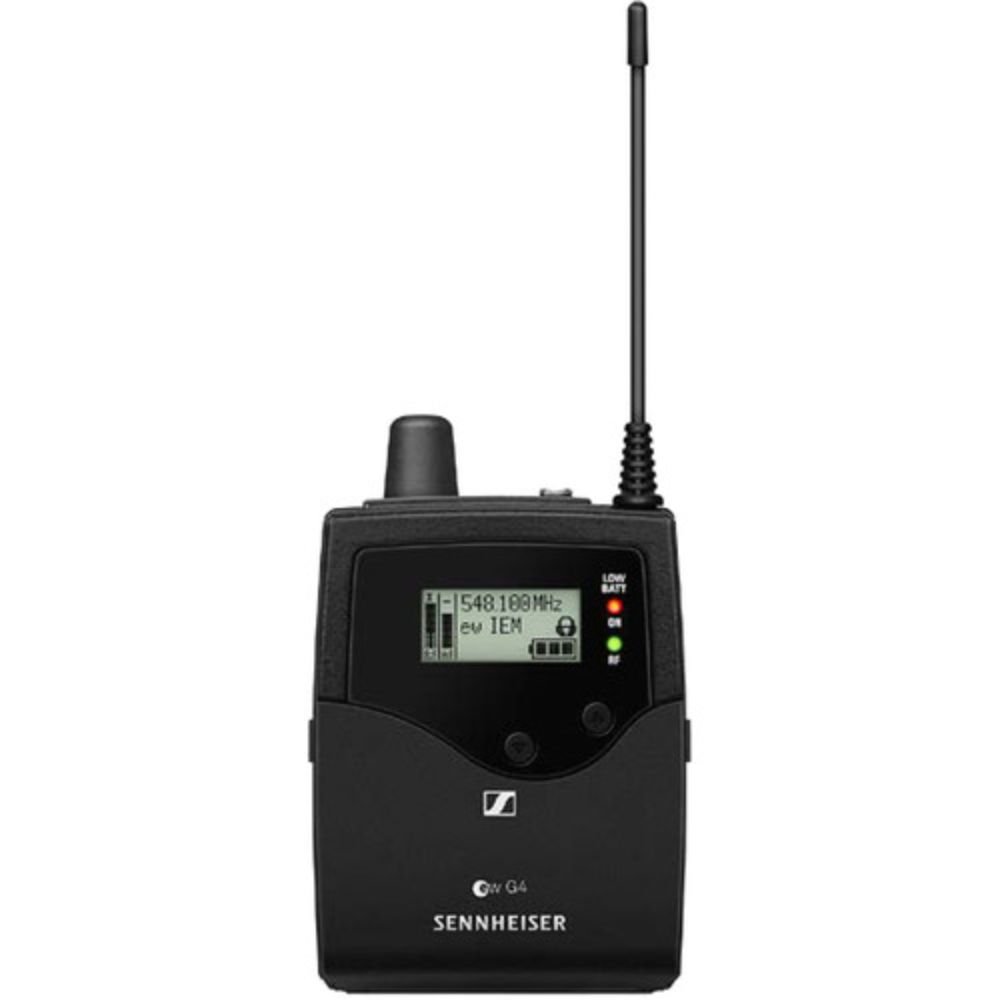

Sennheiser EK IEM G4 Stereo Bodypack Receiver

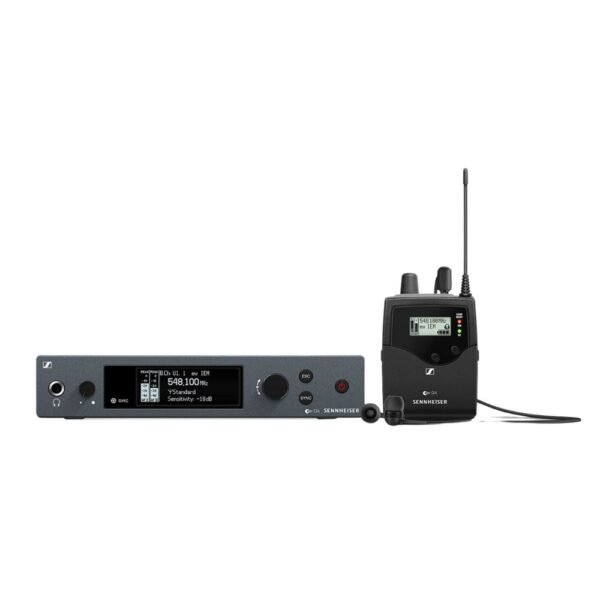

Sennheiser EW IEM G4 Twin Wireless In-Ear Monitoring System

0 out of 5

( There are no reviews yet. )

5.190,00 AED ex. VAT
5.449,50 AED inc. VAT

Professional live sound in-ear monitoring system with a rugged all-in-one wireless design.

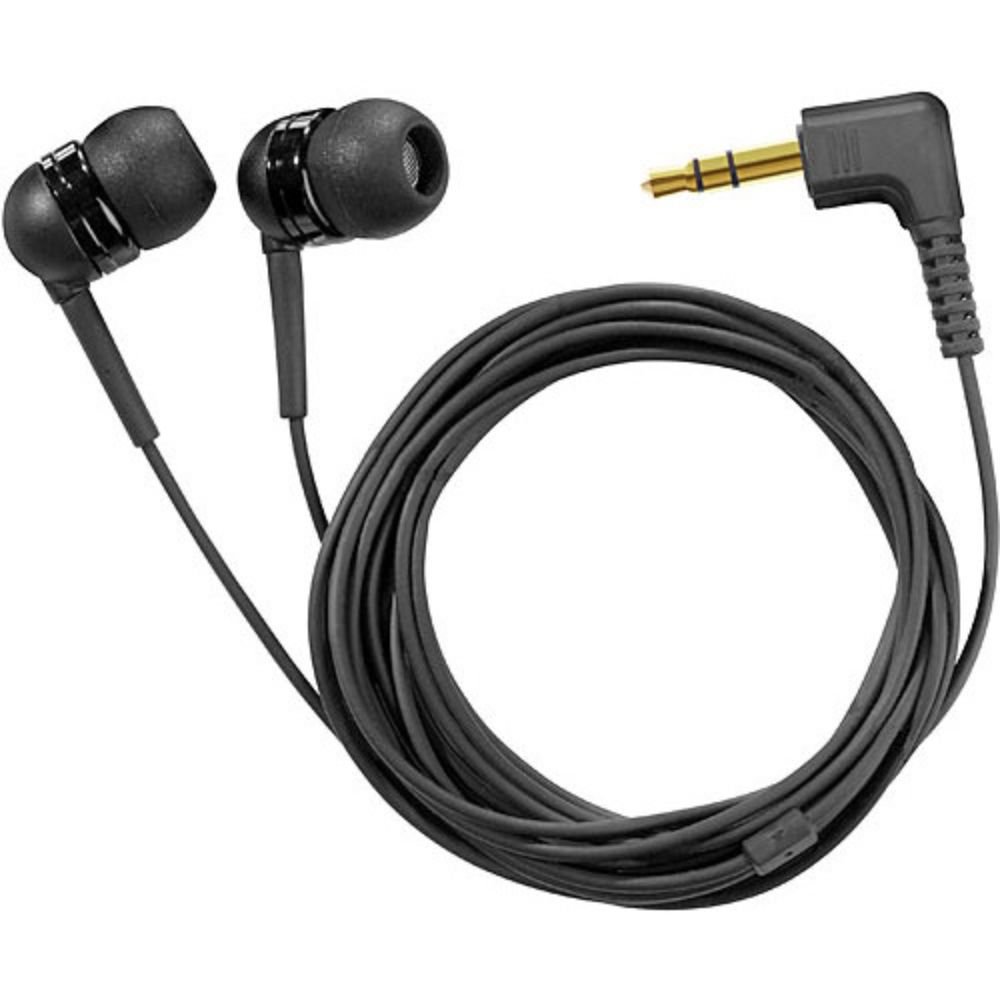

Includes a robust bodypack receiver (EK IEM G4) and reliable IE 4 earphones for full-spectrum clarity.

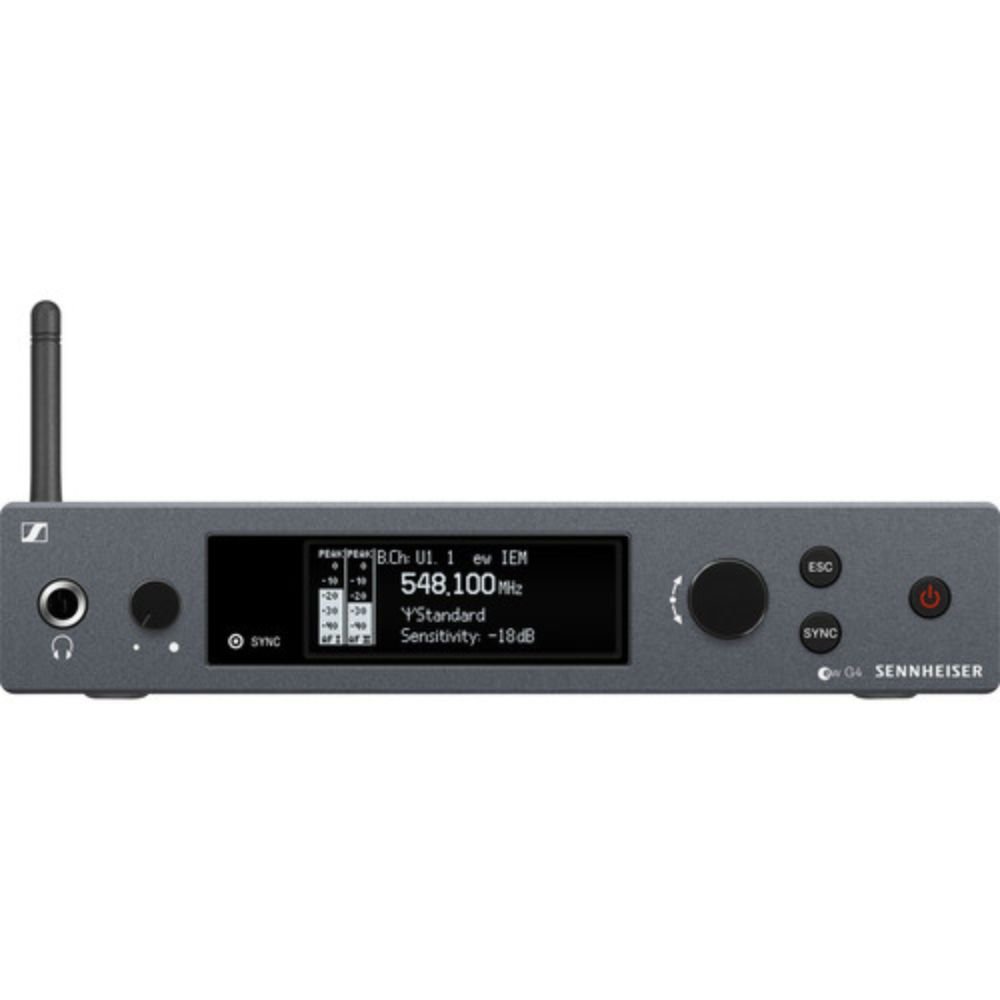

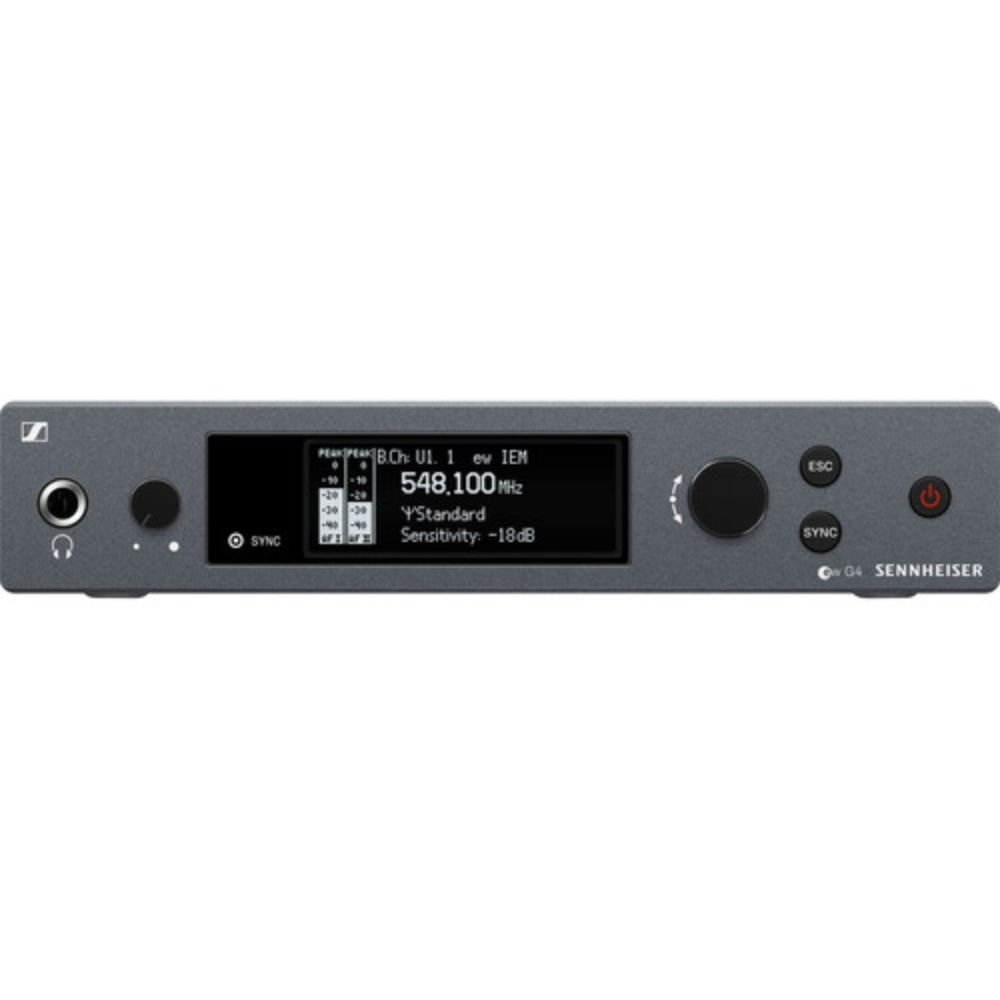

Half-rack stereo transmitter in a full-metal housing with an OLED display for complete control.
Easy wireless synchronization between transmitter and receiver via infrared.
Compatible with Sennheiser WSM control software for flexible frequency allocation.

Availability: 1 in stock SKU: EW-IEM-G4-TWIN-B Categories: Audio, Audio system, Intercom System Brand: Sennheiser

Description

Wireless In-Ear Monitoring System

Engineered specifically for professional live sound applications, the Sennheiser EW IEM G4 Twin delivers a rugged, all-in-one wireless monitoring system. It provides reliable in-ear monitoring with the included IE 4 earphones, ensuring clarity across the entire frequency spectrum for daily stage use. The system supports up to 16 compatible channels, making it suitable for complex multi-performer setups.

Reliable UHF Transmission and Robust Hardware

The half-rack stereo transmitter features a full-metal housing and an OLED display for intuitive control and monitoring. Operating in a stable UHF range (606-648 MHz), the system offers up to 42 MHz bandwidth with 1680 selectable frequencies. Wireless synchronization between the transmitter and bodypack receiver is achieved easily via infrared, while the receiver employs an adaptive diversity principle for reliable signal reception.

Integrated Power and Control Features

The system includes four AA batteries, providing approximately 4 to 6 hours of operation depending on volume level. The transmitter offers high RF output power (up to 50 mW, depending on country regulations) and a transmission range of up to 100 meters (300 feet). For advanced frequency management, the system is compatible with Sennheiser’s Wireless Systems Manager (WSM) control software.

Key Features

Rugged all-in-one wireless monitoring system for professional live sound
Robust EK IEM G4 bodypack receiver with adaptive diversity
IE 4 earphones delivering full-spectrum audio clarity
Half-rack SR IEM G4 stereo transmitter in full-metal housing with OLED display
Easy infrared wireless synchronization between transmitter and receiver
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
42 MHz bandwidth with 1680 selectable frequencies
Fully tunable in a stable UHF range (626 – 668 MHz)
Transmission range up to 100 meters / 300 feet
High RF output power up to 50 mW (depending on country regulations)

General Specifications
Product Name	ew IEM G4-Twin-B
Article No.	509909
Frequency Range	626 – 668 MHz
Bandwidth	Up to 42 MHz
Selectable Frequencies	1680
Compatible Channels	Up to 16
Transmission Range	Up to 100 meters / 300 feet
RF Output Power	Up to 50 mW (country dependent)
Technical Performance
Receiver Principle	Adaptive diversity
Audio Frequency Response	25 Hz to 15 kHz
Signal-to-Noise Ratio	> 90 dB
Total Harmonic Distortion (THD)	< 0.9 %
RF Sensitivity	< 4 μV, typ. 1.6 μV for 52 dBA rms S/N
Squelch	5 to 25 dBµV, adjustable in 2 dB steps
Connectivity
Audio Inputs	2x XLR-3/¼” (6.3 mm) jack combo socket, electronically balanced
Audio Output	¼” (6.3 mm) stereo jack socket, balanced
Antenna Output	BNC socket, 50 Ω
Physical & Power
Dimensions (approx.)	202 x 212 x 43 mm
Product Weight	980 g
Battery Type	4x AA (1.5 V, included)
Battery Capacity	2.3 Ah
Battery Operating Time	Approx. 4 to 6 hours (depending on volume level)
Warranty	2 years
