Sony SRG-X40UH Standard 4K 30p PTZ with 30x zoom UVC|HDMI

8.090,00 AED ex. VAT
8.494,50 AED inc. VAT

  • 4K Resolution & High-Quality Imaging
  • 40x Optical Zoom
  • Wide Horizontal Viewing Angle
  • Smooth & Fast PTZ Movements
  • Flexible Placement Options
  • Simple Connectivity & Integration
  • Ideal for Various Environments
  • 4K 30p & FHD 60p Support
SKU: SRG-X40UH Categories: , Tag:

Related Products

Description

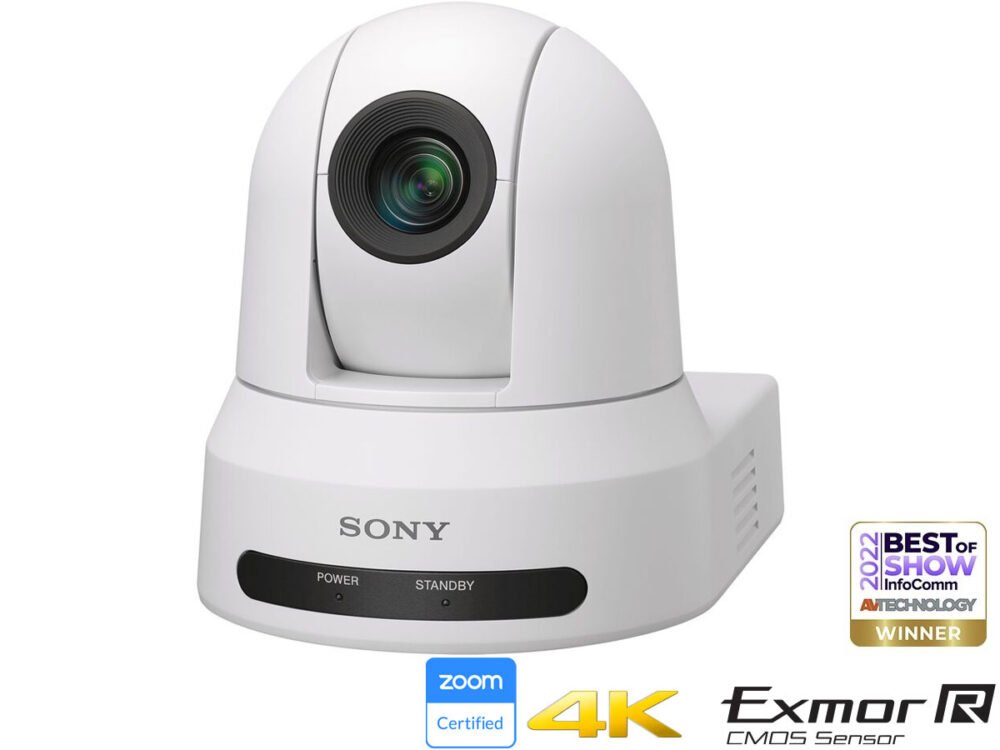

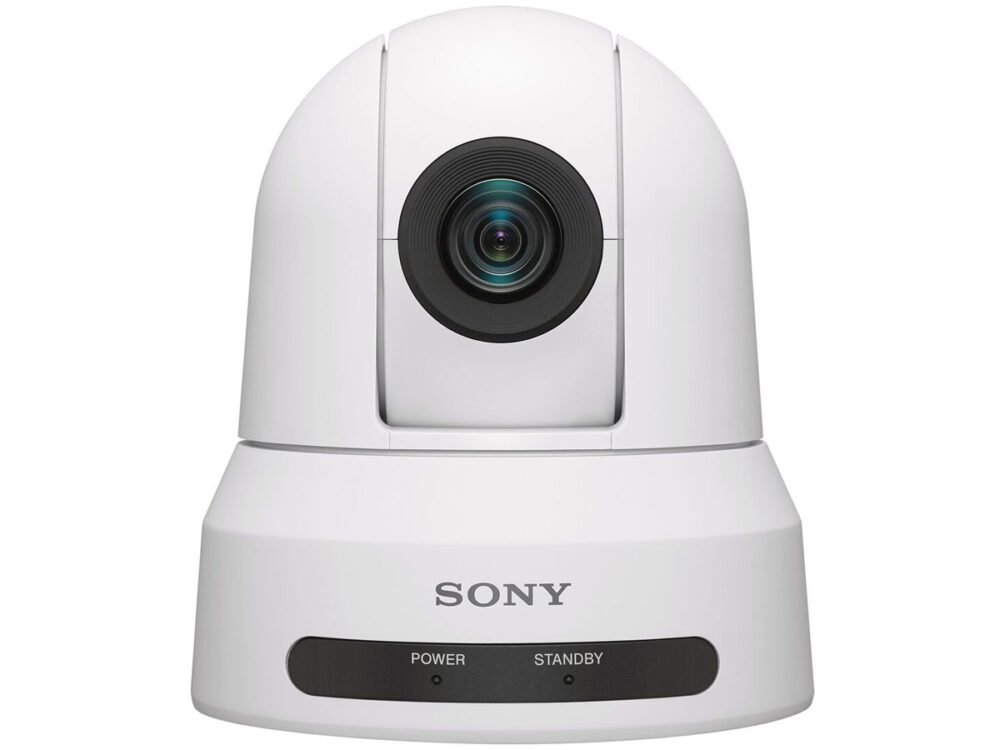

SRG-X40UH Standard 4K 30p PTZ Camera

Professional communication with 4K detail, natural images and 40x zoom

Built for almost any space, the SRG-X40UH matches high quality images with ease of use and simple installation. This remotely controlled PTZ camera can cover everything from crowded operating theatres to huge auditoriums, making it perfect for business, education and medical settings, See all the details, textures and colours you need, with a 1/2.5-type Exmor Râ„¢ CMOS image sensor. Capture up to 4K images with minimal noise, even in low light. Create better FHD images, thanks to oversampling from the 4K sensor.

The 40x zoom in FHD, or 30x in 4K, gives you crisp close-up shots, thanks to Clear Image Zoom technology. Meanwhile, an horizontal viewing angle of approximately 70° lets you zoom out for much wider images. And smooth, fast PTZ movements make any transitions seamless, Place the SRG-X40UH on a desk or mount it to the ceiling for more discreet filming. Simple UVC or HDMI connections make it easy to integrate into your existing set-up. And PoE+ support and VISCA/VISCA over IP control command let you remotely operate and power it through a single LAN cable.

  1. 4K 30p image is supported via HDMI, Full HD 60p is supported via UVC
  2. With Clear Image Zoom in FHD mode

Explore our other modules for Sony PTZ cameras to enhance your setup and performance like (Sony BRC-X400 4K PTZ Camera , Sony SRG-A12/N 4K PTZ Camera , Sony SRG-A40/N 4K PTZ Camera)

Category Specification Details
Camera
Image Sensor 1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels) Approx. 8.5M pixels
Signal System 2160/29.97p, 25p; 1080/59.94p, 50p, 29.97p, 25p; 1080/59.94i, 50i; 720/59.94p, 50p
4K Capability Yes
Minimum Illumination (50IRE) 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution 1700 TV line (Center)(4K), 1000 or higher TV line (Center)(FHD)
Gain Auto/Manual (0 to +48 dB)
High Sensitivity On
Shutter Speed 1/1 to 1/10000 sec (59.94 Hz system); 1/1 to 1/10000 sec (50Hz system)
Exposure Control Auto/Manual/Priority AE (Shutter, Iris)
White Balance Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
Zoom Capability 30x (4K with CIZ*), 40x (HD with CIZ)
Focusing System Auto/Manual
Horizontal Viewing Angle Approx. 70 degree (Wide)
Focal Length f=4.4mm (Wide) to 88.0mm (Tele)
Aperture F2.0 to F3.8
Minimum Object Distance 80 mm (Wide) to 800 mm (Tele)
Pan/Tilt Angle Pan: ±170°, Tilt: +90°/-20°
Pan/Tilt Speed (Max) Pan: 300°/s, Tilt: 126°/s
Pan/Tilt Speed Pan: 1.1° to 101°/s, Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow) Pan: 0.5° to 60°/s, Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode Yes
Pan/Tilt Operation Noise NC30 or less*
Preset Position 100 (VISCA)
Picture Freeze Preset No
PTZ Motion Sync No
Camera Features Auto ICR (Auto mode of IR Cut filter Removal) Yes
Day/Night Yes
Visibility Enhancer Yes
Image Stabilizer Yes
Image Flip Yes
Picture Setting File No
Flicker Cancel On/Off
Hide OSD Menu On/Off
Standby Mode Yes
Remote Standby Yes
Web UI Ver Up Yes

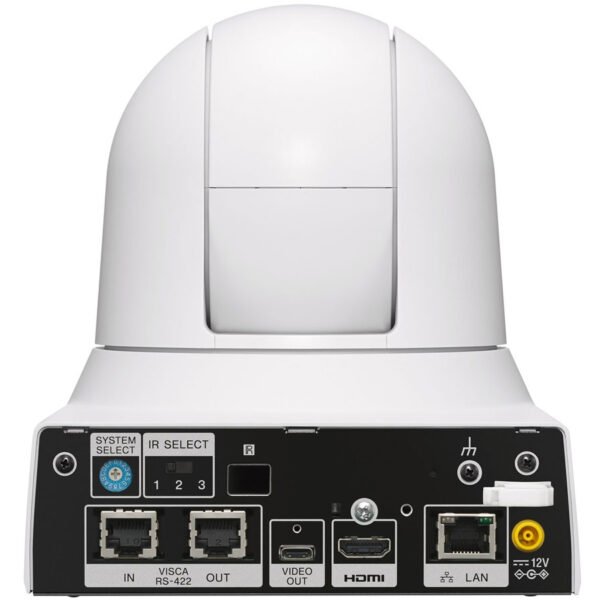

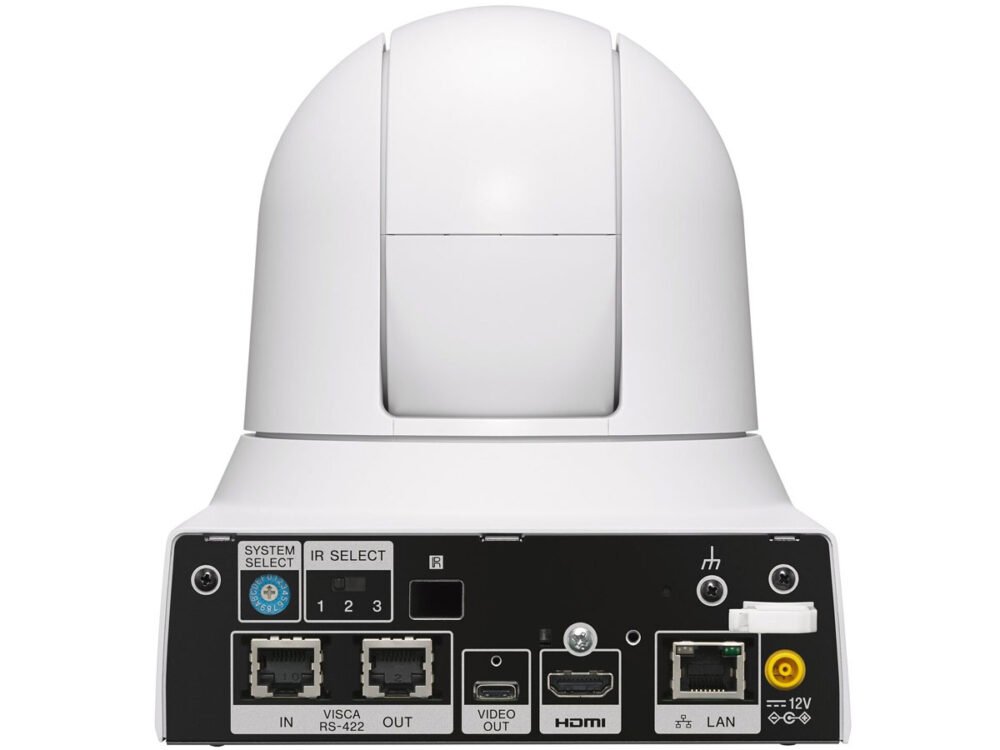

Interface 4K Video Output HDMI x 1
HD Video Output HDMI x 1, USB x 1
Remote Video Format Switching Yes
HDMI Color Space YCbCr, 4:2:2 8bit; RGB, 4:4:4 8bit
Camera Control Interface VISCA RS-422 RJ45 (In/Out); VISCA over IP RJ-45; UVC (USB) USB Type-C (ver.2.0)
IR Remote Control Yes
Sync. System INT
UVC Format MJPEG
UVC Version 1.1
General Power Requirements DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption 25.5W (Max)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (W x H x D) 158.4 x 177.5 x 200.2 mm (6 1/4 x 7 x 8 inch)
Mass Approx. 1.6 kg (3 lb 8.43 oz)
Camera Body Color White/Black
Size of Screw Hole for Tripod 1/4-20UNC x 1
Mountable Angle < ±15°
Ceiling Mount Yes
Supplied Accessories AC power adaptor (1); IR Remote Commander Unit (1); Ceiling bracket (2); Wire rope (1); Screw M3 x 8 (9); Screw M2.6 x 6 BLACK (1); HDMI cable fixing plate (1); Safety regulation (1); Download site information (1); Warranty (1)
Note \*1 The values for dimensions and mass are approximate

Additional information

Color

Black, White

  • Sony SRG-X40UH 4K/HDMI/USB Optical 20x PTZ Camera with PoE+ (White)
  • AC Power Adapter
  • IR Remote Commander
  • 2 x Ceiling Brackets
  • Wire Rope
  • 9 x M3x8 Mounting Screws
  • M2.6×6 Screw (Black)
  • HDMI Cable Clamp
  • Limited 2-Year Manufacturer Warranty
