290Wh B-mount Battery

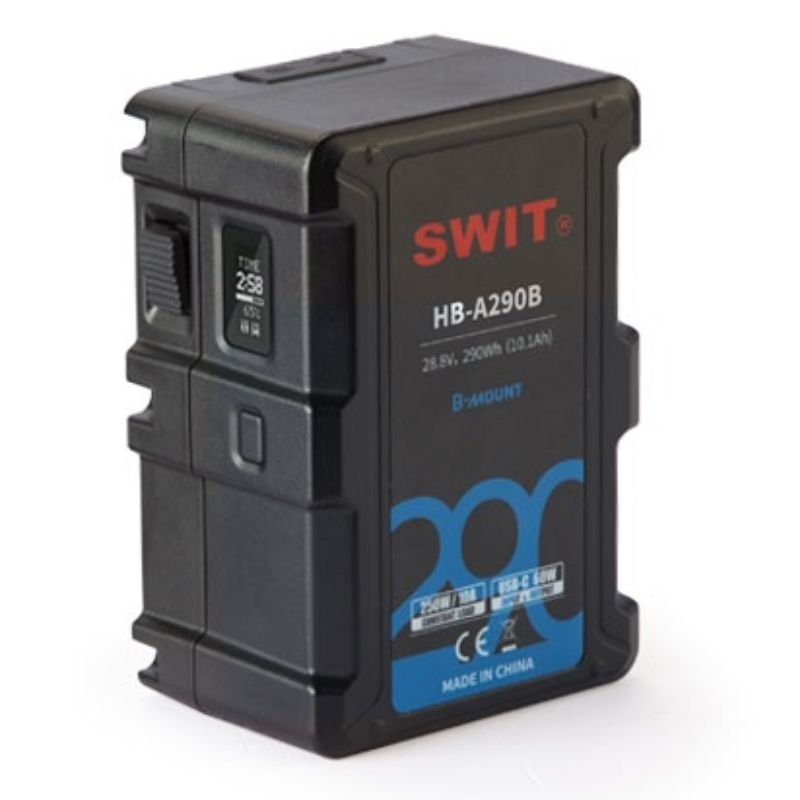

The SWIT HB-A290B is a 290Wh B-mount battery pack built for professional filmmakers. The B-mount interface is a new industry standard endorsed by ARRI and the wider industry. It offers high voltage support and a reliable lock system. As a result, it is a trusted and secure power solution for high-end cine cameras and equipment.

28.8V High Voltage for Cine Cameras

The HB-A290B runs at 28.8V within a range of 21.6V to 33.6V. This matches the power needs of ALEXA35/265, Blackmagic URSA Cine cameras, and other high-power cine equipment. The high voltage reduces current draw, which means a more reliable and longer-lasting power supply on set. In addition, the battery delivers at least 250W and 10A of constant high load for demanding camera and device use.

Multiple Output Options

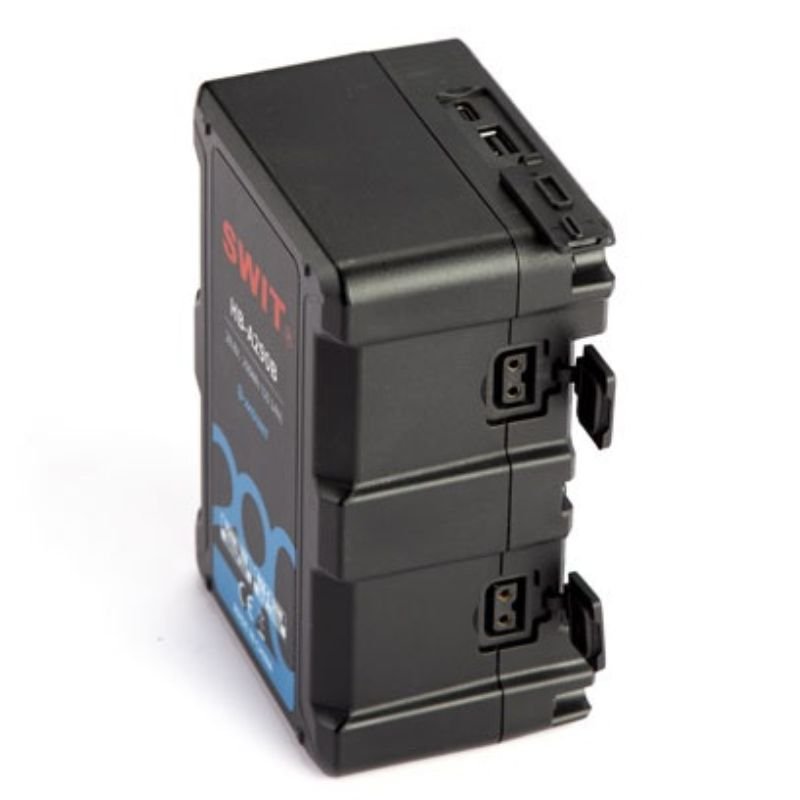

The HB-A290B gives you a wide range of output options. Two D-tap ports deliver regulated 16V at 60W / 3.8A each. One USB-A port outputs 5V at 2A. One USB-C port supports both 60W input for charging and 60W output for powering devices. The USB-C output supports multiple protocols including PD 2.0/3.0, QC 2.0/3.0, FCP, SCP, BC1.2, and voltage levels from 5V to 20V at 3A. Furthermore, it is compatible with Macbook Air, Macbook Pro, Huawei Matebook, Thinkpad, HP, ASUS, Dell, and almost all laptops with USB-C ports.

Charging and Display

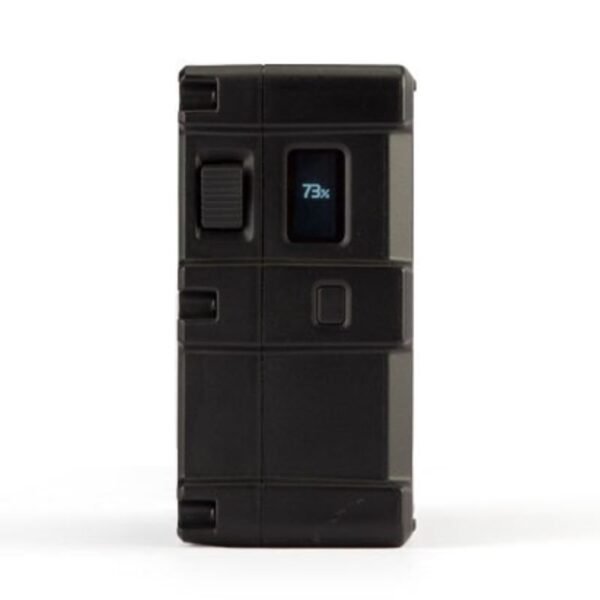

You can charge the HB-A290B via USB-C at PD 15V 3A or 20V 3A, fully charging the 290Wh battery in approximately 5.5 hours. For faster charging, the SWIT PC-P461B B-mount charger charges four HB-A290B batteries at the same time at 33.6V 3A / 100W, completing a full charge in about 3 hours and 50 minutes. The OLED display on the battery shows power percentage, remaining runtime, USB-A and USB-C status, and any protection warning codes if something unusual occurs.

Built Tough for the Field

The HB-A290B survives drops from up to 1.2 meters at any angle, giving you confidence in demanding production environments. A built-in LED torch activates with a double press of the power check button, helping you find B-mount plates in dark environments. It switches off automatically after 30 seconds. Additionally, the ultra-low standby power design holds charge for years without losing power, so there is no need for regular charge-discharge maintenance during storage.

Key Features

• 290Wh / 10.05Ah B-mount battery at 28.8V (21.6V–33.6V)
• Compatible with ARRI ALEXA35/265, Blackmagic URSA Cine, and high-power cine equipment
• 250W / 10A constant high load capacity
• 2x D-tap regulated 16V at 60W / 3.8A each
• 1x USB-A 5V / 2A output
• 1x USB-C 60W input and 60W output
• USB-C supports PD 2.0/3.0, QC 2.0/3.0, FCP, SCP, BC1.2 — 5V to 20V at 3A
• USB-C charging input at PD 15V or 20V / 3A — full charge in 5.5 hours
• 100W super fast charging via SWIT PC-P461B — 4 batteries in 3 hours 50 minutes
• OLED display showing percentage, runtime, USB status, and warning codes
• 1.2m drop-proof at any angle for field durability
• Built-in LED torch activated by double pressing the power check button
• Ultra-low standby power holds charge for years without maintenance

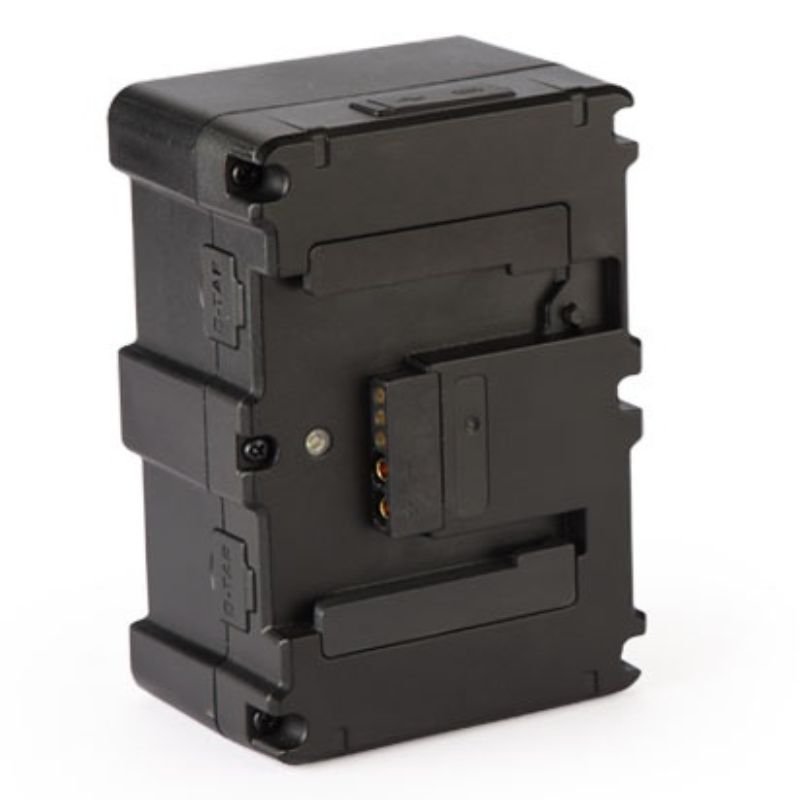

• B-mount interface endorsed by ARRI with reliable lock system
