SmallHD 703 Ultra Bright V-Mount Directors Kit

0 out of 5
( There are no reviews yet. )

11.740,00 AED ex. VAT
12.327,00 AED inc. VAT

Key Features

  • 703U UltraBright Monitor

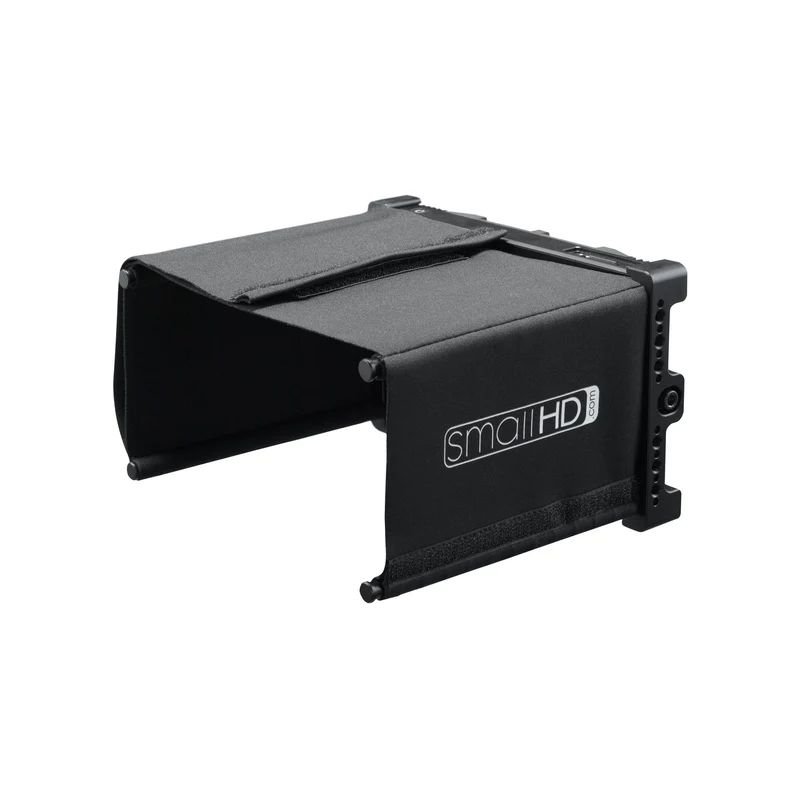

  • 703 Cage and Hood
  • V-Mount Battery Plate

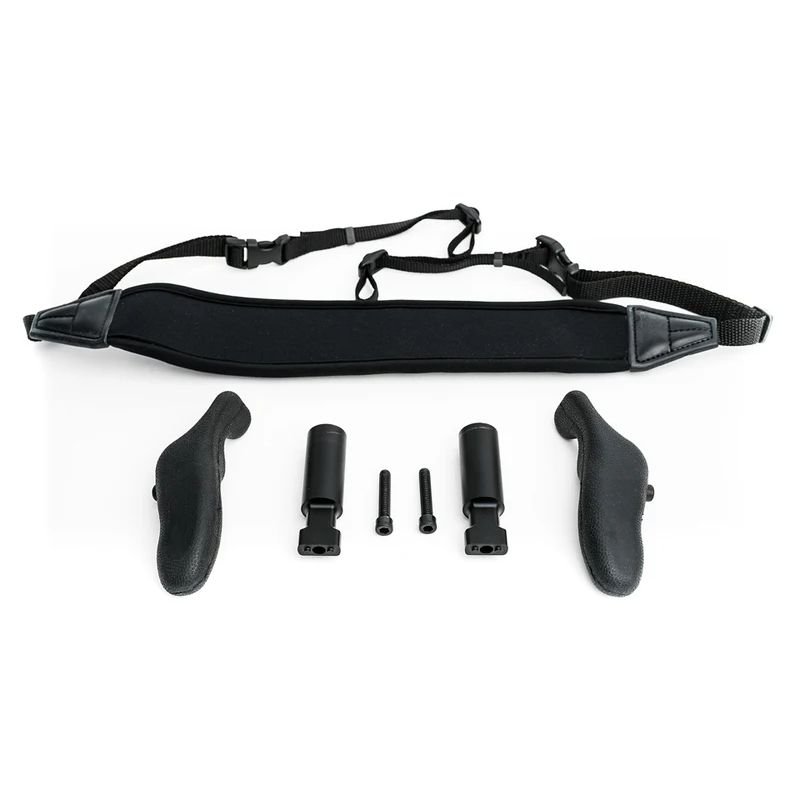

  • Monitor Accessory Handles and Neck Strap
  • Clear and Ultra-Matte Screen Protectors
  • BNC Cables
  • D-Tap to 2-Pin LEMO Power Cable
  • Cleaning Cloth
Availability: 1 in stock SKU: MON-703U-VM-DK Categories: , , Tag:

Related Products

Description

[vc_row][vc_column][vc_column_text]

This SmallHD 703 UltraBright Directors Kit with V-mount battery plate provides you with a 7″, 2200 cd/m² brightness monitor, a cage and sun hood, accessory handles and neck strap, as well as screen protectors, BNC cable, D-Tap to 2-pin LEMO power cable, and a cleaning cloth. This kit makes it simple for the director to see what the camera sees, indoors or out. The included handles allow the monitor to be easily gripped, positioned, or held, while the neck strap helps prevent the monitor from crashing to the ground when held by an easily distracted operator.

The UltraBright monitor’s display is easily visible outdoors, even on bright days, and the included antireflection screen protector helps with visibility on gray, overcast, glare-riddled days. If you don’t need the anti-glare properties, you can use the included clear screen protector instead. Either protects your screen from day-to-day wear, but the screen protector will not protect your monitor or screen from impact damage.

SmallHD 703 UltraBright On-Camera Monitor

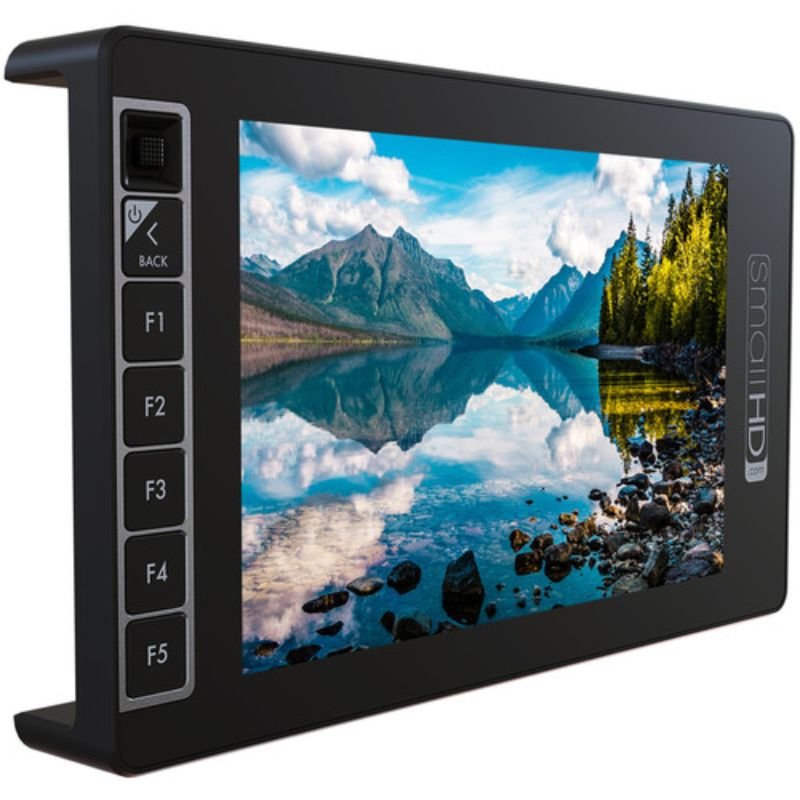

Though monitoring HD video signals outdoors can be difficult, the SmallHD 703 UltraBright On-Camera Monitor, with its 2200 cd/m² bright backlight, overcomes this environmental difficulty. The 7″ 1920 x 1080 LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. Another advantage of the high-brightness panel is the monitor’s ability to preview HDR content. HDR preview extends the display’s dynamic range to portray a greater range of brightness in the image.

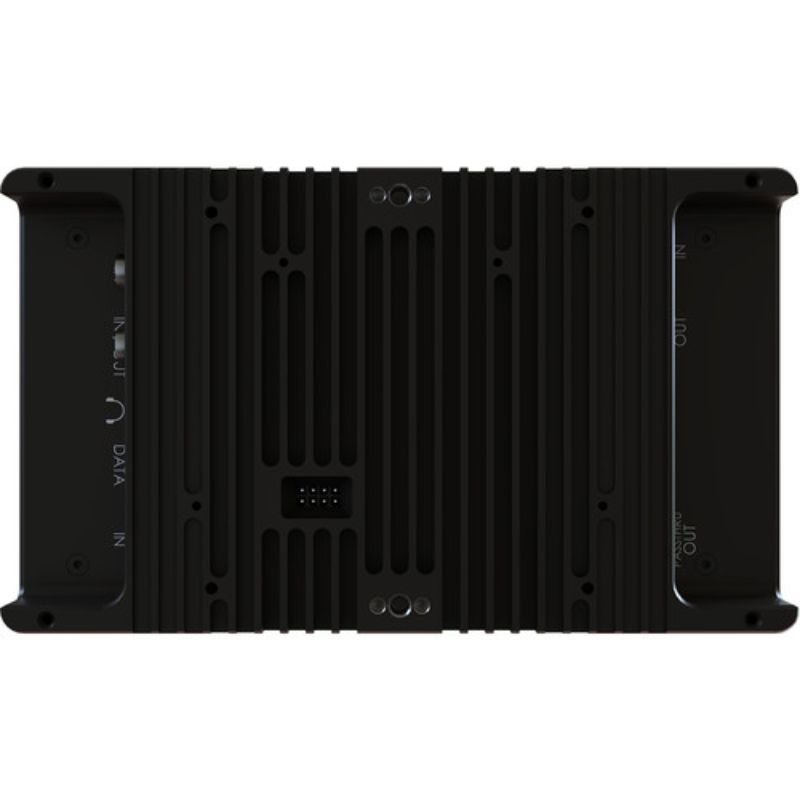

A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.

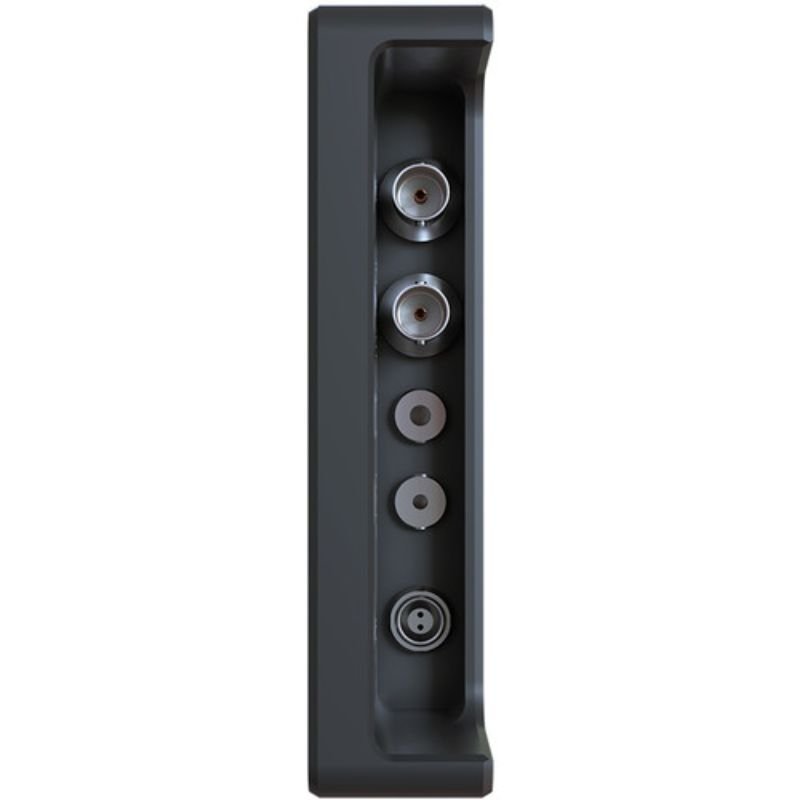

On the sides of the display are the SDI and HDMI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface.

PageBuilder OS

PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 703 UltraBright at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different “pages”. These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.

ColorFlow 3D LUT Processing

To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Side-by-side preview can also be used with the HDR preview function. Separate LUT-treated images can be sent downstream over SDI and HDMI so you can have the 703 UltraBright display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.

On-Set Problem Solving

PageBuilder OS has a dedicated “Output Preview” page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 703 UltraBright, you are not limited by that protocol; the 703 UltraBright cross-converts to ensure compatibility with downstream hardware.

HD Scopes

Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed.

Exposure Tools

Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Customizable Focus Assist and Peaking Tools

As recording resolutions increase, so does the importance of focusing precision. With Focus Assist, you can highlight the areas that are in focus with a bright color. These highlights are easily visible on the fly for quick focus confirmation. Focus Peaking increases the sharpness of the image for a subtler focus confirmation without the need for bright outlines. The color and intensity of these tools are adjustable to fit your preference.

Versatile Frame Guides

Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user selectable).

Power Options

Separately available DV, V-Mount, or Gold Mount battery plates can be attached to the rear of the display. A mounted battery can power the monitor, as well as attached accessories, through the 12V LEMO pass-through connection.

[/vc_column_text][/vc_column][/vc_row]

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

  • SmallHD 703 UltraBright On-Camera Monitor
  • SmallHD 2-Pin LEMO to D-Tap Power Cable (36″)
  • SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor (V-Mount)
  • SmallHD Cage and Hood Kit for 703 UltraBright Monitor
  • SmallHD Mounting Cage for 703 UltraBright Monitor
  • SmallHD Sun Hood for 703 UltraBright Monitor
  • SmallHD Monitor Handles and Neck Strap
  • 2 x Mounting Screw
  • SmallHD Thin BNC Cable (12″)
  • SmallHD Thin BNC Cable (48″)
  • SmallHD D-Tap to 2-Pin Power Cable (36″)
  • SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors
  • SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors
  • SmallHD Microfiber Cleaning Cloth
