Camera type

Digital motion picture camera

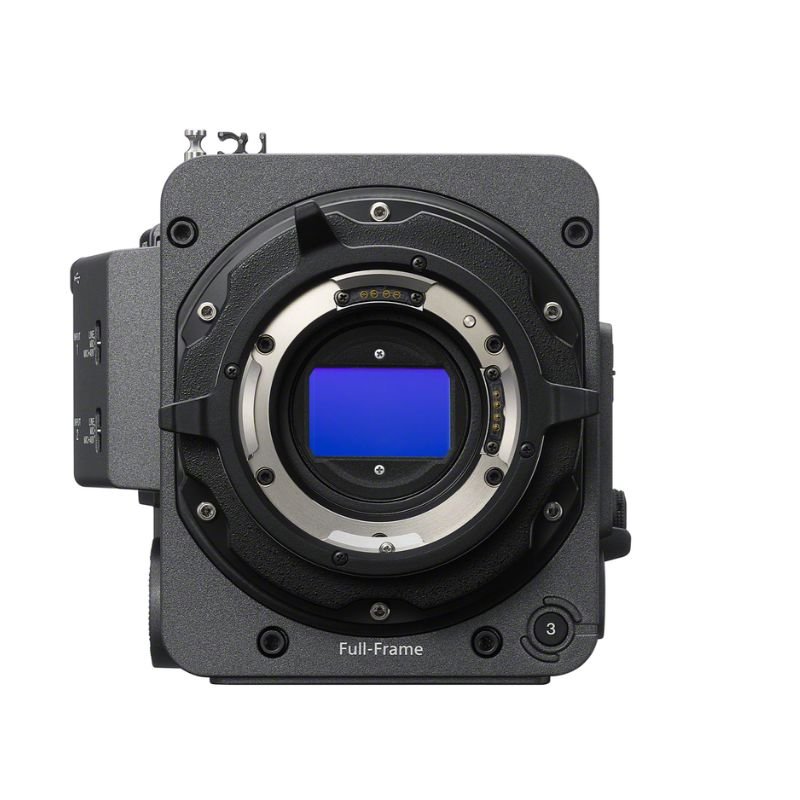

Lens mount

PL Mount (detachable)/E-mount (lever lock type)

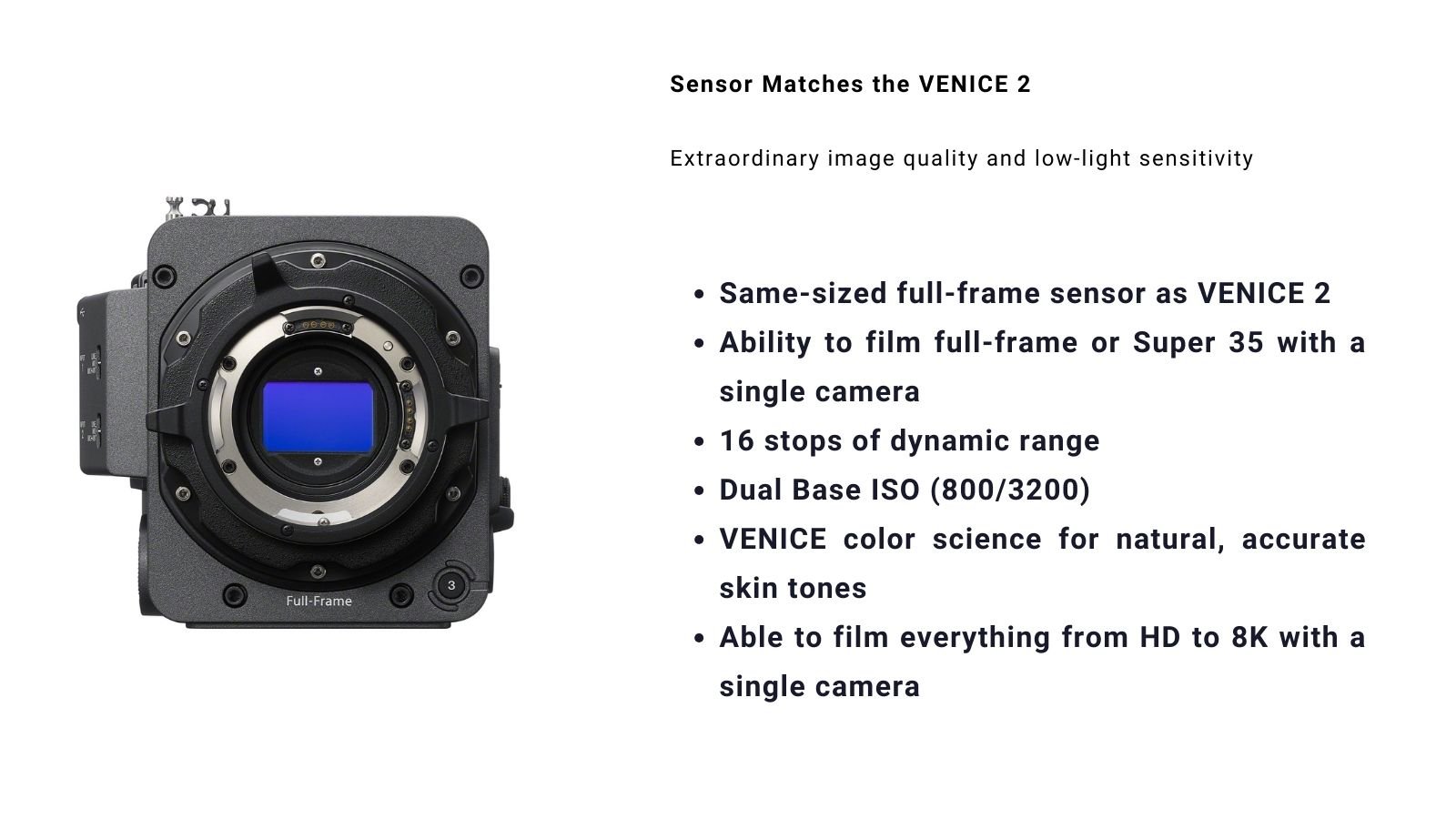

Type

35 mm full frame (35.9 x 24.0 mm), Exmor RS CMOS image sensor

Number of pixels (effective)^*1

Approx. 41.9 megapixels

Optical low pass filter

Yes

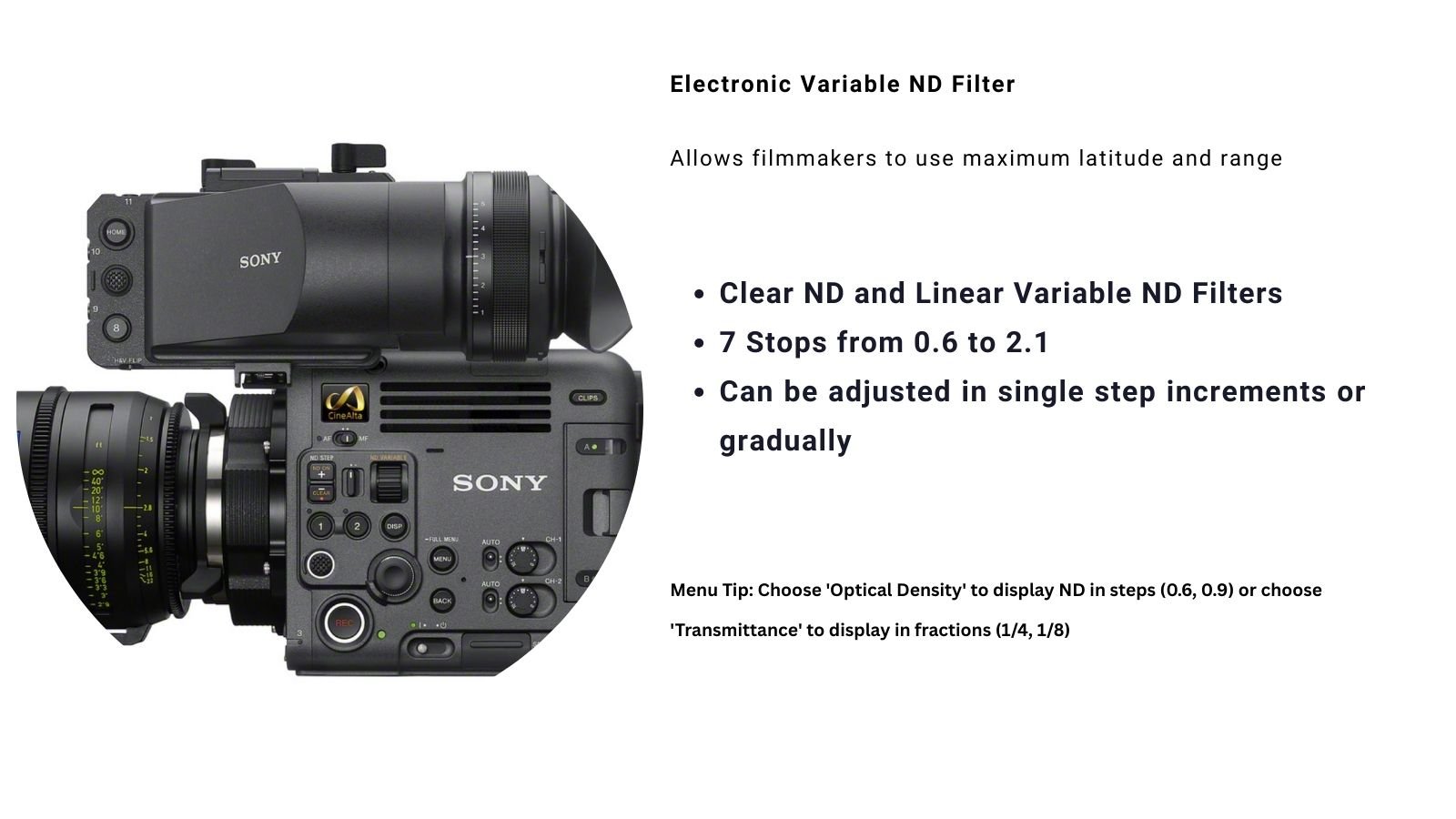

Built-in ND filter

CLEAR, linear variable ND (0.6(1/4) – 2.1(1/128))

Gain control

-3 to 18 dB (every 1 dB)

Latitude

16 stops

Color temperature range

2000 K – 15000 K

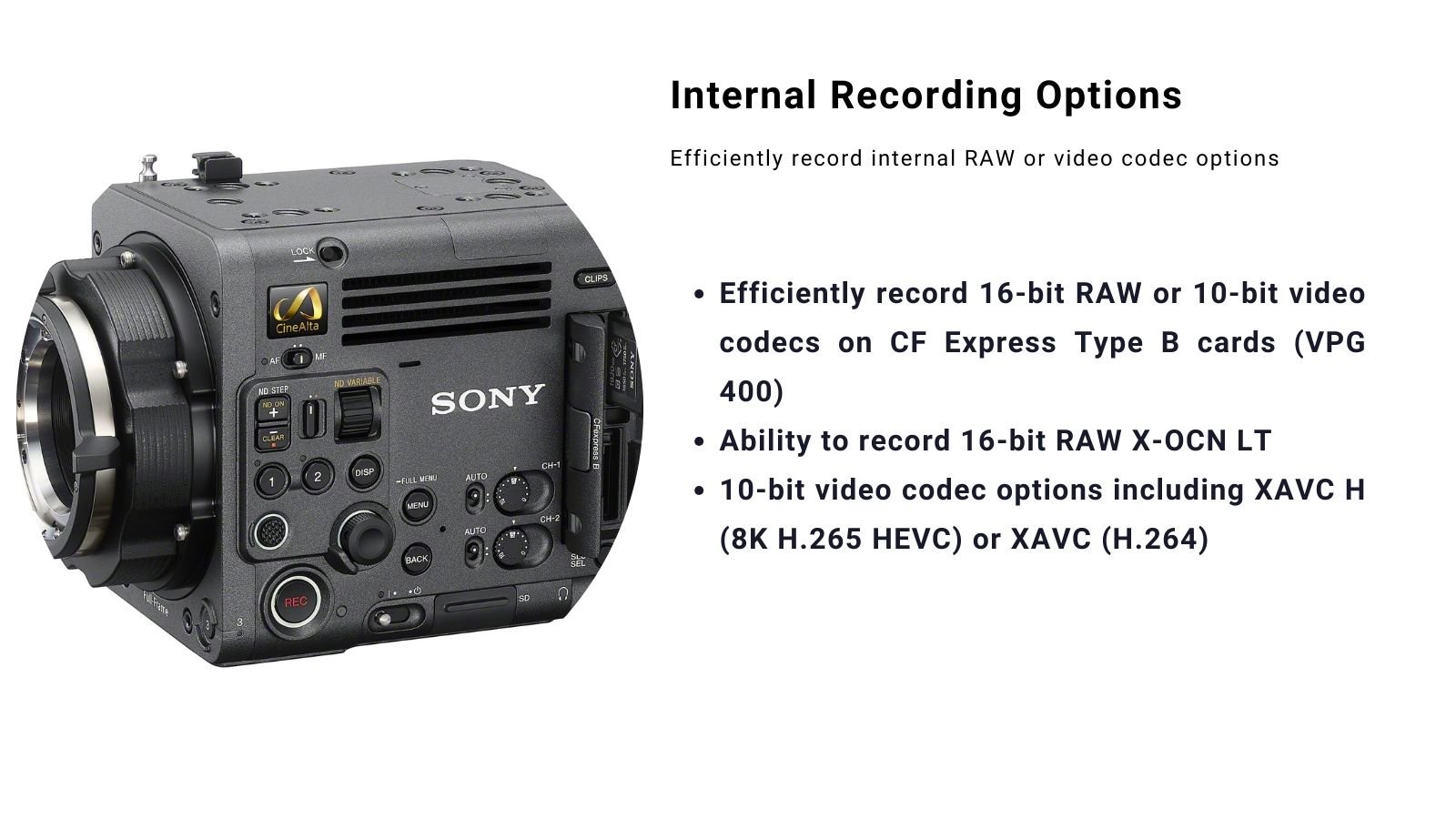

Video compression

X-OCN(LT), XAVC H Intra HQ, XAVC H Intra SQ, XAVC H Long, XAVC Intra, XAVC Long

Audio recording format

LPCM 4ch (48 kHz 24 bit)

Slow & Quick Motion (S&Q)

Yes

Proxy recording

Yes

TC/UB

Yes

Memory card slot

SLOT A: Slot for CFexpress Type B card, SLOT B: Slot for CFexpress Type B card, Slot for Utility SD card

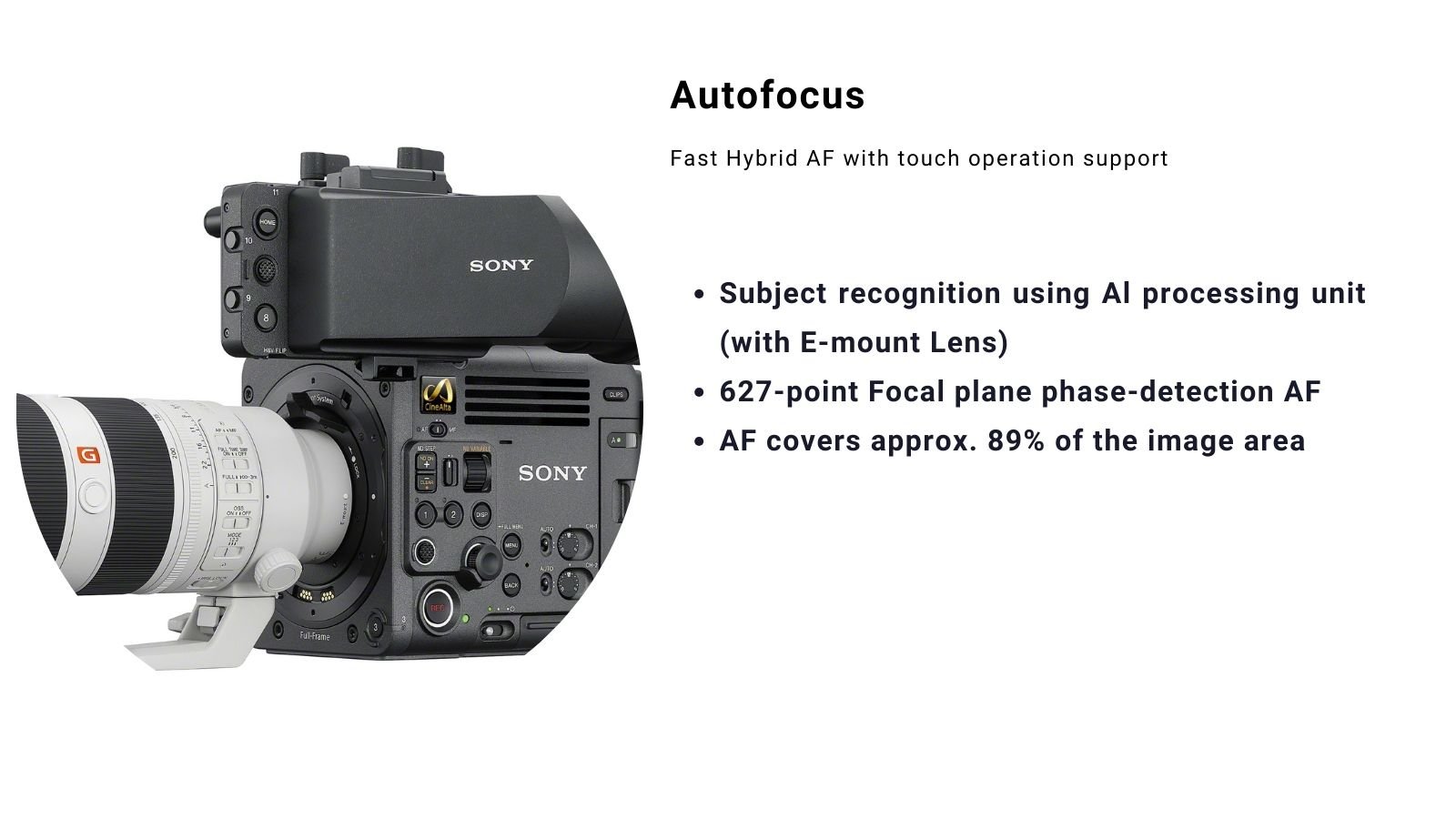

Type

Fast Hybrid AF (phase-detection AF / contrast-detection AF)

Focus point

Max. 627 points (phase-detection AF)

Recognition target (Movies)

Human

Other features

AF Subj. Shift Sensitivity
AF Transition Speed
AF Assist

ISO sensitivity

ISO 800/3200 (Cine EI mode, D55 Light source)

Type

8.8 cm (3.5 type) TFT

Touch panel

Yes

Number of dots (total)

2,764,800 dots

Shutter speed

Angle Mode: 5.6°to 360°, 2F to 64F
Speed Mode: 1/8000 sec to 64F

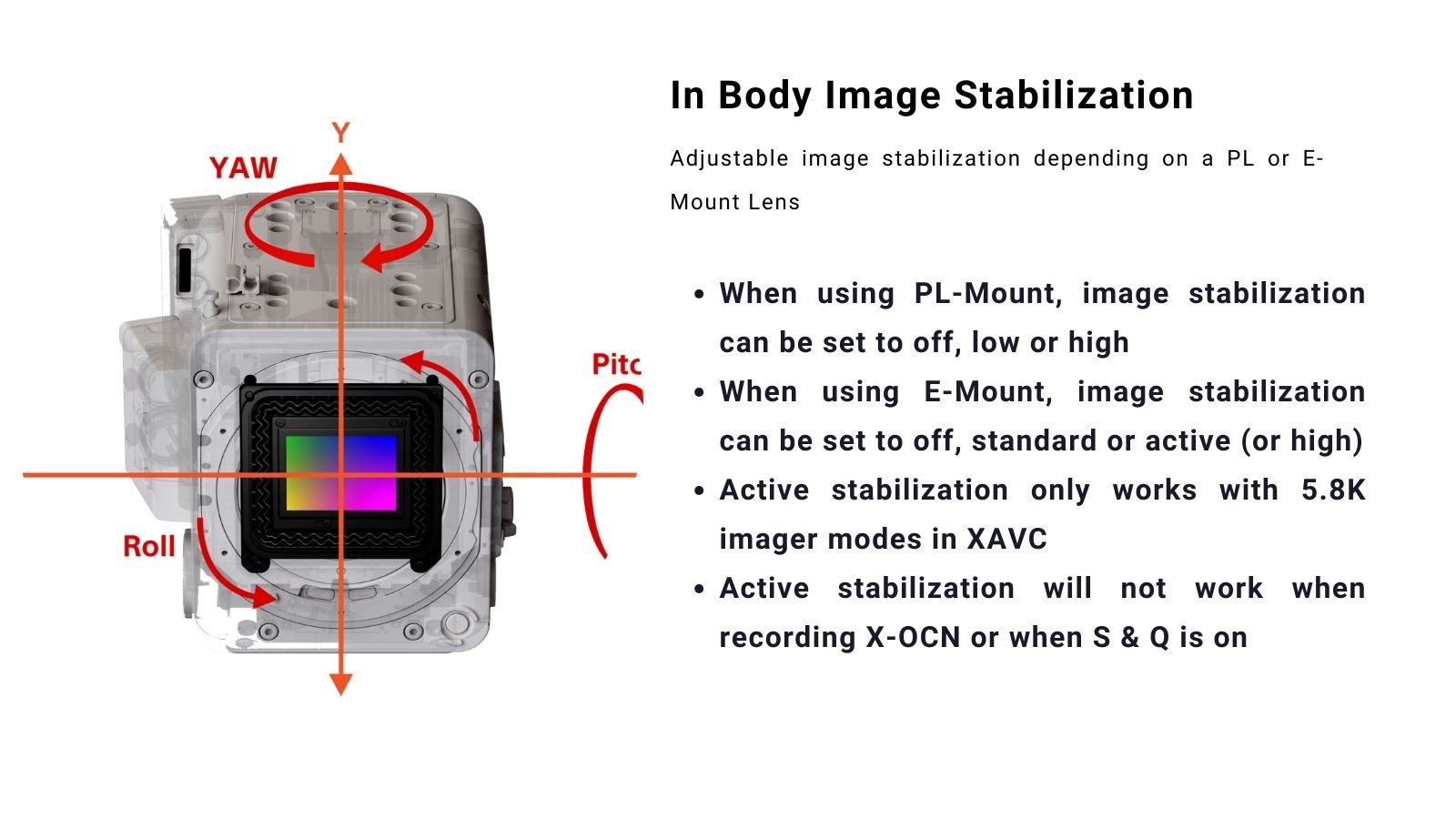

Type

Image Sensor-Shift mechanism with 5-axis compensation
(Compensation depends on lens specifications)

Mode

PL mount: High / Low / Off
E-mount: Active / Standard / Off

PC interface

Mass-storage

USB Type-C® Terminal

Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)

Wireless LAN (built-in)

Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac (2.4 GHz band/5 GHz band))*2*3

HDMI output

HDMI connector (Type-A)

XLR audio input

Yes (3-pin (female) x2)

Headphone terminal

Yes (3.5 mm Stereo mini jack)

Remote terminal

2.5 mm, 3-pole sub-mini type

SDI output

SDI OUT1: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), HD-SDI
SDI OUT2: BNC, 3G-SDI (Level A/B), HD-SDI

DC input

XLR, 11 V to 17 V

TC input/TC output

BNC, TC IN/OUT Switchable

Genlock input/Ref output

BNC, REF IN/OUT Switchable

Grip remote control connector

3.5 mm, 4-pole mini jack

LAN terminal

Yes (1000BASE-T, 100BASE-TX, 10BASE-T)

Microphone

Built-in, monaural

Speaker

Built-in, monaural

Lens compensation

E-mount: Shading, Chromatic Aberration, Distortion, Breathing

Battery

Battery pack BP-GL95B (Sold separately)

With LCD screen

Unit nominal power consumption: Approx. 50.0 W (lens, 6K 17:9, 59.94P, X-OCN LT recording, auto fan, excluding grip remote control and peripheral devices)
Unit maximum power consumption: Approx. 66.0 W (lens, 6K 17:9, 59.94P, X-OCN LT recording, 40 °C (104 °F) environment, ND filter (1/4), proxy recording on, Wi-Fi on, auto fan, including grip remote control and peripheral devices)

Body only

Approx. 2.4 kg (body only, excluding PL-mount adapter)

Body only (oz.)

Approx. 5 lb 4.7 oz (body only, excluding PL-mount adapter)

Dimensions (W x H x D)

145.7 mm x 142.5 mm x 218.1 mm (body without protrusions)

Dimensions (W x H x D) (in)

145.7 mm x 142.5 mm x 218.1 mm (body without protrusions)

Operating temperature

0 – 40 °C / 32 – 104 °F

Storage temperature

-20 to 60 °C / -4 to 140 °F

Supplied Accessory

Handle (with viewfinder arm) (1)
Handle mounting screws (4)
LCD monitor (1)
Viewfinder loupe (1)
Viewfinder mount adapter (1)
Shim (circular) (1)
Shim (1/3 arc) (15)
E-mount cap (1)
PL mount cap (1)

*1

Number of effective pixels varies depending on attached lenses and camera settings.

*2

Models sold in some countries/regions support IEEE 802.11b/g/n (2.4 GHz) wireless LAN only.

*3

(Configuration method/Access method) WPS or manually /infrastructure mode. When connecting to smartphones, the camera can always work as a base without a wireless access point. (Security: WEP/WPA-PSK/WPA2-PSK/WPA3-SAE)
