Sony PXW-Z200 1.0 CMOS Sensor XDCAM Camcorder

0 out of 5
( There are no reviews yet. )

14.951,00 AED ex. VAT
15.698,55 AED inc. VAT

  • 1.0-type Exmor RS CMOS sensor 14.0 MP effective
  • BIONZ XR Image processor, AI Processing Autofocus, Auto Framing
  • S-Cinetone, ITU709, 709tone, HLG Options
  • Multiple recording formats (XAVC, XAVC S-I, XAVC HS-L)
  • 12G SDI output, Wireless monitor & Control app
  • 4K 120fps & FHD 240fps High Frame Rates
  • 20x optical zoom, Clear Image Zoom (30x in 4K, 40x in FHD)
  • Up to UHD 4K 60p HDR with HLG
  • Electronic Variable ND Filter, Auto/MANUAL switch
  • 2.4/5 GHz Live Streaming, Timecode I/O
  • Dual card slots (CFexpress Type A, SDXC), 4-channel audio
Availability: Available on backorder SKU: PXW-Z200 Categories: , Tags: , , , Brand: Sony
International Orders: Shipping cost depends on your country and order weight. Please contact us to complete your order.

Related Products

Description

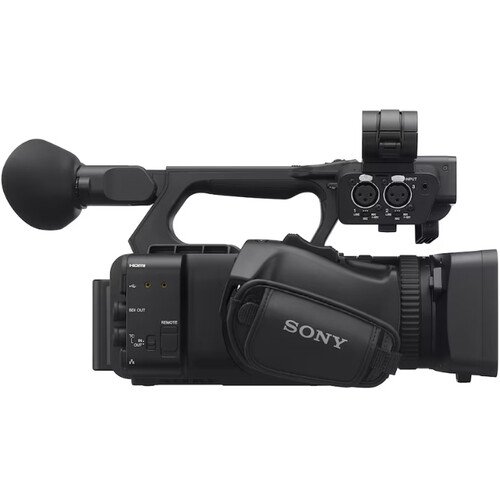

PXW-Z200 1.0 CMOS Sensor XDCAM Camcorder

The Sony PXW-Z200 is a high-performance 4K HDR camcorder designed for broadcast and professional video production. Specifically, it features a 1.0-type Exmor RS stacked CMOS sensor for incredible detail and low-light sensitivity. Because it utilizes the advanced BIONZ XR processor, the camera easily captures 4K footage at up to 120fps. Furthermore, the inclusion of S-Cinetone allows for effortless color-matching with Sony’s Cinema Line cameras. Consequently, this camcorder is the ideal tool for news, events, and high-end documentaries.

AI-Enhanced Shooting and Precision Focus

This camcorder uses Sony’s latest AI Processing Unit to recognize and track human subjects with extreme accuracy. For instance, the Fast Hybrid AF system maintains sharp focus even when subjects move quickly across the frame. Additionally, the PXW-Z200 features a unique Electronic Variable ND Filter for seamless exposure control. This allows you to maintain a consistent depth of field while lighting conditions change. Alternatively, you can activate the Auto ND function to let the camera manage exposure for you instantly.

Broadcast Connectivity and Remote Workflow

The PXW-Z200 is built for professional broadcast environments. Specifically, it includes a 12G-SDI output, which provides four times the bandwidth of standard 3G-SDI over a single cable. Moreover, the camera features Timecode (TC) input/output and supports broadcast-standard XAVC (MXF) recording. For wireless workflows, the built-in dual-band Wi-Fi enables direct streaming to the cloud via the XDCAM Pocket app. As a result, you can monitor your shots remotely and deliver high-quality content faster than ever before.

Key Features

  • 1.0-type Exmor RS Sensor: Delivers 14.0 megapixel resolution with high sensitivity.
  • 12G-SDI Output: Supports high-bandwidth 4K video transfer over a single cable.
  • AI Subject Tracking: Uses deep learning to maintain precise focus on human subjects.
  • Broadcast Ready: Includes TC Input/Output and XAVC (MXF) recording formats.
  • High Frame Rates: Shoot up to 120fps in 4K or 240fps in Full HD for slow motion.
  • 20x Optical Zoom: Powerful G Lens covers a massive range for versatile framing.
  • Variable ND Filter: Smoothly adjust light from 1/4 to 1/128 ND without stopping.
  • Professional Connectivity: Built-in 2.4/5 GHz Wi-Fi and Ethernet for stable streaming.
General
Camera Type Solid-state memory camcorder
Mass (Main Body Only) Approx. 1960 g (4 lb 5.1 oz.)
Mass (Including Accessories & Battery) Approx. 2400 g (5 lb 4.7 oz.) *1
Dimensions (W x H x D) Approx. 175.6 x 201.3 x 371.1 mm (7 inch x 8 inch x 14 5/8 inch)
Battery BP-U35, BP-U70, BP-U100
USB Battery Availability Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)
Power Requirements DC 19.5 V
Normal Power Consumption Approx. 20 W
Maximum Power Consumption Approx. 37 W
Operating Temperature 0 to 40 ℃ (32 to 104 ℉)
Storage Temperature -20 to 60 ℃ (-4 to 140 ℉)
Battery Operating Time (Continuous Shooting) 90 minutes *2
Recording Format (Video) XAVC S: MPEG-4 AVC / H.264; XAVC HS: MPEG-H HEVC / H.265
Lens
Zoom Ratio 20x
Focal Length f=7.71-154.21 mm
Focal Length (35mm Format Equivalent) 24-480 mm
Iris (Maximum Apertures) F2.8-F4.5
Focus Range (From the front of the Lens) Approx. 1 cm (0.03 ft) to ∞ (wide)
Focus Range (Telephoto) Approx. 100 cm (3 ft) to ∞
Filter Diameter 72 mm
Camera Section
Imaging Device (Type) 1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
Number of Pixels (Total) Approx. 20.9 megapixels
Number of Pixels (Effective) Approx. 14.0 megapixels max. *3
Built-in ND Filter Linear variable ND (1/4 ND – 1/128 ND)
Minimum Illumination 1.2 lx (typ) *4
RAW Output –
Optical Low Pass Filter Yes
Shutter Type Electronic shutter
Shutter Speed 1/8000 sec to 64F
Slow & Quick Motion (S&Q) Yes
White Balance 2000 K – 15000 K
Gain -3 to 36 dB (Every 1 dB)
Base Look S-Cinetone, ITU709, 709tone, s709, 709(800%), S-Log3, HLG (Live / Mild / Natural)
Image Stabilization (Type) Lens-shift mechanism and electronic
Image Stabilization (Mode) Active / Standard / Off
Lens Compensation Peripheral Shading, Chromatic Aberration, Distortion
ISO Sensitivity ISO 250-16000 equivalent (Using SDR Reset look), AUTO (ISO 250-16000, selectable limits)
Focus Type Fast Hybrid AF (Phase-detection AF / contrast-detection AF)
Focus Point Max. 475 points (Phase-detection AF)
Focus Recognition Target Human
Other Focus Features AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist
Proxy Recording Yes
Clear Image Zoom Approx. 1.5x (4K), approx. 2x (HD)
Interface
Audio Input 3.5 mm Stereo minijack, XLR 3-pin (Female) x2
Multi Interface Shoe Yes (With Digital Audio Interface)
Built-In Microphone Built-in, stereo
Headphone Terminal Yes (3.5 mm Stereo minijack)
Built-In Speaker Built-in, monaural
Recording System (Audio) LPCM 4ch (48 kHz 24 bit)
SDI Output BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A / B), HD-SDI
HDMI Output HDMI connector (Type-A)
TC / UB Yes
Timecode Input / Output BNC, TC IN/OUT Switchable
Genlock Input –
Multi / Micro USB Terminal –
USB Terminal Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
DC Input Yes
Remote Yes (2.5 mm Stereo mini-mini jack)
Remote (Wireless) Yes (Bluetooth remote control)
Wired LAN Yes (1000BASE-T, 100BASE-TX, 10BASE-T)
Wireless LAN (Built-In) Yes (Wi-Fi Compatible, IEEE 802.11a / b / g / n / ac (2.4 GHz band / 5 GHz band)) *5 *6
PC Interface Mass-storage / MTP
Other Function FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)
Viewfinder
Type 1.0 cm (0.39-type) electronic viewfinder (XGA OLED)
Number of Dots 2 359 296 dots
Magnification Approx. 1.07x *7 with 50 mm lens at infinity, -1 m-1
Diopter Adjustment -4.0 to +3.0 m-1
Eye Point Approx. 22 mm from the eyepiece lens, at -1 m-1 *8
LCD Screen
Type 8.8 cm (3.5-type) type TFT
Touch Panel Yes
Number of Dots (Total) 2 764 800 dots
Media
Type SLOT A: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card

SLOT B: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card
NFC –
Streaming
Protocols RTMP, RTMPS, SRT
Video Data Format MPEG-4 AVC / H.264

MPEG-H HEVC / H.265
Video Resolution 3840 x 2160 (Using RTMP / RTMPS), 1920 x 1080, 1280 x 720
Audio Data Format AAC-LC 2ch (16bit 48 kHz)
  • When attaching lens hood, LCD hood, microphone holder, eyecup and BP-U35.
  • Using BP-U35, normal power consumption.
  • The number of effective pixels will vary depending on the shooting mode and settings.
  • 3840 x 2160 / 29.97p mode, F2.8, +36 dB gain, SS=1/30 (sec), BaseLook=ITU709.
  • 35 mm camera equivalent.
  • CIPA standard.
  • (Configuration method / Access method) WPS or manually / infrastructure mode. When connecting to smartphones, the camera can always work as a base without a wireless access point. (Security: WEP / WPA-PSK / WPA2-PSK / WPA3-SAE).

In The Box

  • Sony PXW-Z200 1.0 CMOS Sensor XDCAM Camcorder.
  • AC adaptor
  • Power cord
  • Battery charger
  • Rechargeable Battery
  • LCD hood
  • Lens hood
  • Eyecup
  • Microphone holder
  • Cold shoe kit
