Sony UWP-D22 Handheld Wireless Microphone Package

0 out of 5
( There are no reviews yet. )

2.199,00 AED ex. VAT
2.308,95 AED inc. VAT

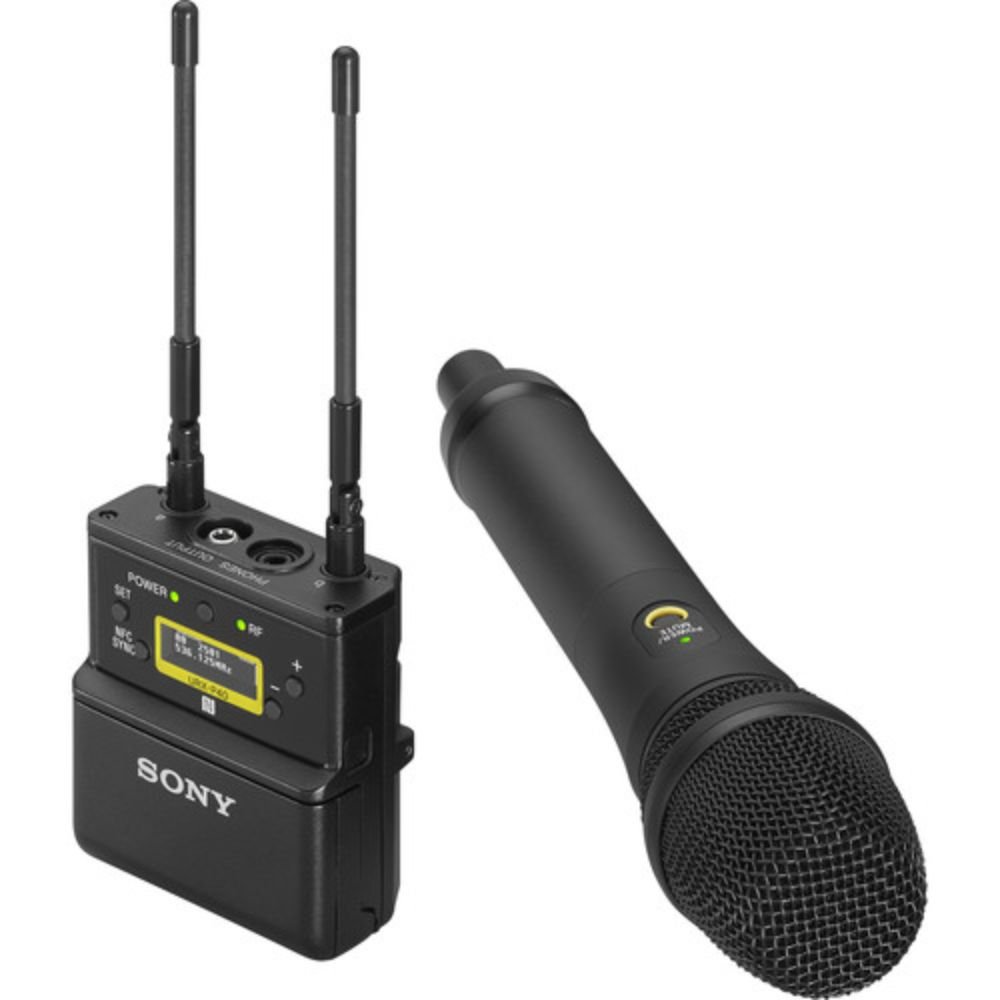

  • UWP-D22 package includes UTX-M40 handheld microphone and URX-P40 receiver
  • Sony digital audio processing with reliable RF transmission
  • True double tuner diversity for stable signal reception
  • NFC SYNC enables quick and secure channel setting
  • Compact and lightweight design for ENG, EFP, documentaries, weddings, and remote production
SKU: UWP-D22 Categories: , , Tag: Brand: Sony
International Orders: Shipping cost depends on your country and order weight. Please contact us to complete your order.

This Product For Pre Order Only, Delivery Time 3-4 Weeks

Related Products

Description

UWP-D22 Wireless Microphone

Capture clear audio with the Sony UWP-D22 UWP-D handheld wireless microphone package. It combines digital audio processing, reliable RF transmission, true double tuner diversity reception, and practical features for professional video production.

High-Quality Wireless Audio

The UWP-D22 delivers high-quality sound through Sony digital audio processing and reliable RF transmission. True double tuner diversity reception helps provide stable signal reception. The package includes the UTX-M40 handheld microphone and URX-P40 receiver, plus accessories.

Sony digital audio processing improves transient response performance. An optional digital audio interface can enable direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras through the SMAD-P5 Multi Interface MI shoe adapter. This bypasses A/D and D/A conversion stages.

Fast Frequency Setup

The NFC SYNC function provides quick and easy secure channel setting between the transmitter and receiver. The system also supports IR sync capability with the UTX-M40 transmitter from URX-P03, URX-P03D, and URXS03D receivers.

Channel memory enables fast switching between receiver frequencies for two-transmitter operation. The transmitter frequency can also be sent to the receiver to match multiple receivers to one transmitter.

Flexible Audio Control

The UWP-D22 includes auto gain mode volume control and a +15 dB gain volume boost mode for off-mic audio. It also provides a headphone output for monitoring and a monitor mode that allows the receiver to work as an ear monitor. Variable muting and receiver output level control add further control options.

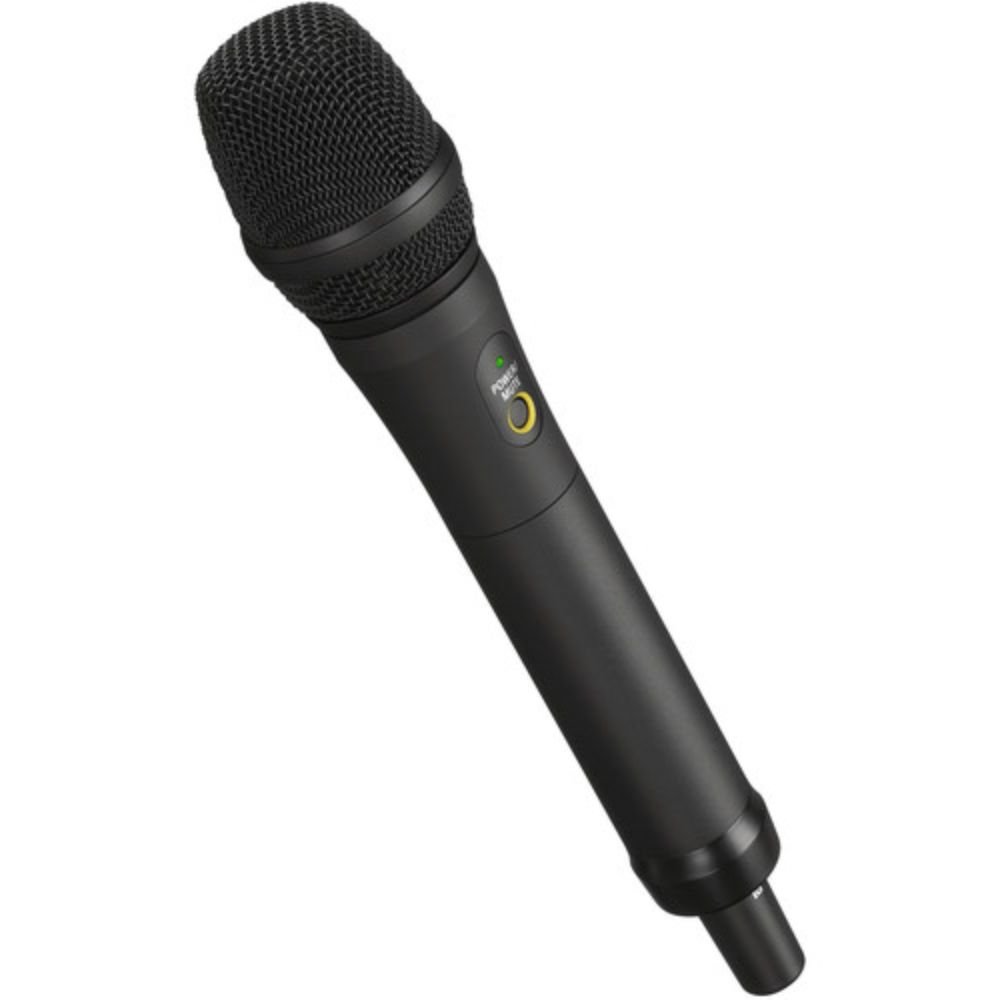

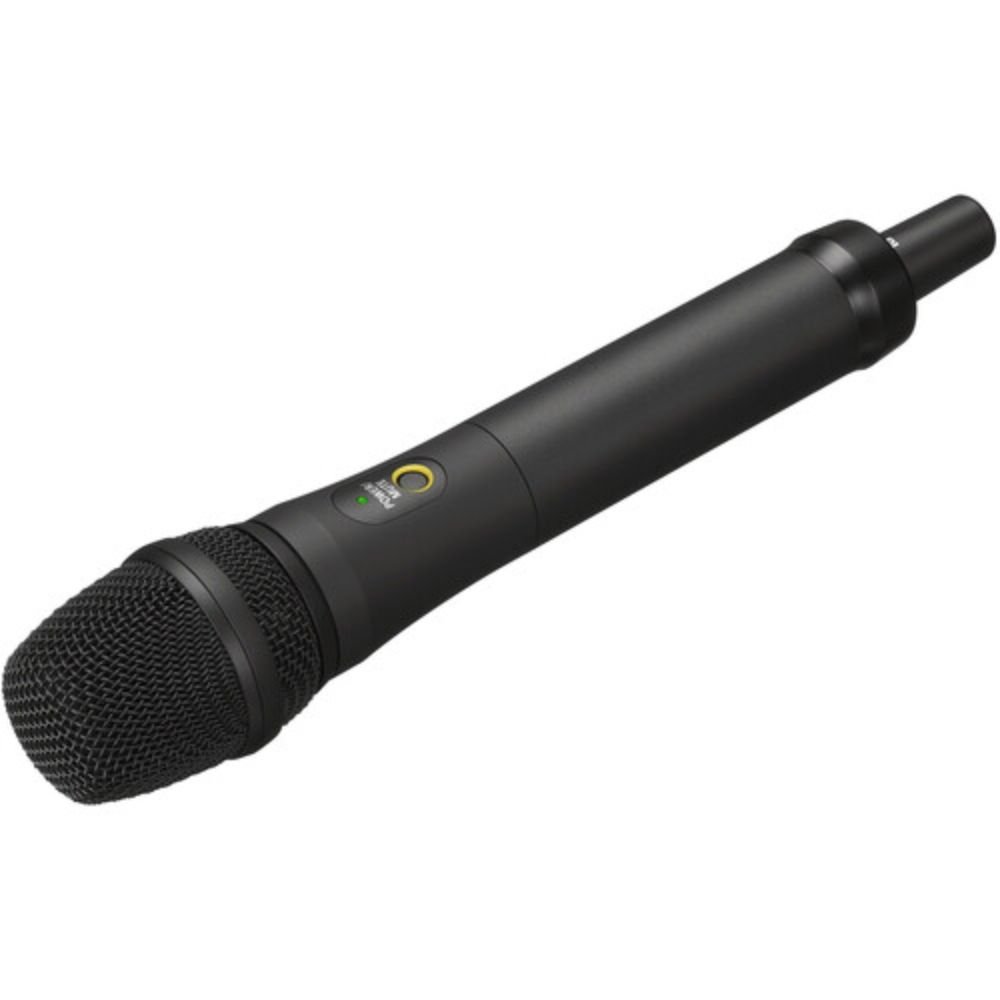

The handheld microphone uses an interchangeable head, providing a wide choice of microphone capsules. The system is compatible with the Sony WL-800, UWP, and UWP-D series.

Camcorder Integration

With compatible Sony camcorders and the optional SMAD-P5 Multi Interface shoe adapter, the receiver can display audio information such as RF level, audio mute status, and transmitter low-battery alerts in the camera’s viewfinder. The SMAD-P5 can transmit audio signals from the receiver to the camera without a cable connection.

The wireless receiver can also receive power from the camera, with synchronized power on and off between the camera and receiver for power management.

Compact and Mobile Design

The UWP-D series uses a reduced system size and weight to support mobility across a wide range of applications. The UWP-D22 suits ENG, EFP, documentaries, weddings, news, and remote production. Its compact and lightweight receiver also pairs well with small camcorders and interchangeable lens digital cameras.

The URX-P40 includes a USB connector for power supply and features a high-visibility OLED display designed for indoor and outdoor use. The system also supports digital audio interfaces with the optional SMAD-P5 Multi Interface MI shoe adapter.

Key Features:

  • UTX-M40 handheld microphone and URX-P40 receiver package
  • Sony digital audio processing for high-quality sound
  • Reliable RF transmission and true double tuner diversity reception
  • NFC SYNC for quick and secure channel setting
  • Interchangeable microphone head for a wide choice of capsules
  • Real-time camcorder integration with optional SMAD-P5 adapter
  • Auto gain, +15 dB gain boost, monitoring, and variable muting functions
  • Compact and lightweight design for mobile production
SpecificationURX-P40 Portable ReceiverUTX-M40 Handheld Microphone
Oscillator TypeCrystal-controlled PLL synthesizer
Reception TypeTrue diversity methodN/A
Antenna Type1/4 λ wavelength wire antenna (angle-adjustable)1/4 λ wavelength wire antenna
Capsule Type / DirectivityN/ADynamic / Uni-directional
Carrier Frequencies14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ / J : 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz
RF Output PowerN/A30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)
Frequency Response23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (typical) (J model)		70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
70 Hz to 15 kHz (Typical) (J model)
Signal-to-Noise Ratio60 dB (1 kHz sine wave, 5 kHz modulation)60 dB (–60 dBV, 1 kHz sine wave input)
102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
Distortion (T.H.D)0.9% or less (1 kHz sine wave, 5 kHz modulation)0.9% or less (–60 dBV, 1 kHz input)
Audio DelayApprox. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)		Approx. 0.35 ms
Audio Output Connector / Level3.5 mm 3-pole locking mini jack, external connection
–60 dBV (3.5 mm jack, analog output, 0 dB level)
–20 dBFS (external connection, digital output, 0 dB level)
–50 dBFS (external connection, analog output, 0 dB level)		N/A
Audio Input Level / AttenuatorAnalog Adjustment Range: -12dB – +12dB (3dB step)Reference: –55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
Max: 151 dB SPL (21 dB attenuation, using supplied mic unit)
Attenuator Adjustment: 0 dB to 21 dB (3 dB steps)
Headphone Output3.5 mm diameter mini jack / Max. 10mW (16-ohm)N/A
Tone Signal FrequencyIn UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
DisplayOLED
Power RequirementsDC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
Battery LifeApprox. 6 hours
*(measured with two Sony LR6/AA alkaline batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF)		Approx. 8 hours at 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours at 10 mW (J, E, KR models)
*(measured with two Sony LR6/AA alkaline batteries at 25 °C (77 °F))
Operating Temperature0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature–20 °C to +55 °C (–4 °F to +131 °F)
Dimensions63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)ø48 x 258 mm (1 15/16 x 10 1/4 in.) (diameter / length)
MassApprox. 131 g (4.6 oz) (excluding batteries)Approx. 255 g (9.0 oz) (excluding batteries)
  • UTX-M40 UWP-D handheld transmitter
  • URX-P40 UWP-D portable receiver
  • Microphone Holder
  • Windscreen
  • Mic Clip
  • Belt Clip
  • SMAD-P4 shoemount adapter
  • 3.5mm to 3.5mm Output Cable
  • 3.5mm to XLR-M Output Cable
