Name: Sony UWP-D27 Dual Wireless Omni Lavalier Microphone
Brand: SPOTX
SKU: UWP-D27
Price: 4566.45 AED
Availability: BackOrder
Rating: 5 (1 reviews)

Sony Uwp-d21 Bodypack Wireless Microphone

Sony Uwp-d21 Bodypack Wireless Microphone Package

Sony UWP-D27 Dual Wireless Omni Lavalier Microphone

0 out of 5

( There are no reviews yet. )

4.349,00 AED ex. VAT
4.566,45 AED inc. VAT

Complete wireless bodypack package with UTX-B40 transmitter and URX-P41D 2-channel receiver.
Includes ECM-V1BMP omni-directional lavalier microphone and accessories.
NFC SYNC, IR sync and ALL BAND scan mode simplify channel setup.
True diversity reception supports stable, dropout-free audio.
Optional SMAD-P5 enables digital audio and seamless integration with compatible Sony cameras and camcorders.

SKU: UWP-D27 Categories: Audio, Microphone, Wireless Microphone System Tag: Wireless Microphone Brand: Sony

Related Products

Compare
Audio, Microphone, Wireless Microphone System
Sennheiser Dual Wireless Lavalier Microphone Set

0 out of 5
11.000,00 AED ex. VAT
11.550,00 AED inc. VAT
Pre Order Now
Quick View
Compare
Compare
Audio, Microphone, Wireless Microphone System
Sennheiser EW-DP Digital Wireless Microphone System

0 out of 5
2.200,00 AED 3.115,00 AEDPrice range: 2.200,00 AED through 3.115,00 AED ex. VAT
2.310,00 AED inc. VAT
Select options This product has multiple variants. The options may be chosen on the product page
Quick View
Compare
Compare
Audio, Microphone, Shotgun Mic
Sony ECM-673 Short Shotgun Electret Condenser Microphone

0 out of 5
829,00 AED ex. VAT
870,45 AED inc. VAT
Pre Order Now
Quick View
Compare
Compare
Audio, Microphone, Wireless Microphone System
SONY UWP-D21 Bodypack Wireless Microphone Package

0 out of 5
2.199,00 AED ex. VAT
2.308,95 AED inc. VAT
Pre Order Now
Quick View
Compare
Compare
Audio, Microphone, Wireless Microphone System

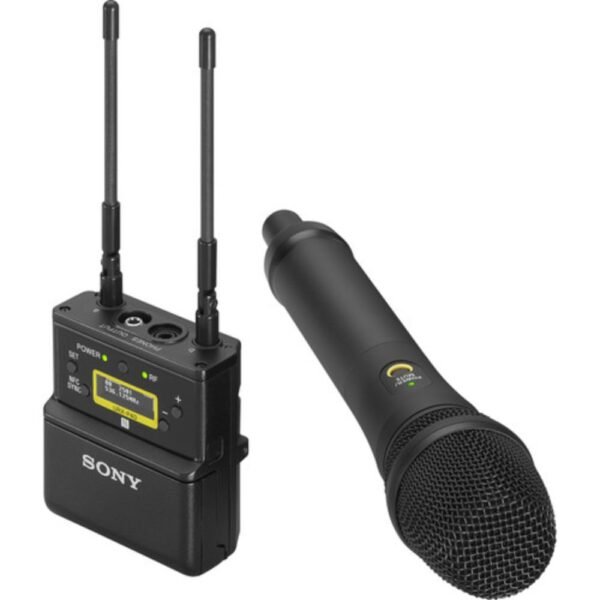

Sony UWP-D22 Handheld Wireless Microphone Package

0 out of 5
2.199,00 AED ex. VAT
2.308,95 AED inc. VAT
Pre Order Now
Quick View
Compare

Description
Specifications
In The Box
Reviews (0)

Description

UWP-D27 Wireless Audio

The Sony UWP-D27 combines a body pack transmitter, 2-channel portable receiver, lavalier microphone and accessories in one wireless audio package. The ECM-V1BMP omni-directional lavalier microphone connects to the light and compact UTX-B40 body pack transmitter. The transmitter sends audio wirelessly to the URX-P41D receiver. Quick pairing makes setup simple for on-camera interviews, live presentations and other applications that require crisp, clear sound with minimum fuss.

Flexible Frequency and Sync

The URX-P41D can scan all available frequency bands when you select ALL BAND in SCAN TYPE. Its NFC SYNC feature provides quick and secure channel pairing between the UTX-B40 transmitter and URX-P41D receiver. The receiver also supports IR sync. Select NFC or IR in SYNC MODE from the Utility menu to sync previous UTX-B03, UTX-M03 and UTX-P03 transmitter models.

Stable Audio and Output Control

Two independent receiver sections provide true diversity reception for stable, dropout-free audio. The URX-P41D also offers variable output level control of ±12dB for different input levels on camcorders and DSLR cameras. HIGH GAIN mode helps when you connect the receiver to devices that require higher gain.

High Quality Sound and Camera Integration

Advanced digital audio processing technology delivers pure, high quality sound. With the optional SMAD-P5 Multi Interface Shoe Adapter, compatible Sony cameras and camcorders can record digital audio directly while bypassing A/D and D/A conversion stages. The adapter also enables seamless integration with compatible Sony cameras and camcorders. Receiver information appears in the camera viewfinder, while audio signals route directly to the camera without a cable connection.

Light and Compact Design

The compact and lightweight URX-P41D receiver works well with handheld cameras and camcorders. Its small size and low weight support mobile audio acquisition during shooting.

Key Features:

UTX-B40 body pack transmitter with ECM-V1BMP lavalier microphone
URX-P41D 2-channel portable receiver
ALL BAND scan mode
NFC SYNC and IR sync support
True diversity reception
±12dB variable output level and HIGH GAIN mode
Advanced digital audio processing
Optional SMAD-P5 Multi Interface Shoe Adapter for Sony camera integration

Specification	UTX-B40 Bodypack Transmitter	URX-P41D Dual Channel Portable Receiver
Oscillator Type	Crystal-controlled PLL Synthesizer
Reception Type	N/A	Space diversity*
Antenna Type	1/4 λ wavelength wire antenna	1/4 λ wavelength wire antenna (angle-adjustable)
Capsule Type / Directivity	Electret condenser / Omni-directional	N/A
Carrier Frequencies	14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC / 90U : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 29CN : 638.025 MHz to 694.000 MHz (UHF-TV channels 29 to 35) BJ : 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz (UTX-B40) / 925.125 MHz to 937.375 MHz (URX-P41D)
RF Output Power	30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models)	N/A
Frequency Response	23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model)	23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models) 40 Hz to 15 kHz (typical) (J model)
Signal-to-Noise Ratio	60 dB (–60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.)	60 dB (1 kHz sine wave, 5 kHz modulation) 96 dB (max deviation, A-weighted)
Distortion (T.H.D)	0.9% or less (–60 dBV, 1 kHz input)	0.9% or less (1 kHz sine wave, 5kHz modulation)
Audio Delay	Approx. 0.35 ms	Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output)
Audio Input / Adjustment	Connector: 3.5 mm 3-pole locking mini jack Reference Level: –60 dBV (MIC input, NORMAL, 0 dB) / +4 dBu (LINE input) Attenuator: 0 dB to 27 dB (3 dB steps)	Connector: 3.5 mm 3-pole locking mini jack (unbalanced) Input Level: -50dBV (±12dB Adjustable, 3-dB step)
Audio Output / Adjustment	N/A	Connector: 3.5mm 3-pole locking mini jack (balanced), External connection Level: –60 dBV (3.5mm mini jack) / –20 dBFS (ext. digital) / –50 dBV (ext. analog) Adjustment Range: -12dB to +12dB (3dB step)
Headphone Output	N/A	3.5mm diameter mini jack / Max. 10 mW (16-ohm)
Tone Signal Frequency	In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz
Display	OLED
Power Requirements	DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
Battery Life	Approx. 8 hours at 30 mW (UC, U, CE, LA, CN models) Approx. 10 hours at 10 mW (J, E, KR models) *(measured with two Sony LR6/AA alkaline batteries at 25 °C / 77 °F)	Approx. 4.5 hours *(measured with two AA alkaline batteries at 25 °C / 77 °F, DISPLAY MODE set to AUTO OFF)
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature	-20 °C to +55 °C (–4 °F to +131 °F)
Dimensions	63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)	63 × 70 × 35 mm (2 1/2 × 2 7/8 × 1 7/16 in.) (W / H / D) (excluding antenna)
Mass	Approx. 83 g (2.9 oz) (excluding batteries)	Approx. 159 g (5.6 oz) (excluding batteries)

2X UTX-B40 UWP-D bodypack transmitter
URX-P41 UWP-D portable dual receiver
2X ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
2X Windscreen
2X Mic Clip
3X Belt Clip
SMAD-P4 shoemount adapter
3.5mm to 3.5mm Output Cable
2X 3.5mm to XLR-M Output Cable
