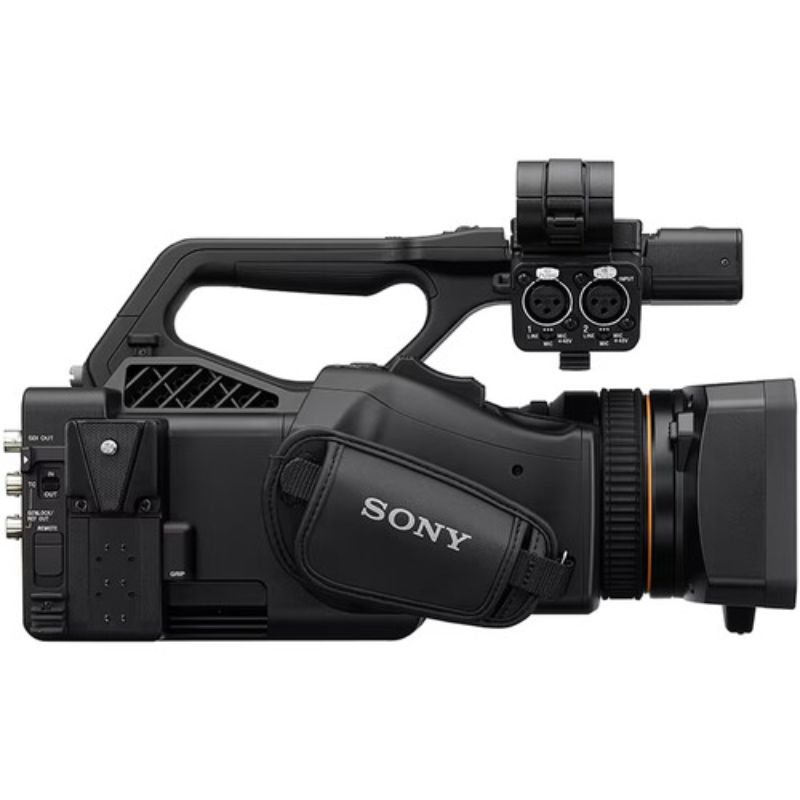

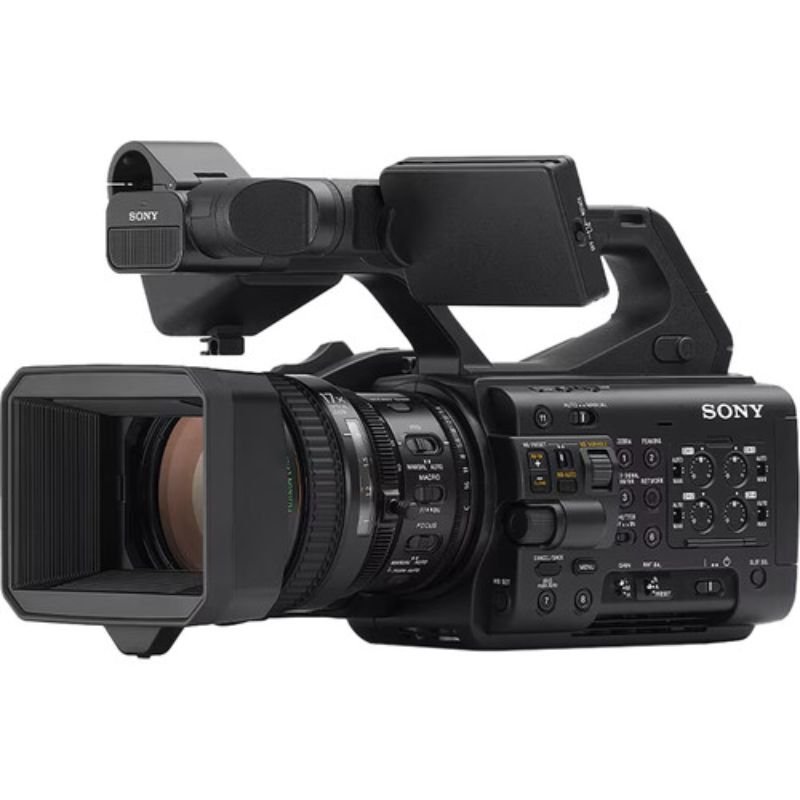

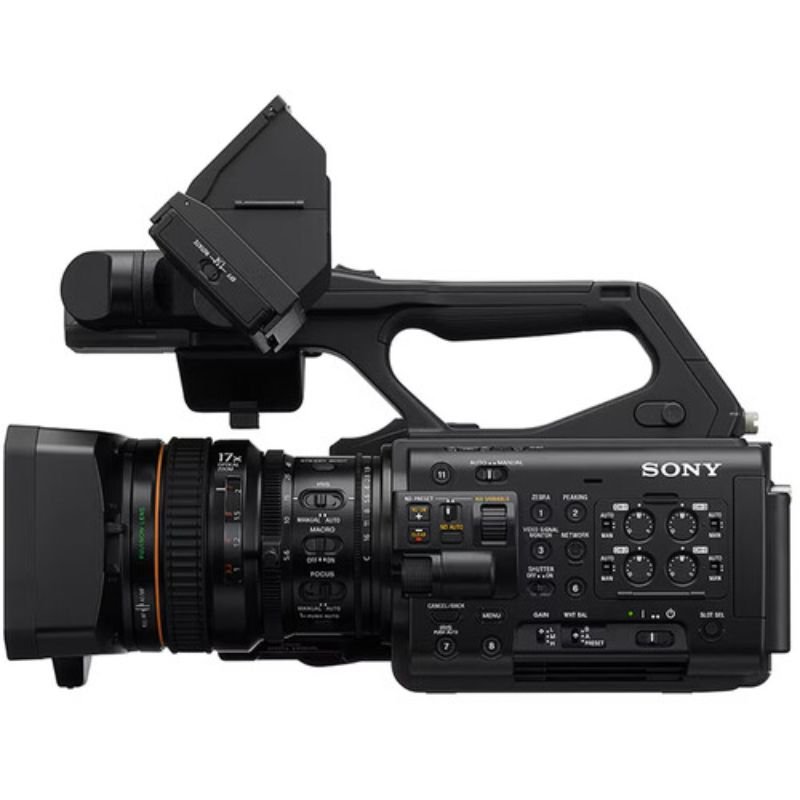

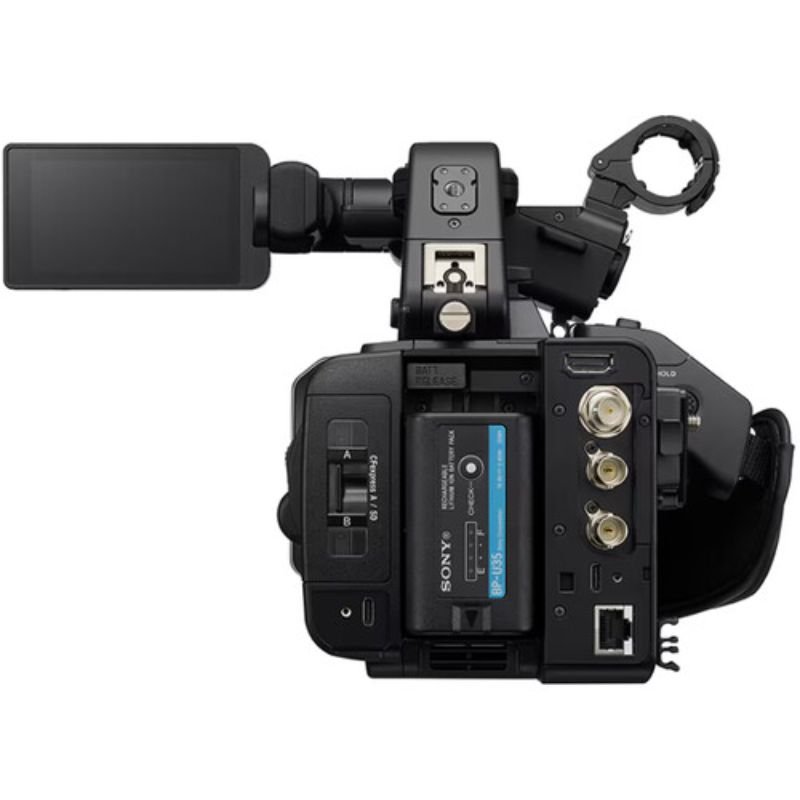

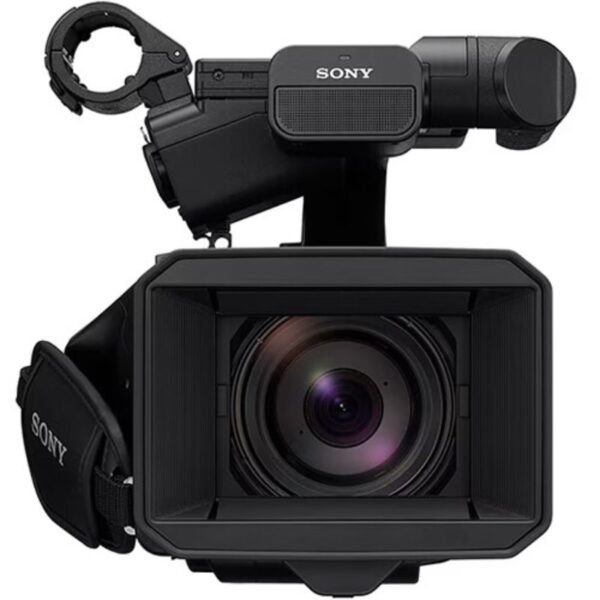

Sony PXW-Z300 4K XDCAM Camcorder

The PXW-Z300 showcases advanced Sony digital imaging technologies, including three 1/2-type 4K Exmor R CMOS image sensors with the power-packed BIONZ XR image processing engine, and the AI Processing Unit that enhances high-performance shooting at 4K60p with Subject Recognition AF.

Advanced 4K Imaging Performance

The Sony PXW-Z300 integrates three 1/2-type 4K Exmor R CMOS sensors with the BIONZ XR image processing engine for detailed 4K60p acquisition. Full-pixel readout captures fine textures and accurate colour reproduction while maintaining low noise performance. Furthermore, the camera supports high-sensitivity shooting with wide dynamic range in both 4K and Full HD modes.

AI-Assisted Subject Recognition

The dedicated AI Processing Unit improves autofocus precision by recognising human posture, anatomical structure, and subject orientation. Consequently, the camera can track subjects even when faces are partially obscured, backlit, or positioned at difficult angles. Auto composition functions also help maintain centred framing during moving shots.

Professional Lens Control

The integrated 17x optical zoom lens covers a 30.3 – 515 mm full-frame equivalent range with a constant F1.9 aperture. Independent focus, zoom, and iris rings provide direct tactile control during operation. In addition, the digital extender increases magnification up to 1.5x in 4K and 4x in HD recording modes.

Reliable Handheld Operation

The lens-shift image stabilisation mechanism minimises blur caused by handheld movement. The flexible LCD arm allows multiple viewing positions for shoulder-mounted or chest-supported shooting styles. Moreover, the 3.5-type Mini LED LCD monitor with approximately 2.76 million dots maintains visibility in bright outdoor environments.

Flexible Recording and Media Support

The PXW-Z300 records using XAVC Intra, XAVC Long, and MPEG HD422 codecs. Dual media slots support SDXC UHS-I/UHS-II and CFexpress Type A cards for simultaneous recording, proxy capture, or relay recording. Additionally, the camera supports Slow & Quick Motion recording and network-based file transfer workflows.

Professional Connectivity and Audio

Comprehensive interfaces include 12G-SDI, 6G-SDI, 3G-SDI, HDMI Type-A, USB Type-C, wired LAN, Genlock, and timecode input/output connections. Four-channel LPCM audio recording is supported through dual XLR inputs and the Multi Interface Shoe. Wireless monitoring and remote operation are also available through built-in dual-band Wi-Fi connectivity.

Power and Durability

The camcorder supports BP-U35, BP-U70, and BP-U100 batteries while also enabling USB Power Delivery operation through the USB Type-C interface. A dust-proof and moisture-proof body design improves reliability in demanding production environments. Furthermore, the internal cooling fan system helps maintain stable operating temperatures during extended shooting sessions.

Key Features

• Three 1/2-type 4K Exmor R CMOS image sensors
• BIONZ XR image processing engine
• Dedicated AI Processing Unit with Subject Recognition AF
• 4K60p recording capability
• 17x optical zoom lens with F1.9 aperture
• 30.3 – 515 mm full-frame equivalent focal range
• Electronic Variable ND filter from 1/4 ND to 1/128 ND
• Dual SDXC and CFexpress Type A card slots
• 12G-SDI and HDMI simultaneous output
• 4-channel LPCM audio recording
• Built-in Wi-Fi and Bluetooth 5.0 connectivity
• USB Power Delivery support
• 3.5-type Mini LED LCD monitor with 2.76 million dots
• Lens-shift image stabilisation
• Dust-proof and moisture-proof construction
