SWIT 8×100W Ultra Fast V-Mount Wall Charger

0 out of 5
( There are no reviews yet. )

7.340,00 AED ex. VAT
7.707,00 AED inc. VAT

  • 8-channel simultaneous V-mount wall charger with 100W charging per channel
  • Supports both 14.4V and 28.8V batteries
  • Can reduce charging time by up to 60% compared with normal chargers
  • Two 3.5-inch color LCDs display charging progress, current, voltage, and battery cycle time
  • Flexible mounting for walls, 19-inch racks, storage racks, and DIT carts
SKU: MATRIX-S8 Categories: , , Tag: Brand: SWIT
International Orders: Shipping cost depends on your country and order weight. Please contact us to complete your order.

This Product For Pre Order Only, Delivery Time 3-4 Weeks

Related Products

Description

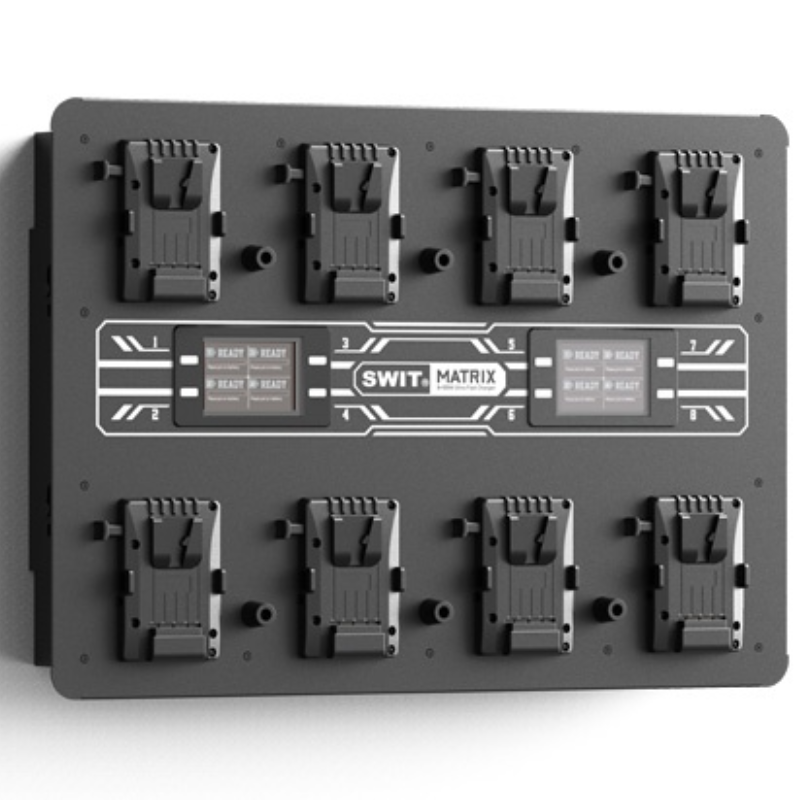

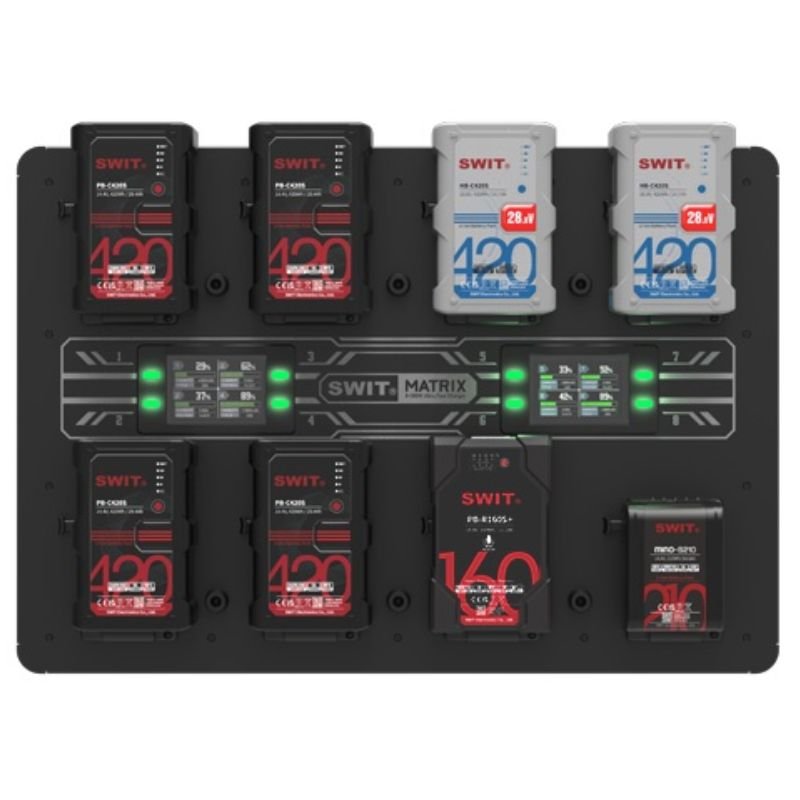

MATRIX-S8 V-Mount Charger

The SWIT MATRIX-S8 is an 8-channel V-mount wall charger designed to charge up to eight batteries at the same time. Each channel delivers 100W ultra-fast charging, which can reduce charging time by up to 60% compared with normal chargers. It supports both 14.4V and 28.8V batteries, making it suitable for installation in TV stations and rental houses.

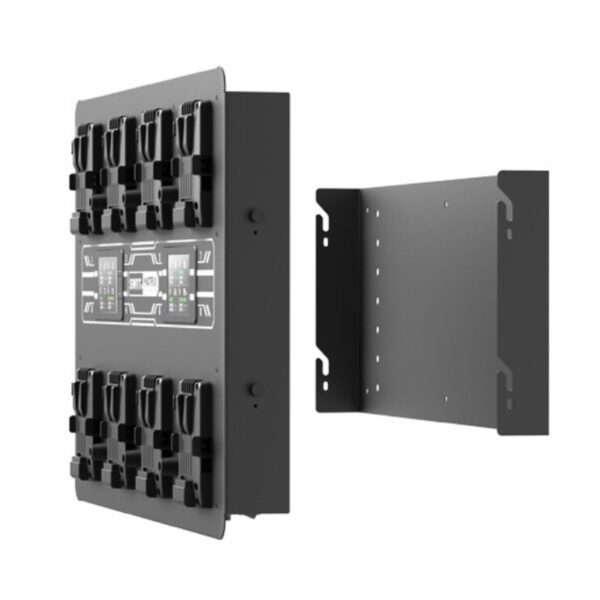

Flexible Wall Mounting

The MATRIX-S8 includes a wall mounting plate on the rear. You can screw it directly onto a wall or mount it to a standard 19-inch rack bracket. The mounting plate can also be installed on a storage rack or DIT cart for flexible workspace setups.

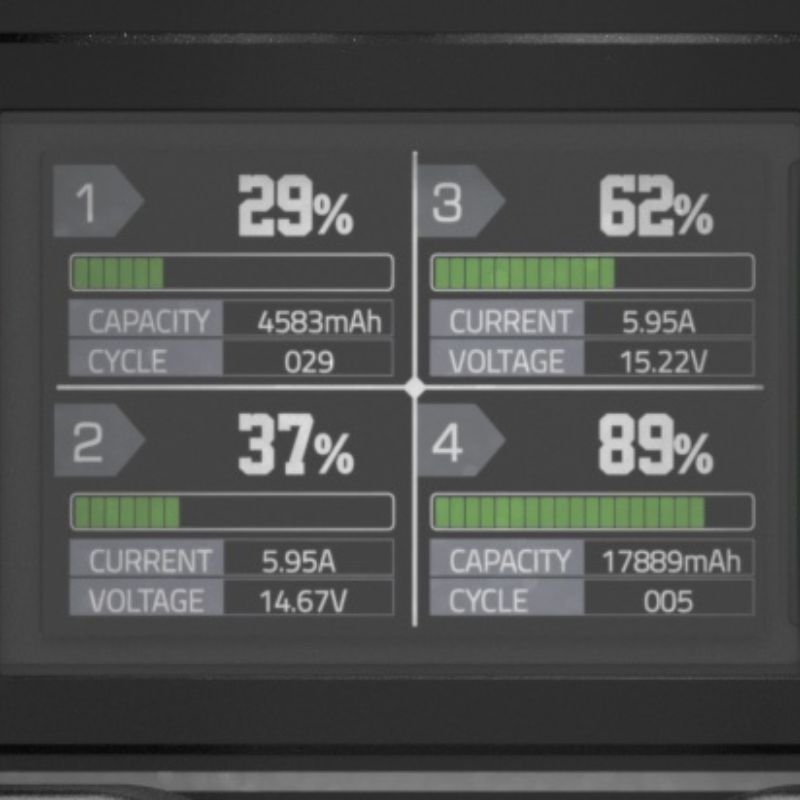

Color LCD Displays

Two 3.5-inch color LCD screens show the charging progress for each channel. The displays provide charging current, voltage, and battery cycle time information. Large charging indicators also let you check the charging status easily from a distance.

Key Features

  • 8-channel simultaneous V-mount charging
  • 100W ultra-fast charging per channel
  • Can reduce charging time by up to 60%
  • Supports 14.4V and 28.8V batteries
  • Rear wall mounting plate included
  • Compatible with standard 19-inch rack brackets
  • Two 3.5-inch color LCD displays
  • Large charging indicators for viewing from a distance

Technical Specifications
Key Features
Charging Capability8-channel simultaneous fast charging
Power & Electrical Performance
Power ConsumptionMax 900W
Input VoltageAC 100V–240V, 50/60Hz
Charging OutputSWIT 14.4V (≥160Wh) Batteries: DC 16.8V, 6A, 100W × 8
SWIT 28.8V (≥160Wh) Batteries: DC 33.6V, 3A, 100W × 8
Other Batteries: DC 16.8V, 3A, 50W × 8
Battery Compatibility
Applicable Battery MountV-mount battery
Physical & Packaging Specifications
Product Dimensions630 × 436 × 89 mm (Without Packaging)
Package Dimensions745 × 159 × 559 mm
Net Weight10.6 kg (Without Packaging)
Gross Weight15.5 kg (With Packaging)
