Description

90Wh Battery Pack

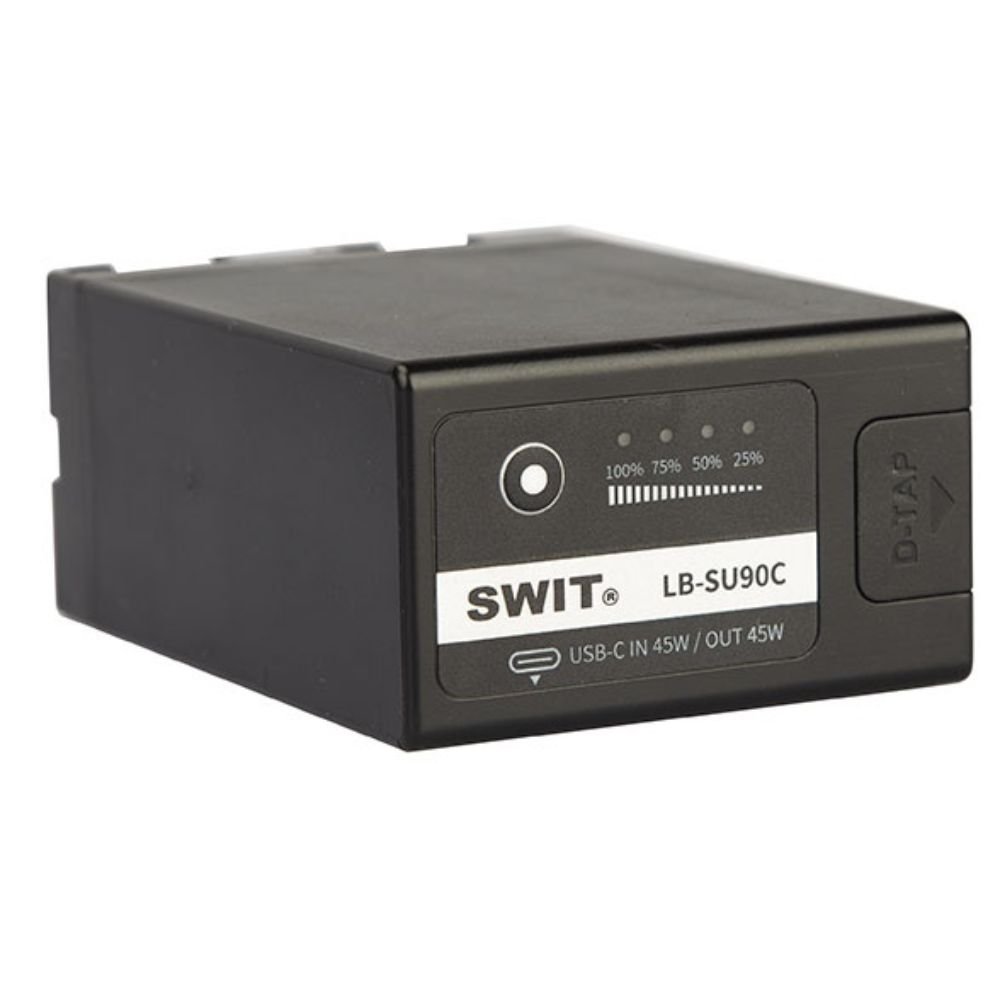

The SWIT LB-SU90C provides reliable power for professional cameras and production equipment. It combines a 90Wh capacity with D-tap and USB-C connectivity. As a result, it supports both camera operation and accessory power from a single battery solution.

Extended Operating Time

The LB-SU90C uses eight battery cells and delivers 90Wh (6200mAh) of capacity at a 14.4V nominal voltage. Therefore, it helps support longer recording sessions and demanding production environments. In addition, the battery handles up to 70W / 6A constant power load for compatible equipment.

Versatile Power Connections

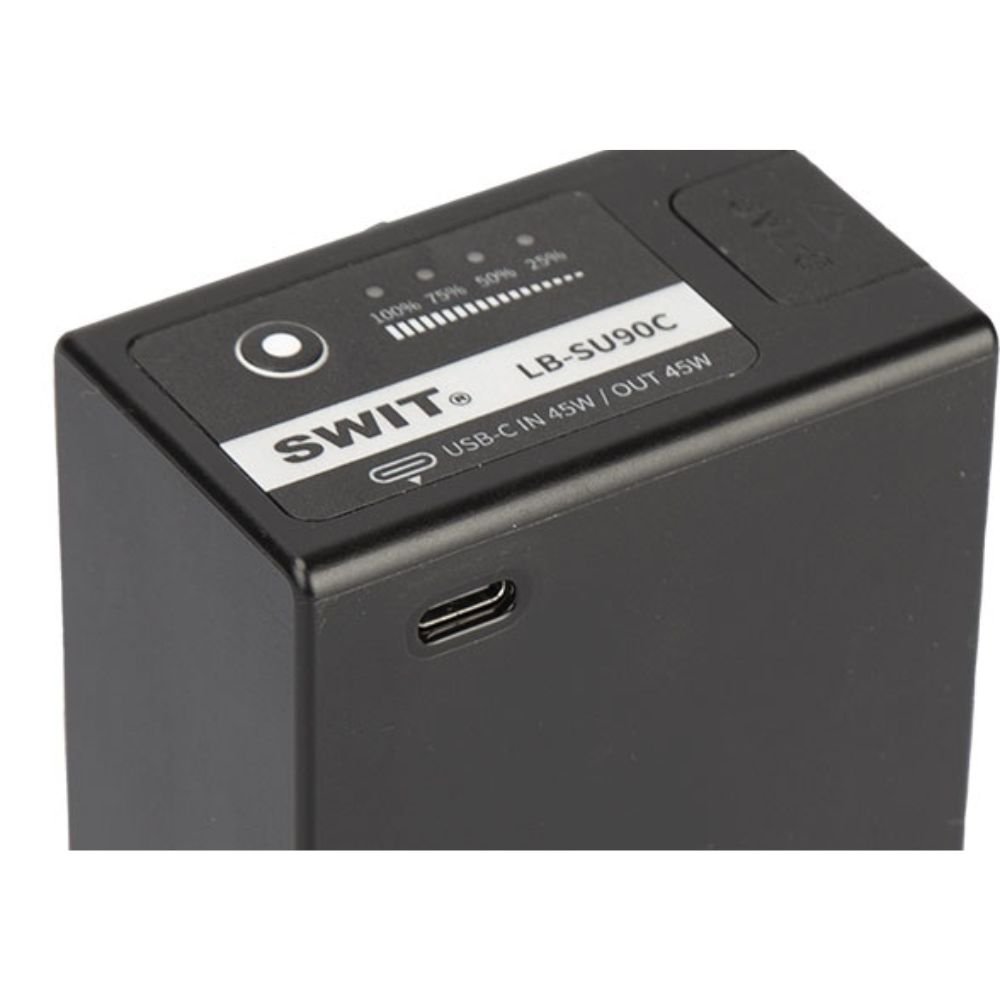

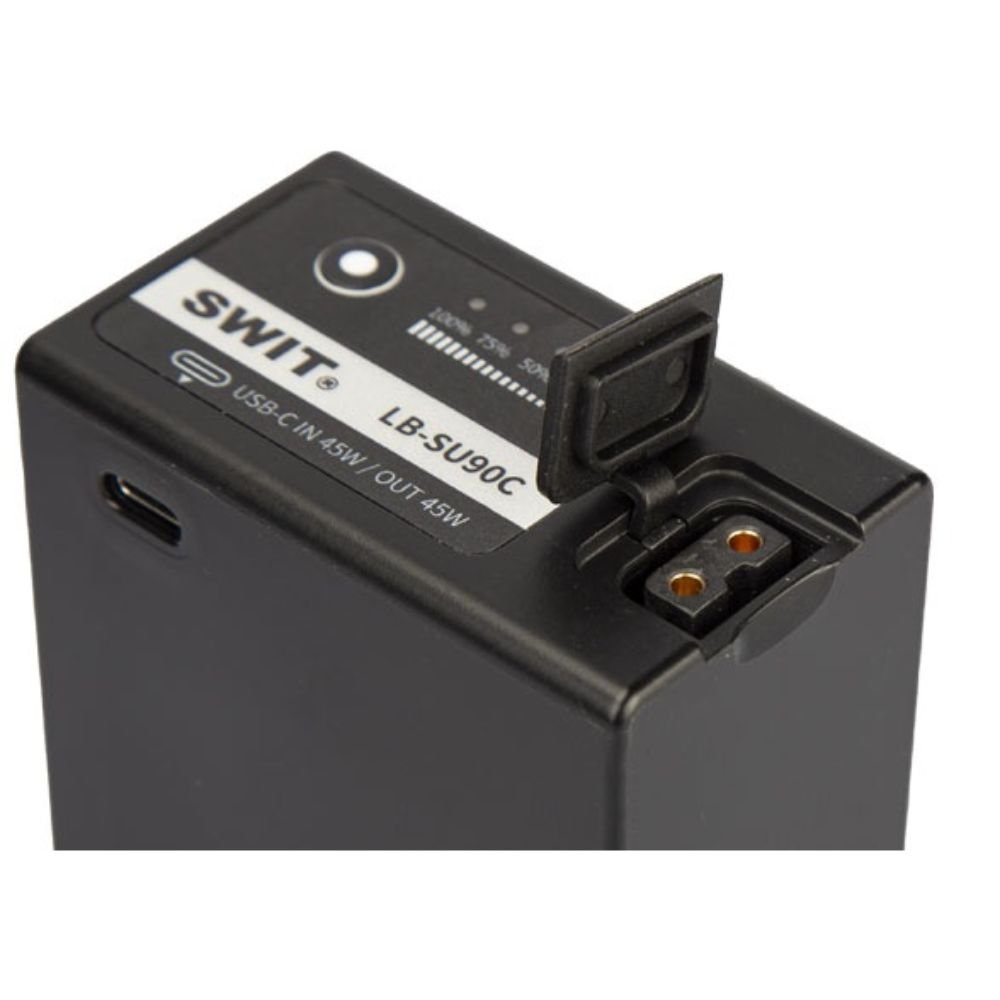

The integrated D-tap socket provides 11V to 16.8V power output for a wide range of video accessories. Meanwhile, the USB-C port delivers up to 45W output for laptops, tablets, and smartphones. Additionally, the same USB-C port accepts up to 45W input, which allows the battery to recharge in approximately three hours.

Key Features

• 90Wh / 6200mAh battery capacity.
• 14.4V nominal voltage.
• 70W / 6A constant power load.
• D-tap output with 11V to 16.8V voltage range.
• 45W USB-C power output.
• 45W USB-C charging input.
• Supports multiple USB-C charging protocols.
• 4-level LED power indicator.
